Fusion Splicer INNO IFS-15S (open box)
id: 917427
Fusion Splicer INNO IFS-15S (open box)
Overview
Description
Delivery
Payment
Warranty
USD 2190.00
Overview
7 kg
Availability in stock:
HK
Core-alignment fusion splicer is compatible with a wide range of cables which are popular in FTTx. Splicing time: 7 s. Heating time: 35 s. Read more
USD 2190.00
Description

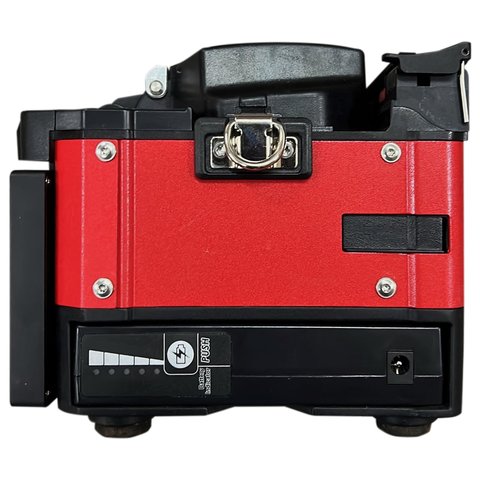

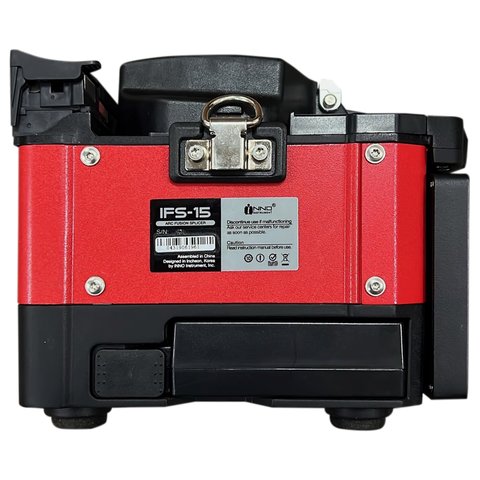

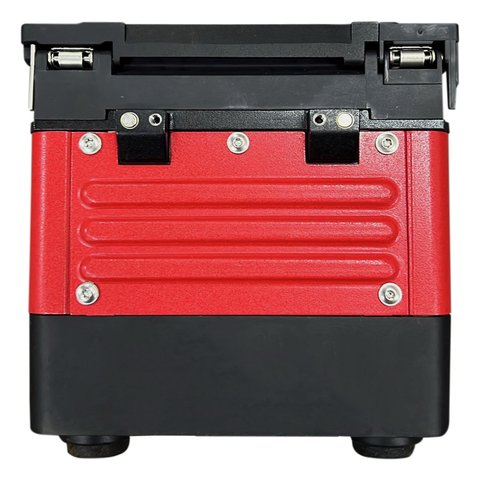

INNO IFS-15S is a core-alignment fusion splicer with the new Digital Analysis Core Alignment System (DACAS). This is one of the most dependable splicer on the market. The IFS-15S is compatible with being widely used fibers and cables. It combines the function of both splicing and heating for those cables which are popular in FTTx: 250 μm fiber, 900 μm fiber, flat cable, and fiber jumper.
The IFS-15S has a friendly, intuitive GUI (Graphical User Interface) with a 4.3 inch high-resolution color LCD screen that is easy to see and use. With a compact size of the fusion splicer, it brings much more convenience for customers who works in the telecommunication field.
Features
- Graphical user-friendly interface
- Compact size, weight 1.82 kg (without battery)
- High and effective fusion precision
- USB port - easy to upgrade software
- Digital Analysis Core Alignment System
- Universal replaceable fiber holder
- Optimized menu
Video
Technical Specifications
| Splicing / Heating | |
|---|---|
| Typical Splicing Time | 7 s (SM quick mode) |
| Typical Heating Time | 35 s |
| Applicable Fibers | SM (ITU-TG.652) / MM (ITU-TG.651) / DS (ITU-TG.653) / NZDS (ITU-TG.655) / ITU-TG.657A / ITU-TG.657B |
| Coverage Diameter | 100 ~ 1000 μm |
| Diametr of Spliced Fiber | 0.25 mm / 0.9 mm / 2.0 mm / 2.4 mm / 3.0 mm / Plume |
| Fiber Cleave Length | 8 ~ 16 mm (coverage up to 250-1000 μm) |
| Typical Average Splice Loss | SM: 0.02 dB / MM: 0.01 dB / DS: 0.04 dB / NZDS: 0.04 dB / G.657: 0,02 dB (ITU-T Standard) |
| Losses Estimation | Yes |
| Return Losses | >> 60 dB |
| Loss function | 0,1 dB -20 dB (0,1 dB st.) |
| Splice Loss Estimate | core, clad, manual, pre-set attenuation (0 - 20 dB) |
| Fiber Types Detection | SM, MM, DS, NZDS |
| Compatible Protection Sleeves | 10/20/30/40/50/60 mm |
| Splicing Modes | Maximum 64, pre-set 24 |
| Heating Modes | 32 |
| Fiber Holder Type | Standard replacement |
| Internal Memory | 100 splice results |
| Additional Options | |
| Mechanical Proof Test | Yes, 0.96 - 2.25 N (standard) |
| Electrodes lifetime | 2500 cycles |
| External Interfaces | USB 2.0/RS232 |
| Software update | Yes |
| Data Display | |
| Screen Type | LCD |
| Screen Size | 4,3" |
| Colour | Yes |
| Viewing | 2 cameras |
| Magnification | 300x |
| Surface Protection | Impact resistant glass |
| Power Supply | |
| Battery Life | 157 cycles, battery capacity: 4200 mAH |
| Supply Voltage |
DC 18 V |
| Technology | Lithium-ion |
| Operation Conditions | |
| Temperature | -10 ~ +50 °C |
| Altitude above sea level | 0-5000 m |
| RH | 0-95% |
| Storage Conditions | |
| Temperature | –40 ~ +80 °C, battery: -20 ~ +30°C |
| Dimensions & Weight | |
| Dimensions | 155 × 130 × 137 mm |
| Weight | 1.82 kg, without battery |
| Body color | Rose Red |

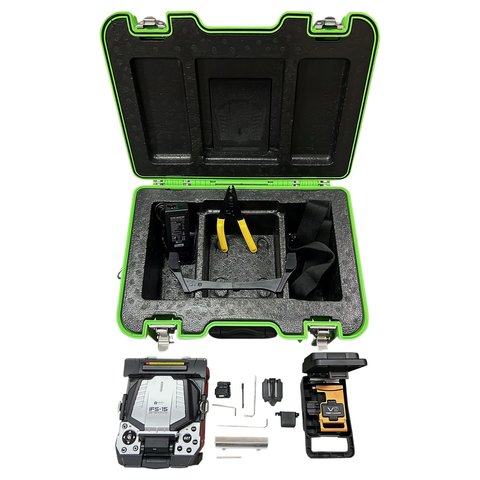

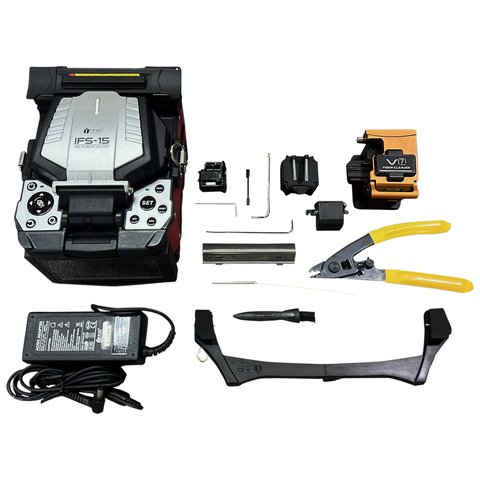

Package Contents
- Fusion Splicer INNO IFS-15S — 1 pc.
- Cleaver Inno VF-15H — 1 pc.
- Rechargeable Li-ion Battery LBT-40 — 1 pc.
- Power supply / Charger — 1 pc.
- Data cable — 1 pc.
- Power cord for connection to a car cigarette lighter — 1 pc.
- Equipment Cord — 1 pc.
- Replacement electrodes (a pair) — 1 pc.
- CD software — 1 pc.
- Shoulder strap — 1 pc.
- Sleeves box — 1 pc.

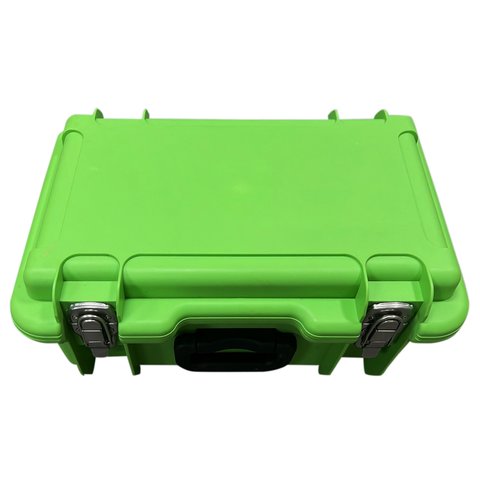

- Transport case — 1 pc.
