Fusion Splicer INNO Instrument View 3
Overview
Description
Delivery
Payment
Warranty
Discontinued
Overview

Made in Korea
15 kg 110, 220 V Warranty: 24 months
Active V-Groove clad alignment fusion splicer for SM, MM, DS, NZDS optical fibers. Splice time: quick mode - 7 sec / auto mode - 9 sec, heating time: 30 sec. 5-inch high-resolution color LCD touch screen. Read more
Discontinued
Description

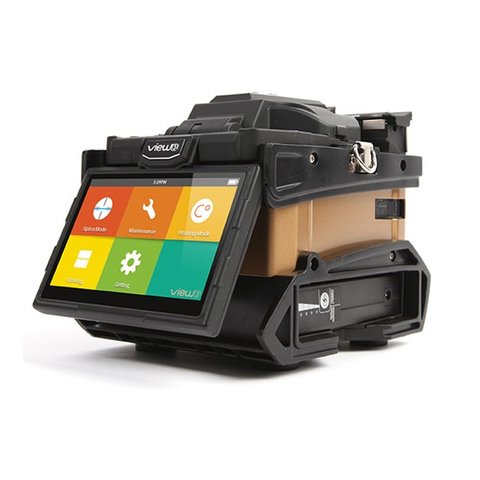

INNO Instrument View 3 is an active V-Groove clad alignment digital fusion splicer with 9 seconds splicing time (auto mode), 30 seconds tube heating time designed for splicing SM, MM, NZDS optical fibers.
The INNO Instrument View 3 kit includes all the necessary accessories: high precision fiber cleaver, electrodes and many more items in a carrying case.
Features
- Active V-Groove clad alignment splicing method.
- The world’s highest magnification and resolution.
- 5-inch high-resolution color LCD touch screen.
- Detachable SOC holder and heating oven.
- High capacity battery.
- Ceramic clamp for improved durability.
- Easy to replace electrodes.
- Increased water, dust and shock resistance, may be used under severe environment conditions.
Technical Specifications
Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
Average Splice Loss | SM:0.03 dB / MM:0.02 dB / DS:0.05 dB / NZDS:0.05 dB/G.657:0.03 dB(ITU-T Standard) |
Return Loss | ≥ 60 dB |
Tension Test | 1.96 ~ 2.25 N |
Splicing Modes | max 128 modes |
Protection Sleeve Length | 20 ~ 60 mm |
Battery | 170 splice & heat cycles |
Electrodes Lifetime | 3500 times, can be extended by using an electrode grinder |
Environmental Conditions | |
---|---|
Operation Temperature | -10 ~ 50 °C |
Relative Humidity | 0.95% |
Altitude | 0 ~ 5000 m |
Power Supply | |
Adaptor | AC input 100-240 V, DC input 9-14 V |
Battery | 4200 mAh |
Mechanical | |
Dimensions (h × w × d) | 143 × 130 × 155 mm |
Weight | 2.31 kg (with battery) |
Additional Information
Download INNO View 3 User Manual.
Download INNO View 3 Data Sheet.
Package Contents
- INNO Instrument View 3 Fusion Splicer — 1 pc.
- V7 High Precision Fiber Cleaver — 1 pc.
- VFH-40 Fiber Holder — 1 pc.
- JS-180300 AC Adapter — 1 pc.
- LBT-40 Battery Pack — 1 pc.
- CG-22 Cooling Tray — 1 pc.
- E-27 Electrodes — 1 pair
- VF-77-01 Wrench — 1 pc.
- Instruction CD — 1 pc.
- ACC-25 Power Cable — 1 pc.
- CFS-2 Fiber Stripper — 1 pc.
- NBX-45-01 Carrying Belt — 1 pc.
- NBX-35 Carrying Case — 1 pc.
