Fusion Splicer INNO Instrument View 7

id: 861875
Fusion Splicer INNO Instrument View 7
Overview
Description
Delivery
Payment
Warranty
USD 3789.00

Overview

Made in Korea
5 (1)
15 kg 110, 220 V
Availability in stock: HK
Warranty: 24 months
Core-to-core alignment fusion splicer for SM, MM, DS, NZDS optical fibers. Splice time: quick mode - 7 sec / auto mode - 8 sec, heating time: 13 sec. Ultra-high capacity battery. Read more
USD 3789.00
USD 3789.00
Impossible to estimate the shipping cost
Note! This item is shipped within 10 working days.

Description

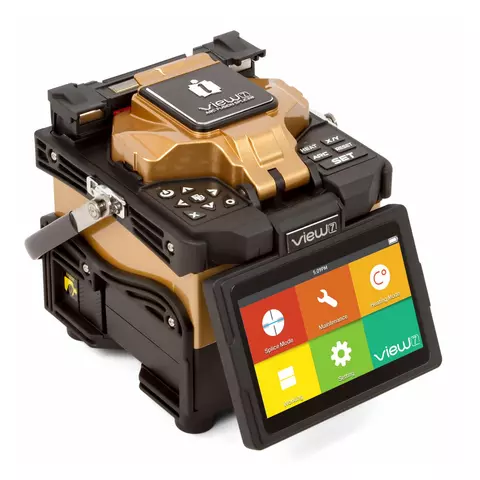

INNO Instrument View 7 is a core-to-core alignment digital fusion splicer with 8 seconds splicing time (auto mode), 13 seconds tube heating time designed for splicing SM, MM, NZDS optical fibers.

The INNO Instrument View 7 kit includes all the necessary accessories: high capacity battery, high precision fiber cleaver, electrode and many more items in a carrying case.

Features

  • Core alignment splicing method with DACAS (Digital Analysis Core Alignment System).
  • The world’s highest magnification and resolution.
  • 5-inch high-resolution color LCD touch screen.
  • Ultra-high capacity battery.
  • Fast heating time.
  • Detachable SOC holder and heating oven.
  • Ceramic clamp for improved durability.
  • Easy to replace electrodes.
  • Protective rubberized cover
  • Increased water, dust and shock resistance, may be used under severe environment conditions.

Technical Specifications

Applicable Fibers SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Average Splice Loss SM:0.02 dB / MM:0.01 dB / DS:0.04 dB / NZDS:0.04 dB/G.657:0.02 dB(ITU-T Standard)
Return Loss ≥ 60 dB
Tension Test 1.96 ~ 2.25 N
Splicing Modes max 128 modes
Protection Sleeve Length 20 ~ 60 mm
Battery 355 splice & heat cycles
Electrodes Lifetime 3500 times, can be extended by using an electrode grinder
Environmental Conditions
Operation Temperature -10 ~ 50 °C
Relative Humidity 0.95%
Altitude 0 ~ 5000 m
Power Supply
Adaptor AC input 100-240 V, DC input 9-14 V
Battery 9800 mAh
Mechanical
Dimensions (h × w × d) 160 mm × 133 mm × 155 mm
Weight 2.80 kg (with battery)

Additional Information

Download INNO View 7 User Manual.

Download INNO View 7 Data Sheet.

Package Contents

  • INNO Instrument View 7 Fusion Splicer — 1 pc.
  • V7 High Precision Fiber Cleaver — 1 pc.
  • VFH-10 / VFH-40 Fiber Holder — 1 pc.
  • JS-180300 AC Adapter — 1 pc.
  • CG-22 Cooling Tray — 1 pc.
  • E-27 Electrodes — 1 pair
  • Instruction CD — 1 pc.
  • LBT-20 Battery Pack — 1 pc.
  • ACC-25 Power Cable — 1 pc.
  • CFS-2 Fiber Stripper — 1 pc.
  • NBX-35 Carrying Case — 1 pc.
