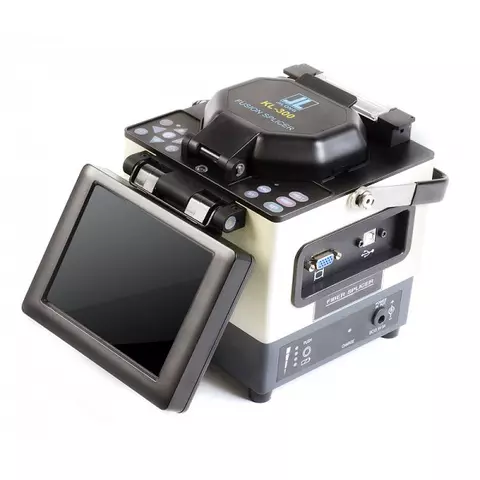

Fusion Splicer Jilong KL-300

id: 832710
Fusion Splicer Jilong KL-300
Overview
Description
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
7 kg 110, 220 V Warranty: 12 months
Latest model in the Nanjing Jilong line of fusion splicers, which can work with any type of fiber-optic communication lines. More reliable, lighter, and simple to operate.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Fusion Splicer DVP 740
Add to wishlist
Fusion Splicer DVP-740
USD 999.00
USD 899.00
Add to wishlist
Add to cart
Core-to-core alignment system fusion splicer for SM, MM, DS, NZDS(G655), EDF and other fibers. Splicing time: 8 s, heating time: 35 s.
Availability in stock: HK
Shipping cost
ID: 861732 10 kg 110, 220
Description

Jilong KL-300 is the latest model in the Nanjing Jilong line of fusion splicers, which can work with any type of fiber-optic communication lines. This Jilong KL-300 fusion splicer have an automatic focus and advanced automatic core alignment (PAS) functions.

Jilong KL-300 Fusion Splicer Features

  • Core to core alignment by PAS technology (PAS: Profile Alignment System)
  • Both X and Y axis display
  • 5.6 inch color LCD monitor
  • Automatic end-face of fiber check
  • Automatic splicing loss calculation
  • Automatic fusion program selection
  • USB and VGA interface
  • Software updates via USB interface

Jilong KL-260C Fusion Splicer Technical Specifications

Applicable fibers
  • SM (ITU-T G.652)
  • MM (ITU-T G.651)
  • DS (ITU-T G.653)
  • NZDS (ITU-T G.655)
Coating diameter 100 - 1000 µm
Cleave length 8 ~ 16 mm (coating diameter: 250 µm)
Average splice loss
  • SM: typ. 0.02 dB
  • MM: typ. 0.01 dB
  • DS: typ. 0.04 dB
  • NZDS: typ. 0.04 dB
Return loss ≥ 60 dB
Average splice time typ. 9 seconds
Protection sleeve length 40 mm, 60 mm
Battery / charger AC: 100-220 V, 50/60 Hz, 30 W / inner Li-battery (8000 mAh)
Tube heating time typ. 30 sec
Splicing programs SM, MM, DS, NZDS
Storage of splice results 4000 splice results in the internal memory
Interface USB 1.1 and VGA
Display 5.6 inch LCD
Operation conditions -10 ~ 50 °C (temperature), 0 ~ 95% (humidity), 0 ~ 5000 m (altitude)
Storage environment -40 ~ 60 °C (temperature), 0 ~ 95% (humidity)
Dimensions 150 × 150 × 150 mm
Weight 3.2 kg

Jilong KL-300 Fusion Splicer Packaging

  • Jilong KL-300 fusion splicer (1 pc.)
  • Power adaptor (1 pc.)
  • AC power cord (1 pc.)
  • Battery (1 pc.)
  • Precision fiber cleaver (1 pc.)
  • Spare electrode (1 pair)
  • Carrying case (1 pc.)
  • Instruction manual (1 pc.)
  • Tray (1 pc.)
  • Clauss CFS-2 stripper (1 pc.)
  • Shoulder strap for carrying case (1 pc.)
Read more
Description

Jilong KL-300 is the latest model in the Nanjing Jilong line of fusion splicers, which can work with any type of fiber-optic communication lines. This Jilong KL-300 fusion splicer have an automatic focus and advanced automatic core alignment (PAS) functions.

Jilong KL-300 Fusion Splicer Features

  • Core to core alignment by PAS technology (PAS: Profile Alignment System)
  • Both X and Y axis display
  • 5.6 inch color LCD monitor
  • Automatic end-face of fiber check
  • Automatic splicing loss calculation
  • Automatic fusion program selection
  • USB and VGA interface
  • Software updates via USB interface

Jilong KL-260C Fusion Splicer Technical Specifications

Applicable fibers
  • SM (ITU-T G.652)
  • MM (ITU-T G.651)
  • DS (ITU-T G.653)
  • NZDS (ITU-T G.655)
Coating diameter 100 - 1000 µm
Cleave length 8 ~ 16 mm (coating diameter: 250 µm)
Average splice loss
  • SM: typ. 0.02 dB
  • MM: typ. 0.01 dB
  • DS: typ. 0.04 dB
  • NZDS: typ. 0.04 dB
Return loss ≥ 60 dB
Average splice time typ. 9 seconds
Protection sleeve length 40 mm, 60 mm
Battery / charger AC: 100-220 V, 50/60 Hz, 30 W / inner Li-battery (8000 mAh)
Tube heating time typ. 30 sec
Splicing programs SM, MM, DS, NZDS
Storage of splice results 4000 splice results in the internal memory
Interface USB 1.1 and VGA
Display 5.6 inch LCD
Operation conditions -10 ~ 50 °C (temperature), 0 ~ 95% (humidity), 0 ~ 5000 m (altitude)
Storage environment -40 ~ 60 °C (temperature), 0 ~ 95% (humidity)
Dimensions 150 × 150 × 150 mm
Weight 3.2 kg

Jilong KL-300 Fusion Splicer Packaging

  • Jilong KL-300 fusion splicer (1 pc.)
  • Power adaptor (1 pc.)
  • AC power cord (1 pc.)
  • Battery (1 pc.)
  • Precision fiber cleaver (1 pc.)
  • Spare electrode (1 pair)
  • Carrying case (1 pc.)
  • Instruction manual (1 pc.)
  • Tray (1 pc.)
  • Clauss CFS-2 stripper (1 pc.)
  • Shoulder strap for carrying case (1 pc.)
