Fusion Splicer Jilong KL-350E
id: 866953
Fusion Splicer Jilong KL-350E
Overview
Description
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
12 kg 110, 220 V Warranty: 12 months
Automatic fusion splicer for optic fiber splicing with core or cladding fiber alignment. Splicing time: 9 s, heating time: 30 s. Read more
Discontinued
Description

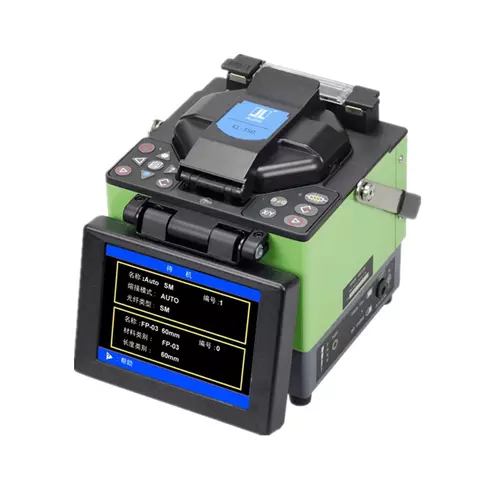

Jilong KL-350E Fusion Splicer is an automatic fusion splicer with core or cladding fiber alignment. The device is capable of splicing a fiber in 9 seconds and heating a splice sleeve in 30 seconds. Jilong KL-350E is characterized by an automatic splicing program selection function and automatic quality check.
5.6-inch color LCD monitor with clear digital image displaying ensures easy and comfortable operation with Jilong KL-350E. Splicing area viewing is ensured by single view and simultaneous view option for X or Y axes.
The package includes KL-21B High Precision Fiber Cleaver.
Features
- Core/cladding fiber alignment technique.
- Clear fiber core displaying.
- Applicable fibers: Single-mode, Multi-mode, Dispersion-shifted, Non-zero dispersion-shifted.
- Splicing time: 9 seconds.
- Heating time: 30 seconds.
- Single view & simultaneous view of X or Y axes.
- Auto splicing program selection.
- Auto quality check.
- 5.6-inch color LCD monitor with clear digital image displaying.
- Compact and lightweight.
- Easy to use operation menu.
- Software upgrade via USB interface.
- KL-21B High Precision Fiber Cleaver included.
Technical Specifications
| Splicing | |
|---|---|
| Applicable fibers | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
| Fiber cleaved length | 8 ~ 16 mm (coating diameter: 250 µm) |
| Fiber diameter | Cladding diameter: 80 ~ 150 µm Coating diameter: 100 ~ 1000 μm |
| Fiber count | Single |
| Fiber alignment method | core alignment, cladding alignment, manual alignment |
| Average splice loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Splicing time | typical 9 sec (standard SM fiber) |
| Splicing programs | 53 (templates), 40 (user adjustable) |
| Return loss | > 60 dB |
| Internal memory | 4000 results, 20 parameters per result |
| Fiber image magnification | 300X (X or Y view) 150X (X and Y view) |
| Auto alignment | Yes |
| Splicing area viewing | Yes (2 CMOS cameras) |
| Splice loss assessment | Yes |
| Splicing mode | Auto, Normal, Special |
| Fiber cleaved angle threshold | 0.1° – 10.0°, with a step of 0.1° |
| Heating | |
| Heating time | typical 30 sec |
| Heating programs | 9 (templates), 24 (user adjustable) |
| Heating temperature adjustment | Available |
| Applicable sleeves | 60 mm, 40 mm and a series of micro sleeves |
| General | |
| Tension test | 2 N |
| Electrode life | 2500 splicing cycles |
| Battery capacity | typical 160 cycles (splicing and heating) |
| Display | 5.7 inch TFT color LCD |
| Interface | USB 1.1 and VGA |
| Operating conditions | 0 ~ 5000 m above sea level; 0 ~ 95% RH; –10 ~ 50°C, respectively; max. wind velocity of 15 m/s |
| Power supply | AC adapter (AC 100–240 V); Li-battery (8000 mAh) |
| Dimensions (L×W×H) | 150 × 150 × 150 mm |
| Weight | 2.7 kg (excluding battery) 3.2 kg (including battery) |
Video
Package Contents
- Jilong KL-350E Fusion Splicer — 1 pc.
- KL-21B High Precision Fiber Cleaver — 1 pc.
- CFS-2 fiber stripper — 1 pc.
- Internal rechargeable Li battery — 1 pc.
- AC adaptor — 1 pc.
- AC power cord — 1 pc.
- Spare electrodes — 2 pcs.
- Cooling tray — 1 pc.
- Cleaning tools — 1 pc.
- Operating manual — 1 pc.
- Carrying case with a belt — 1 pc.
