Fusion Splicer Jilong KL-360E

id: 894443
12 kg
Availability in stock: HK
Warranty: 12 month (s)
Automatic fusion splicer for optic fiber splicing with core or cladding fiber alignment. Splicing time: 9 s, heating time: 15 s.
USD 1680.00
Add to cart
USD 1680.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Delivery
Payment
Warranty
Overview

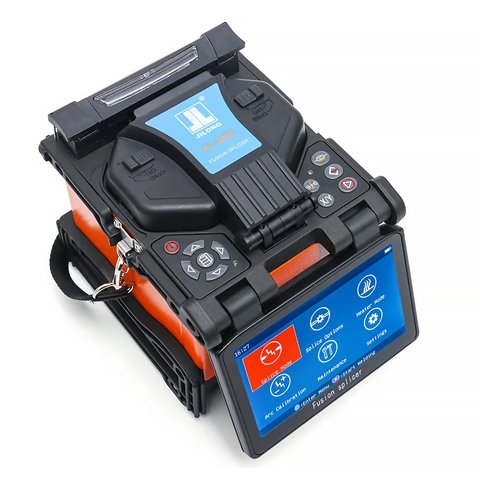

Jilong KL-360E is an automatic fusion splicer with meticulous, manual, core or cladding fiber alignment. The device is capable of splicing fiber in 9 seconds and heating a splice sleeve in 15 seconds. Jilong KL-360E is characterized by real-time & auto control of ARC power function and low splice loss control technology.

4,3-inch color LCD monitor with clear digital image displaying ensures easy and comfortable operation with Jilong KL-360E. Splicing area viewing is ensured by a single view and simultaneous view option for X or Y axes.

Features

  • Core-to-core alignment by PAS Technology (PAS: Profile Alignment System).
  • Clear fiber core displaying.
  • Single view & simultaneous view of X or Y axes.
  • Real time & auto control of ARC power.
  • Auto environmental adaptation.
  • Auto oxidized electrodes adaptation.
  • Universal clamp.
  • Auto check & display quality of cleaved end face.
  • Low splice loss control technology.
  • Auto compensation of low air pressure.
  • Software upgrade via USB interface.

Technical Specifications

Splicing
Applicable fibers SM,  MM,  DS,  NZDS
Fiber cleaved length 8 ~ 16 mm (coating diameter: 250 µm)
Fiber diameter Cladding diameter: 80 ~ 150 µm
Coating diameter: 100 ~ 1000 μm: 16 mm
Fiber alignment method Meticulous, Core, Cladding, Manual
Average splice loss 0,02 dB (SM),  0,01 dB (MM),  0,04 dB (DS),  0,04 dB (NZDS)
Splicing time typical 9 sec (standard SM fiber)
Splicing programs 53 (templates), 100 (user adjustable)
Return loss > 60 dB
Internal memory 10 000 results
Fiber image magnification 320X (X or Y view)
Splicing mode Auto, Calibrate, Normal, Special
Heating
Heating time typical 15 seconds (fast heating control, editable heating time, editable heating temperature)
Heating programs 11 (templates), 40 (user adjustable)
Applicable sleeves 60 mm, 40 mm and other lengths
General
Tension test 2N
Battery capacity typical 350 cycles (splicing and heating)
Display 4.3 inch TFT color LCD monitor, image rotation
Operating condition 0 ~ 5000 m above sea level;  0 ~ 95% RH; –10 ~ 50°C,  respectively;  max. wind velocity of 15 m/s
Power supply AC 100-240 V with AC adapter DC13.5 V; inner Li-battery (5200mAH), charging time <3.5 hours
Dimensions (L×W×H) 161 mm × 136 mm × 141 mm
Weight 1.6 kg (excluding battery)
1.93 kg (including battery)

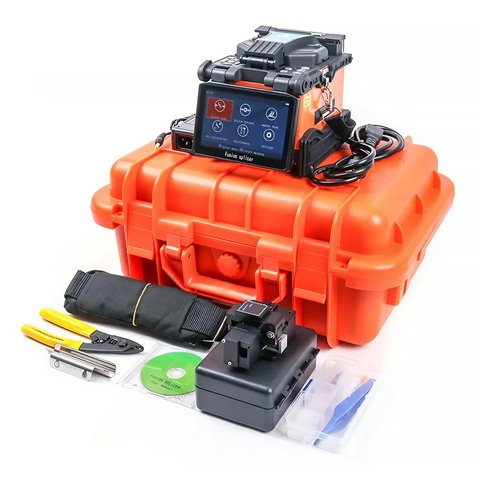

Package Contents

  • Fusion Splicer Jilong KL-360E — 1 pc.
  • Fiber Cleaver — 1 pc.
  • Fiber Stripper — 1 pc.
  • Carrying Case — 1 pc.
  • Spare Electrodes — 2 pcs.
  • Cooling Tray — 1 pc.
  • Cleaning Tool — 1 pc.
  • Manual — 1 pc.
  • Power Supply Cord  — 1 pc.
  • USB Cable— 1 pc.
