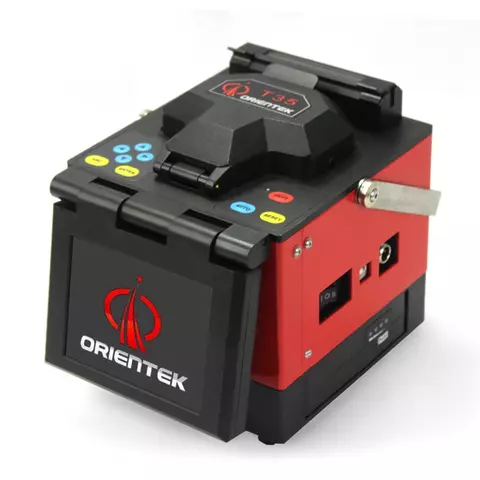

Fusion Splicer ORIENTEK T35

id: 848306
Fusion Splicer ORIENTEK T35
Overview
Description
Video
Delivery
Payment
Warranty
USD 2450.00
Notify
when in stock
Overview
13 kg 110, 220 V Warranty: 12 months
Core-to-core alignment fusion splicer for SM, MM, DS, NZDS optical fibers. Splice time: 9 sec., heating time: 35 sec. Splicing kit includes: Fusion Splicer, Fiber Cleaver, Stripper and more in a carrying case with a shoulder strap.
USD 2450.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 2450.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

OrienTek T35 is a core-to-core alignment digital fusion splicer with 9 seconds splicing time, 35 seconds tube heating time designed for splicing SM, MM, NZDS, EDF optical fibers.

The OrienTek T35 kit includes all the necessary accessories: Fusion Splicer, Fiber Cleaver, Stripper and many more in a carrying case with a shoulder strap.

Features

  • The advanced core to core fiber profile alignment system.
  • Simultaneous displaying of X/Y axes.
  • Magnification up to 304 times.
  • 9 sec. splicing time.
  • 35 sec. tube heating time.
  • High-resolution true color 5.0-inch LCD display.
  • Four display modes, fiber core visible.
  • Storing 6000 groups of splicing results.
  • USB interface for software updates and transferring results to external devices.
  • Built-in high capacity battery: supports 220 splicing and heating cycles (corresponds to one day of operation).
  • Long electrode lifetime: up to 4000 cycles.
  • Three splicing modes: auto, semi-auto, manual.
  • Closes splicing shield automatically.
  • Closes heater lid automatically
  • One year warranty.

Technical Specifications

Applicable Fibers SM, MM, NZDS, EDF
Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss ≥ 60dB
Tension Test 2.0 N (200 gf) Standard
Splicing Programs 50 groups
Protection Sleeve Length 20 mm, 40 mm, 60 mm
Battery 160 splice & heat cycles
Electrodes Lifetime 4000 times
Languages Chinese, English, Japanese, German, Spanish, Russian, Korean
Environmental Conditions
Operation Temperature -10 ~ +50℃
Relative Humidity 0 ~ 95%
Altitude 0 ~ 5000 m
Power Supply
AC adaptor 100 ~ 240 V input voltage, 50/60 Hz; 12 V, 5 A output voltage (DC)
DC adaptor 12 V voltage 8 AH
Mechanical
Dimensions (w × d × h) 155 × 165 × 150 mm
Weight 2.2 kg (no battery)

Video

Youtube video

Package Contents

  • OrienTek T35 Fusion Splicer — 1 pc.
  • OrienTek T30 High Precision Fiber Cleaver — 1 pc.
  • Miller CFS-2 Fiber Stripper — 1 pc.
  • Kimwipes Lint-Wipers 280 wipers/box — 1 pc.
  • Fusion Splice Protection Sleeves — 240 pcs.
  • Internal Battery — 1 pc.
  • Charger — 1 pc.
  • AC Power Cord — 1 pc.
  • Spare Electrodes — 1 pair
  • Cooling Tray — 1 pc.
  • Alcohol Bottle — 1 pc.
  • User Guide — 1 pc.
  • Instruction CD — 1 pc.
  • Carrying Case with a Shoulder Strap — 1 pc.
Read more
Description

OrienTek T35 is a core-to-core alignment digital fusion splicer with 9 seconds splicing time, 35 seconds tube heating time designed for splicing SM, MM, NZDS, EDF optical fibers.

The OrienTek T35 kit includes all the necessary accessories: Fusion Splicer, Fiber Cleaver, Stripper and many more in a carrying case with a shoulder strap.

Features

  • The advanced core to core fiber profile alignment system.
  • Simultaneous displaying of X/Y axes.
  • Magnification up to 304 times.
  • 9 sec. splicing time.
  • 35 sec. tube heating time.
  • High-resolution true color 5.0-inch LCD display.
  • Four display modes, fiber core visible.
  • Storing 6000 groups of splicing results.
  • USB interface for software updates and transferring results to external devices.
  • Built-in high capacity battery: supports 220 splicing and heating cycles (corresponds to one day of operation).
  • Long electrode lifetime: up to 4000 cycles.
  • Three splicing modes: auto, semi-auto, manual.
  • Closes splicing shield automatically.
  • Closes heater lid automatically
  • One year warranty.

Technical Specifications

Applicable Fibers SM, MM, NZDS, EDF
Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss ≥ 60dB
Tension Test 2.0 N (200 gf) Standard
Splicing Programs 50 groups
Protection Sleeve Length 20 mm, 40 mm, 60 mm
Battery 160 splice & heat cycles
Electrodes Lifetime 4000 times
Languages Chinese, English, Japanese, German, Spanish, Russian, Korean
Environmental Conditions
Operation Temperature -10 ~ +50℃
Relative Humidity 0 ~ 95%
Altitude 0 ~ 5000 m
Power Supply
AC adaptor 100 ~ 240 V input voltage, 50/60 Hz; 12 V, 5 A output voltage (DC)
DC adaptor 12 V voltage 8 AH
Mechanical
Dimensions (w × d × h) 155 × 165 × 150 mm
Weight 2.2 kg (no battery)

Video

Youtube video

Package Contents

  • OrienTek T35 Fusion Splicer — 1 pc.
  • OrienTek T30 High Precision Fiber Cleaver — 1 pc.
  • Miller CFS-2 Fiber Stripper — 1 pc.
  • Kimwipes Lint-Wipers 280 wipers/box — 1 pc.
  • Fusion Splice Protection Sleeves — 240 pcs.
  • Internal Battery — 1 pc.
  • Charger — 1 pc.
  • AC Power Cord — 1 pc.
  • Spare Electrodes — 1 pair
  • Cooling Tray — 1 pc.
  • Alcohol Bottle — 1 pc.
  • User Guide — 1 pc.
  • Instruction CD — 1 pc.
  • Carrying Case with a Shoulder Strap — 1 pc.
