Fusion Splicer Senter ST3100

id: 840602
5 kg 110, 220 V Warranty: 12 month (s)
Fusion splicer for SM for MM fibers. Splice time: 9 sec., heating time: 30 sec.
USD 3500.00
Notify
when in stock
USD 3500.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Video
Delivery
Payment
Warranty
Overview

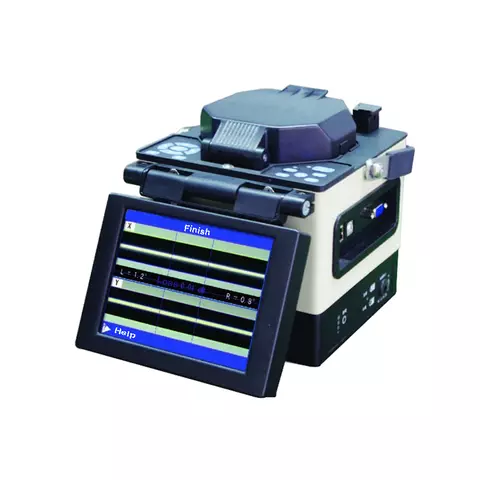

Senter ST3100 is a fusion splicer for SM and MM fibers. Senter ST3100 boasts a high-speed image processing technology and special precision positioning technology, which makes the whole splicing process operated automatically within 9 seconds.

Senter ST3100 Fusion Splicer Features

  • 5.7-inch color display
  • Automatic selection of the best splicing program
  • 9 seconds splice time and 30 seconds heating time
  • User-friendly menu
  • Real-time battery charge monitoring
  • Compact and lightweight

Video

Youtube video

Senter ST3100 Fusion Splicer Technical Specifications

Applicable fibers SM (ITU-T G.652),
MM (ITU-T G.651)
Coating 0.2- 1.5 mm
Fiber outer diameter ≦125 µm (standard)
Average splice loss 0.02 dB (SM fiber);
0.01 dB (MM fiber)
Typical splice time 9 sec.
Typical heating time 30 sec.
Splice modes 53 factory modes; 40 user modes
Heating modes 9 factory modes; 24 user modes Fiber magnification 300 times (X axis or Y axis);
150 times (X axis and Y axis)
Electrode life time 2500 splices
Power supply AC 100-240 V (power adapter);
built-in Lithium Battery
Display 5.7-inch LCD
Interfaces USB, VGA, LAN
Size 150 × 150 × 150 mm
Weight 3.2 kg

Senter ST3100 Fusion Splicer Package Contents

  • Senter ST3100 fusion splicer main unit (1 pc.)
  • Cleaver (1 pc.)
  • Power adapter (1 pc.)
  • Plastic tweezers (1 pc.)
  • Spare electrodes (1 set)
  • Cleaning brush (1 pc.)
  • Display cover (1 pc.)
  • Carrying case (1 pc.)
  • Manual (1 pc.)
