Fusion Splicer Sumitomo Z1C

id: 859355
9 kg 110, 220 V Warranty: 12 month (s)
Ultra fast splicing (7 sec.) in every environment. Fiber types: SMF, MMF, DSF, NZDSF. Cladding diameter: 80 µm ~ 150 µm, Coating diameter: 100 µm ~ 1,000 µm.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Video
Delivery
Payment
Warranty
Overview

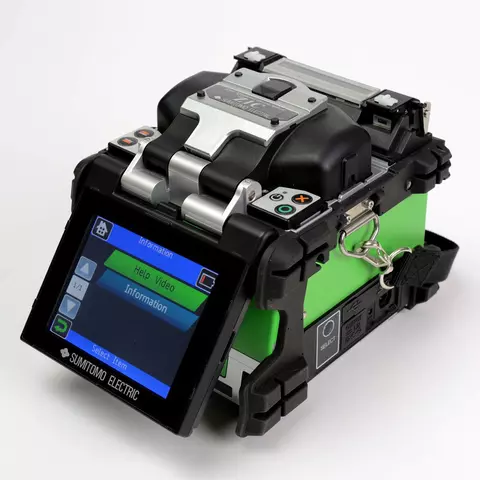

Sumitomo Z1C is a direct core monitoring fusion splicer for ultra fast splicing in every environment.

Features

  • Downsized by 43% from conventional model
  • 2.1kg weight with battery
  • Ultra fast splicing (7 sec.)
  • Ultra fast heating (28 sec.)
  • G.657 fiber auto splicing function
  • IP52 rating and 76 cm drop on 5 faces
  • Automatic arc calibration
  • Touch screen operation
  • Universal clamp for 250µm,900µm tight and loose buffer fiber
  • Support bi-directional splicing operation
  • Equipped with onboard training vedio
  • Upgrades software via internet

Technical Specifications

Optical Fiber Profile Types  SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655)
Fiber diameter Cladding diameter:  80 µm ~ 150 µm, Coating diameter: 100 µm ~ 1000 µm
Applicable fiber or cable size Up to Φ 1000 µm
Cleave length 5~16 mm
Splice Loss (typical) SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04.dB
Splicing cycle time (typical) 7 sec. (quick mode), 7.5 sec. (SMF standard mode), 8 sec. (Auto mode)
Heating cycle time (typical) 28 sec
Splice & Heat cycles Approx. 100
Fiber view & magnification Two CMOS cameras observation, 320X (zoom: 700X) for X or Y single axis view, 88X for both X & Y dual axis view
Splicing programs Max. 300
Heating programs Max. 100
Loss estimation Provided
Splice image capture/Splice data storage 64 images/ 10 000 splice data
Proof test 1.96N (200gf)
Universal clamps for 250 µm, 900 µm tight & loose buffer fiber Provided
Reversible coating clamps Provided
Monitor 4.1" touch screen colour LCD display
DC output DC12 V  (for JR-6)
USB port USB 2.0 (mini-B type)
Storage media SD/SDHC memory card
AC input 100 ~ 240 V, 50/60 Hz (ADC-1430)
DC input 10 ~ 15 V
Operating conditions Altitube  0~6,000 m, Temperature -10~+50℃, Humidity 0~95% (non-condensing), Wind velocity up to 15 m/s
Storage condition Temperature -40~+80℃, Humidity 0~95% (non-condensing), Battery -20~+30℃ (long term)
Size, W x D x H 120 x 154 x 130 mm (without anti-shock rubber)
Weight 1.8 kg (without battery), 2.0 kg (with battery)

Video

Youtube video

Package Contents

  • Sumitomo Z1C Fusion Splicer — 1 pc.
  • BU-11S battery module — 1 pc.
  • ADC-1430 power supply module — 1 pc.
  • Power cord — 1 pc.
  • Cooling tray — 1 pc.
  • ER-10 spare electrodes — 1 pair
  • CD with operating manual — 1 pc.
  • Quick reference guide — 1 pc.
  • CC-81 carrying case with workable — 1 pc.
  • Hand strap — 1 pc.
Video
Youtube video
Delivery
Payment
Warranty
Fusion Splicer Sumitomo Z1C - Short description
Fusion Splicer Sumitomo Z1C
Discontinued
Contact
sales team
