Handheld Digital Oscilloscope Hantek DSO1102B
id: 834547
Handheld Digital Oscilloscope Hantek DSO1102B
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 560.00
Overview
2.5 kg 110, 220 V Warranty: 12 months
Handheld dual-channel digital oscilloscope with integrated multimeter functions, 100 MHz bandwidth, 1 GSa/s real-time sample rate, 1M memory depth. Read more
Description

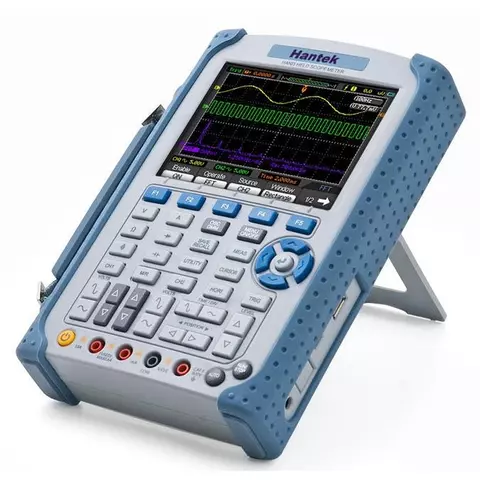

Hantek DSO1102B is a dual-channel handheld digital oscilloscope with a 100 MHz bandwidth and 1 GSa/s real-time sample rate. The oscilloscope is characterized by an integrated multimeter function. Multimeter mode allows user to measure AC/DC current and voltage, resistance, capacitance, continuity and test diodes.
Hantek DSO1102B Handheld Digital Oscilloscope offers exceptional waveform viewing and measurements in a compact, lightweight package. This digital oscilloscope is ideal for production test, field service, research, design, education and training involving applications of analog circuit tests and troubleshooting.
Features
- Bandwidth – 100 MHz.
- Real-time sample rate – 1 GSa/s.
- Memory depth – 1M points.
- High refresh rate – 2500 frames.
- Up to 1000 waveforms recording.
- 23 automatic measurements.
- Functions of high precision digital multimeter (6000 counts).
- AC/DC voltage
- AC/DC current
- Resistance
- Capacitance
- Continuity
- Diode test
- Math: Add, Subtract, Multiply, Divide, FFT.
- X-Y mode.
- Pass/Fail function.
- Labview\VB\VC second design instance.
- Large 5.6" TFT color LCD display with backlight.
- Integrated Li battery (up to 6 hours).
- Easy-to-use pop-up menu.
- Built-in multi-language help system.
- USB Host/Device 2.0 full-speed interface with removable disk support. RS-232/LAN optional. Easy to control with PC or at long-distance.
- Software compatible with: Windows 2000, XP, Vista, Windows 7.
User Manual
Download Hantek DSO1102B Handheld Digital Oscilloscope User Manual.
Technical Specifications
| Channels | 2 | ||||
| Bandwidth | 100 MHz | ||||
| Real-time Sample Rate | 1 GSa/s | ||||
| Equivalent Sample Rate | 25 GSa/S | ||||
| Memory Depth | 1 M (Single Channel), 512 K (Dual Channel) | ||||
| Time Base Range | 4 ns/div to 40 s/div (in a 2, 4, 8 sequence) | ||||
| Time Base Precision | ±50 ppm | ||||
| Input Impedance | Resistance 1 MΩ | ||||
| Capacitance 20 pF | |||||
| Input Coupling | AC, DC and GND | ||||
| Vertical Resolution | 8 bits | ||||
| Rise Time | ≤3.5 ns | ||||
| Vertical Sensitivity | 2 mV/div ～ 5 V/div | ||||
| Trigger | |||||
|---|---|---|---|---|---|
| Source | CH1, CH2 | ||||
| Trigger Sensitivity | DC: 1 div from DC to 10 MHz; 1.5 div from 10 MHz to Full AC: attenuates signals below 10 Hz HF Reject: attenuates signals above 80 kHz LF Reject: attenuates signals below 150 kHz |
||||
| Measurements | |||||
| Automatic Measurements | Frequency, Period, Mean, Peak-to-peak, Cycle RMS, Minimum, Maximum, Rise Time, Fall Time, Positive Width, Negative Width | ||||
| Cursor Measurements | Manual, Track, Auto | ||||
| Multimeter Mode | |||||
| Maximum Resolution | 6,000 Counts | ||||
| Testing Modes | voltage, current, resistance, capacitance, diode test, continuity test | ||||
| Maximum Input Voltage | AC: 600 V, DC: 800 V | ||||
| Maximum Input Current | AC: 10 A, DC: 10 A | ||||
| Input Impedance | 10 MΩ | ||||
| General information | |||||
| Display Type | 5.6 Inch TFT LCD with LED Backlight | ||||
| Display Resolution | 640 × 480 | ||||
| Interface | USB 2.0 Full Speed, LAN (Optional) | ||||
| Power Source | AC 100 V ~ 240 V, 50 Hz ~ 60 Hz; DC Input: 12-17 V, 1500 mA, Battery Power (Li-ion Battery, up to 6 h) | ||||
| Dimensions | 245 × 163 × 52 mm | ||||
| Weight | 1.3 kg | ||||
Package Contents
- Hantek DSO1102B Digital Oscilloscope (1 pc.)
- Multimeter test leads (2 pcs.)
- Oscilloscope probes (2 pcs.)
- USB cable (1 pc.)
- Carrying bag (1 pc.)
- Power adapter (1 pc.)
- User manual (1 pc.)
