Handheld Digital Oscilloscope Hantek DSO1200
Handheld Digital Oscilloscope Hantek DSO1200
USD 600.00
ID: 821425 2.7 kg
Out of stock
Warranty: 12 month (s)

USD 600.00

Hantek DSO1200 is a handheld double-channel digital oscilloscope with installed multimeter. Bandwidth is 200MHz. Real-time sampling rate is 500MSa/s.
  • Overview
  • Specifications
  • Delivery
  • Payment
  • Warranty


DSO1000 Series digital oscilloscopes offer exceptional waveform viewing and measurements in a compact, lightweight package (245 × 163 × 52 mm). This handheld digital oscilloscope is ideal for production test, field service, research, design, education and training involving applications of analog circuit tests and troubleshooting.

Hantek DSO1200 is the double-channel digital oscilloscope with installed multimeter. Bandwidth is 200MHz. Real-time sampling rate is 500MSa/s. Multimeter mode allows user to measure AC/DC current and voltage, resistance, capacitance, continuity and test diodes.

Hantek DSO1200 Handheld Digital Oscilloscope Features

  • Large 5.7" TFT color LCD display with backlight.
  • USB Host/Device 2.0 full-speed interface with removable disk support. RS-232/LAN optional. Easy to control with PC or at long-distance.
  • Bandwidth 200MHz
  • Functions of high precision digital multimeter (6000 counts):
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Capacitance
    • Continuity
    • Diode test
  • High refresh rate. High real-time sample rate 500MSa/s, 50GSa/s equivalent-time sample rate.
  • Math: FFT , + , - , * , / ,X-Y. Pass/Fail function. 22 automatic measurements.
  • Multiform trigger mode, 2 separate time base in ALT trigger mode. Easy to see 2 signal with different frequencies.
  • 1000 waveform records.
  • Installed battery: 6 hours work time.
  • Saving waveforms in .jpg/.bmp format, MS excel/word files.
  • Labview\VB\VC second design instance.
  • Software compatible with: Windows NT, Windows 2000, Windows XP ,VISTA

Hantek DSO1000 Series Handheld Digital Oscilloscope Comparative Specifications

Model 1060 1200 1600 1600H
Bandwidth, MHz 60 200 600
Rise Time, ns 5.8 0.58
Input Sensitivity 10mV/div to 5V/div 2mV/div to 5V/div
Real-Time Sampling Rate 150MSa/s 500MSa/s 1GSa/s 2GSa/s
Equivalent Sampling Rate 50GSa/S
Time Base Range 5ns/div~1000s/div 2ns/div~1000s/div 1ns/div~1000s/div
Mode Edge, Pulse Width, Alternative Edge, Video, Pulse Width, Alternative

Hantek DSO1200 Handheld Digital Oscilloscope Technical Specifications

Channels 2
Input Impedance Resistance 1M
Capacitance 15 pF
Input Coupling AC, DC and GND
Vertical Resolution 8 bits
Maximum Input 300V (DC+AC Peak)
Equivalent Sampling Rate 50GSa/S
Memory Depth 32k at Single Channel, 16k at Dual Channel
Time Base Precision ±50ppm
Source CH1, CH2
X-Y Mode
X-Axis Input Channel 1
Y-Axis Input Channel 2
Phase Shift Max.3 degree
Cursors and Measurement
Voltage Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Delay Measurement Delay time from ch1 rising edge to ch2 rising edge, Delay time from ch1 falling edge to ch2 falling edge
Cursors Measurement Manual, Track, Auto Measure Modes
Multimeter Mode
Maximum Resolution 6,000 Counts
Testing Modes Ac/DC voltage, AC/DC current, resistance, capacitance, diode test, continuity
Maximum Input Voltage AC: 600V, DC: 800V
Maximum Input Current AC: 10A, DC: 10A
Input Impedance 10 MΩ
General information
Waveform Signal Process CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert
Storage 15 Waveforms and Setups
Display TFT LCD Type 5.7 Inch with LED Backlight Display
Display Resolution 240 (Vertical) x 320 (Horizontal) Dots
USB USB Host / Device 2.0 Full Speed Supported
Optional RS232, LAN
Power Source AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA, Battery Power (Installed) 6 Hours (Li-ion Battery)
Dimension 245 x 163 x 52 mm
Weight 1.2kg

Hantek DSO1200 Handheld Digital Oscilloscope Package Content

  • Hantek DSO1200 Digital Oscilloscope
  • Box (1pc.)
  • Carrying bag (1pc.)
  • User manual (1pc.)
  • Disc with software (1pc.)
  • Multimeter test leads (2pcs.)

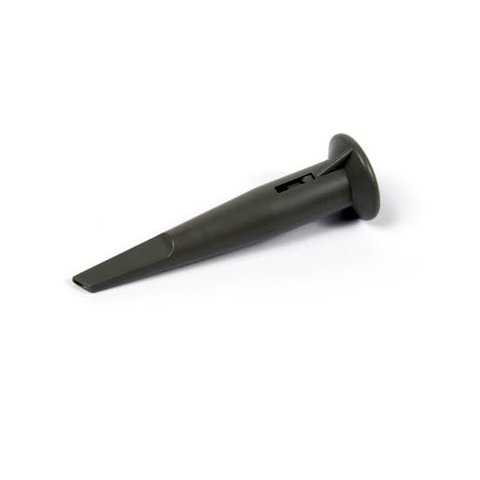

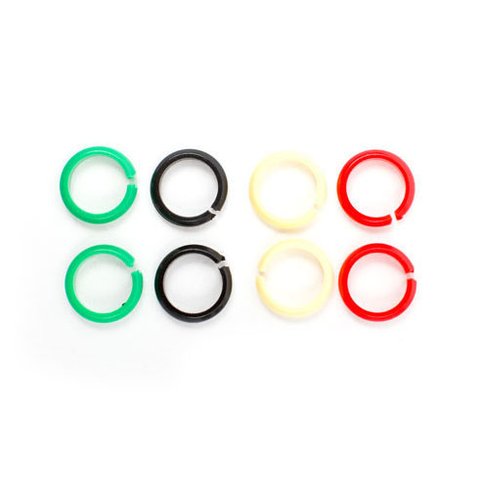

  • Oscilloscope probes (2pcs.)
  • USB (1pc.)
  • Power adapter (1pc.)
Hantek DSO1200 can be connected to a PC MATH, REF
Multimeter mode ALT MAG, easy to search for signal
The cursor function 22 automatic measurements
X-Y mode FFT
ALT trigger mode, dual time base, easy to observe two signals of different frequency Built-in help system
Test signal more than 100MHz by ETS mode Document management, and convenient file storage and management


  • portable
  • multimeter
Number of channels
  • dual-channel
  • 200 MHz
Sample Rate
  • 500 MS/s
Storage Capacity
  • 32 kB
Screen Size
  • 5.6" TFT display
