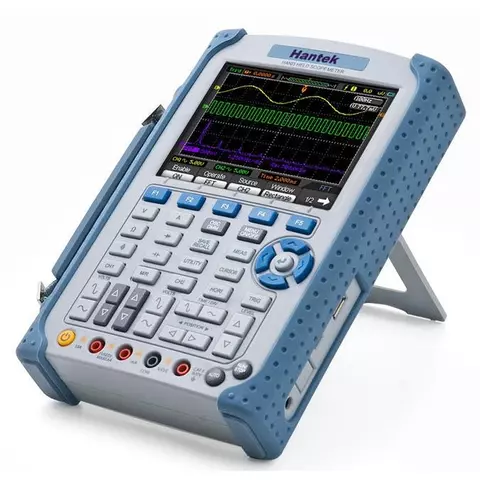

Handheld Digital Oscilloscope Hantek DSO1202B

id: 834140
Handheld Digital Oscilloscope Hantek DSO1202B
USD 730.00
when in stock
Rate product
2.4 kg 110, 220 V Warranty: 12 months
Portable dual-channel digital oscilloscope with the built-in multimeter functions, 200 MHz bandwidth, 1 GSa/s real-time sampling rate and 1 M memory depth. Read more
USD 730.00
when in stock
Add to wishlist
USD 730.00
when in stock
Impossible to estimate the shipping cost

You may also like

2-channel digital oscilloscope with 200 MHz bandwidth and 1 GS/s sample rate, equipped with multimeter and data logger.
Availability in stock: HK
Shipping cost
ID: 907614 12 kg

DSO1000 Series digital oscilloscopes offer exceptional waveform viewing and measurements in a compact, lightweight package (245 × 163 × 52 mm). Hantek DSO1202B handheld digital oscilloscope is ideal for production test, field service, research, design, education and training involving applications of analog circuit tests and troubleshooting.

Hantek DSO1202B is the dual-channel digital oscilloscope with built-in digital multimeter functions, which allows operator to measure AC/DC current and voltage, resistance, capacitance, continuity and test diodes.

Hantek DSO1202B Handheld Digital Oscilloscope Features

  • Bandwidth - 200 MHz
  • Large 5.6 inch TFT color LCD display (resolution 640x480)
  • One-touch automatic setup optimizes the position, range, timebase, and triggering
  • 23 automatic measurements
  • Waveform math: add, subtract, multiply, and divide
  • Built-in FFT function
  • Functions of high precision digital multimeter(6000 counts):
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Capacitance
    • Continuity
    • Diode test
  • Automatic cursor tracking measurements
  • 1000 waveform records
  • Waveform recorder to capture/replay input waveforms from CH1 and CH2
  • Square wave output (2 V, 1 kHz)
  • USB host/device 2.0 full-speed interface

Hantek DSO1202B Handheld Digital Oscilloscope Specifications

Technical Specifications
Bandwidth 200 MHz
Real-time Sample Rate 1 GSa/s
Equivalent Sample Rate 25 GSa/s
Record Length (Sample Points)
  • Single-channel: maximum 1M
  • Dual-channel: maximum 512K
2 nS/div - 2000 S/div (in a 2, 4, 8 sequence)
Delay Time Accuracy 500 ps
A/D Converter 8-bit resolution
Position Range
  • ±50 V (5 V/div)
  • ±40 V (2 V/div; 500 mV/div), 2 V (200 mV/div; 50 mV/div)
  • ±400 mV (20 mV/div; 2 mV/div)
Rise Time at BNC ≤1.7 ns
DC Gain Accuracy
  • ±4% for Sample or Average acquisition mode, 5 mV/div to 2 mV/div
  • ±3% for Sample or Average acquisition mode, 5 V/div to 10 mV/div
Trigger Sensitivity (Edge Trigger Type)
  • DC: CH1/CH2 (Typical) 1 div from DC to 10 MHz; 1.5 div from 10 MHz to Full
  • EXT (Typical) 20 0mV from DC to 40 MHz
  • EXT/5 (Typical) 1 V from DC to 40 MHz
  • AC: Attenuates signals below 10 Hz
  • HF Reject: Attenuates signals above 80 kHz
  • LF Reject: Attenuates signals below 150 kHz
  • Noise Reject: Reduces trigger sensitivity
Trigger Level Range
  • CH1, CH2: ±8 divisions from center of screen
  • EXT: ±1.2 V EXT/5: ±6 V
Holdoff Range 100 ns - 10 s
Trigger Type
Edge Trigger on the rising or falling edge
Pulse Width
  • Trigger (when >,<,=,≠) on positive or negative pulses
  • Pulse width range: 20 ns - 10 s
  • Trigger on an NTSC, PAL, or SECAM standard video signal
  • Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)
  • Trigger (when >,<,=,≠) on a positive or negative slope
  • Set Time: 20 ns – 10 s
  • From the rising or falling edge
  • Set Time: 20 ns – 10 s
Alternate Internal trigger on edge, pulse width, video or slope
Cursors and Measurement
  • Manual: The difference between voltage cursors △V; the difference between time cursors △T; 1/△T calculated by Hz.
  • Tracing: The voltage and time at a waveform point
Automatic Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width
Multimeter Mode
Maximum Resolution 6,000 counts
Testing Modes AC/DC voltage, AC/DC current, resistance, capacitance, diode test, continuity
Maximum Input Voltage AC: 600 V, DC: 800 V
Maximum Input Current AC: 10 A, DC: 10 A
Input Impedance 10 MΩ
Display and General
Display Type 5.6 inch 16-digit color LCD
Resolution 640x480
Interface USB host, LAN (optional)
Dimensions 245 x 163 x 52 mm

Hantek DSO1202B Handheld Digital Oscilloscope Package Contents

  • Hantek DSO1202B oscilloscope (1 pc.)
  • Multimeter test leads (1 pair)
  • Oscilloscope probes (1 pair)
  • USB cable (1 pc.)
  • Carrying bag (1 pc.)
  • Power adapter (1 pc.)
  • Disc with software (1 pc.)
  • User manual (1 pc.)
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
Storage Capacity
  • 1 MB
  • 200 MHz
  • portable
  • multimeter
Sample Rate
  • 1 GS/s
