Handheld Digital Oscilloscope OWON HDS1021M-N

id: 875040
0.65 kg Warranty: 12 month (s)
Single channel portable digital oscilloscope with 20 MHz bandwidth, 500 MSa/s sample rate, and a set of multimeter measurement functions.
USD 249.00
Notify
when in stock
USD 249.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

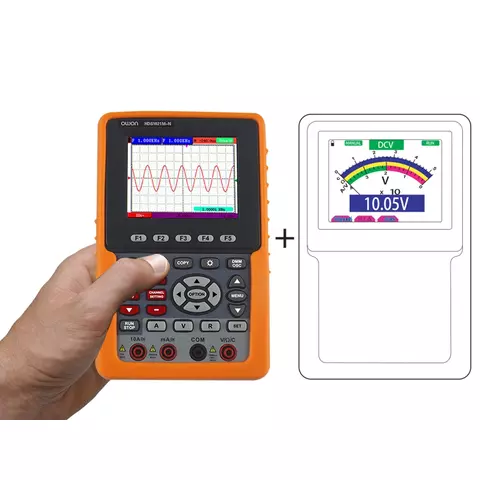

OWON HDS1021M-N is a single channel portable oscilloscope with 20 MHz bandwidth, 500 MS/s real-time sample rate, and 6K pts wavelength. In addition to the basic oscilloscope functions, the device performs the multimeter functions measuring AC/DC voltage and current, resistance, capacity and performing diode and continuity check. There is USB host for external device connection.

Features

  • 20 MHz bandwidth.
  • Channel: 2 in 1 (DSO + Multimeter).
  • Sample rate: 500 MS/s (Real time).
  • 6K pts wavelength.
  • 3.7” color TFT display (640 × 480 pixels).
  • SCPI supported.
  • Interface: USB.
  • Built-in multimeter.

Technical Specifications

Bandwidth 20 MHz
Rise Time ≤ 11 ns
Channel 2 in 1 (DSO + Multimeter)
Vertical Sensitivity 5 mV/div - 5 V/div
DC Gain Accuracy 3%
Vertical Resolution (A/D) 8 bits
Horizontal Scale (s/div) 5 ns/div - 100 s/div
Input
Input Impedance 1 MΩ, 10 pF
Input Coupling AC, DC, GND
Max Input Voltage ± 400 V, CATI, CATII
Passive Probes х1; х10
Probe Attenuation Factor х1; х10; х100; х1000
Trigger System
Trigger Mode Auto, Normal, Single
Trigger Type Edge, Video, Alternate
Video Trigger
Sampling Type real-time
Sample Rate 500 MSa/s
Wavelength 6K pts
Sampling Mode Direct Sampling, Peak Recording, Averaging
Interpolation sin(x)/x
Measurement and Mathematical Treatment System
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
Math Functions Addition, Subtraction, Multiplication, Division, FFT
General Characteristics
Display type 3,5" color LCD
Display resolution 320 × 240
Power 100-240 V / Li-ion 7.4 V (6 hours’ operation)
Dimensions 115 × 40 × 180 mm
Weight 0,65 kg

User Manual

PDF Download OWON HDS1021M-N user manual.

Software

Download OWON HDS1021M-N Software.

Package Contents

  • Digital Oscilloscope OWON HDS1021M-N — 1 pc.
  • Probe — 1 pc.
  • Power Cord — 1 pc.
  • USB Cable — 1 pc.
  • Multimeter Probes — 2 pcs.
  • USB Testing Adapter — 1 pc.
  • Capacity Measurement Module — 1 pc.
  • User Manual — 1 pc.
  • Guarantee Card — 1 pc.
Specifications
Number of channels
  • single-channel
Type
  • portable
  • multimeter
Sample Rate
  • 500 MS/s
Bandwidth
  • 20 MHz
Screen Size
  • 3.5" TFT LCD
Storage Capacity
  • 6 kB
Delivery
Payment
Warranty
Handheld Digital Oscilloscope OWON HDS1021M N - Short description
Handheld Digital Oscilloscope OWON HDS1021M-N
USD 249.00
Notify
when in stock
