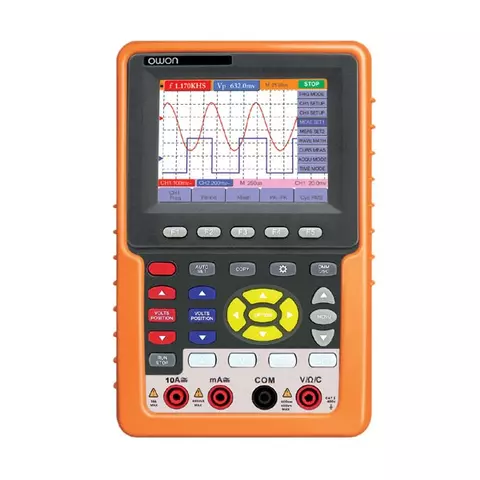

Handheld Digital Oscilloscope OWON HDS1022M-N

id: 856642
3 kg 110, 220 V
Availability in stock: HK
Warranty: 12 month (s)
Dual-channel lightweight handheld oscilloscope with 20 MHz bandwidth, 100 MS/s sample rate and a set of multimeter measurement functions.
USD 490.00
Add to cart
USD 490.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Delivery
Payment
Warranty
Overview

OWON HDS1022M-N is a dual-channel lightweight handheld oscilloscope with 20 MHz bandwidth and 100 MS/s sample rate. OWON HDS1022M-N also performs multimeter measuring functions: AC/DC voltage and current, resistance and capacitance.

Features

  • 3.7-inch color LCD
  • Channels - 2
  • Real-time sample rate - 100 MS/s
  • Record length - 6 000 points
  • Manual- and auto-ranging multimeter modes
  • Multimeter functions:
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance

Technical Specifications

Channels 2
Bandwidth 20 MHz
Rise time ≤ 17.5 ns
Real-time sampling rate 100 MS/s
Vertical sensitivity 5 mV/div ~ 5 V/div
Vertical resolution 8 bit
Record length (max) 6 000 points
Trigger type Edge, Video, Alternate
Waveform storage 4 waveforms
Multimeter
DC voltage 400 mV / 4 V / 400 V: ±(1±1%)
AC voltage 4 V / 40 V / 400 V: ±(1±3%)
DC current 40 mA / 400: ±(1.5%±1) / 10 A: ±(3%±3)
AC current 40 mA: ±(1.5%±3) / 400 mA: ±(2%±1) / 10 A: ±(3%±3)
Resistance 400 Ω: ±(1%±3) / 40 MΩ
Capacitance 51.2 nF - 100 μF: ±(3%±3)
General characteristics
Max.display 4000
LCD size 3.7"
Power power supply 100-240 V AC, 50/60 Hz
battery 7.4 V
Dimensions 180 × 115 × 40 mm
Weight 645 g

Package Contents

  • OWON HDS1022M-N digital oscilloscope module - 1 pc.
  • Probes - 2 pcs.
  • Test lead - 1 pair
  • Rechargeable battery - 1 pc.
  • Power adaptor - 1 pc.
  • Output terminal for testing of 1 kHz/5 V square-wave signal - 1 pc.
  • Small capacitance module - 1 pc.
  • Case - 1 pc.
  • USB cable - 1 pc.
  • Software CD - 1 pc.
  • User manual - 1 pc.
Specifications
Number of channels
  • dual-channel
Type
  • portable
  • multimeter
Bandwidth
  • 20 MHz
Sample Rate
  • 100 MS/s
Storage Capacity
  • 6 kB
Screen Size
  • 3,7" TFT display
