Handled dual-channel oscilloscope/multimeter with 40 MHz bandwidth, 250 MSa/s sampling rate, 8K record length, and 3.5-inch LCD.
Availability in stock:
HK
ID: 901468 2.4 kg
Handheld Digital Oscilloscope OWON HDS272
id: 901469
Handheld Digital Oscilloscope OWON HDS272
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 150.00
Overview
2.4 kg Warranty: 12 months
Handled dual-channel oscilloscope/multimeter with 70 MHz bandwidth, 250 MSa/s sampling rate, 8K record length, and 3.5-inch LCD. Read more
USD 150.00
Buy wholesale and save
You may also like
Description

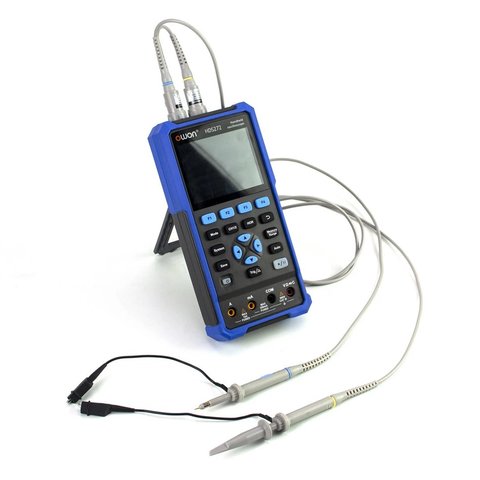

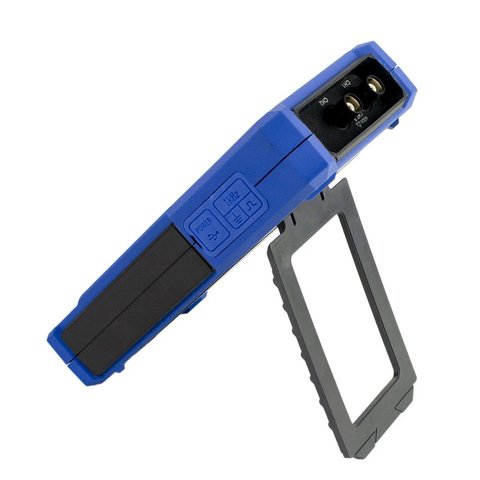

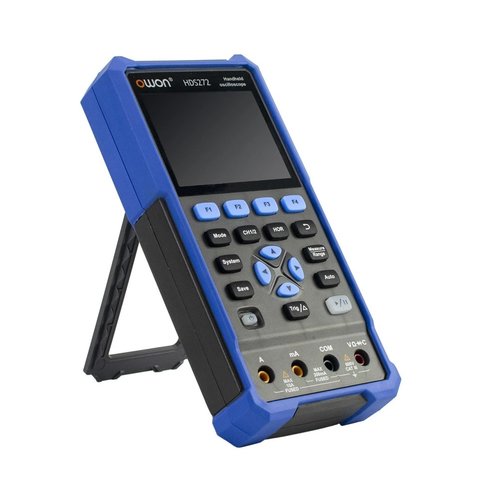

OWON HDS272 is a handled dual channel oscilloscope with 70 MHz bandwidth, 250 MSa/s sampling rate, 8K record length, and 3.5" LCD. The device is equipped with a built-in 20,000-count multimeter, measuring voltage, current, resistance, capacitance, testing diodes, and continuity. Its high-contrast and high-resolution LCD allows using the oscilloscope outdoors.
Features
- Dual channel.
- 70 MHz bandwidth, 250 MSa/s sampling rate.
- 2 in 1 device: oscilloscope + multimeter.
- Multimeter testing modes: voltage, current, resistance, capacitance, diode, and continuity test.
- 3.5" high contrast color LCD with high resolution.
- Rechargeable 18650 battery with ≤3W of power consumption provides up to 6 hours of continuous use.

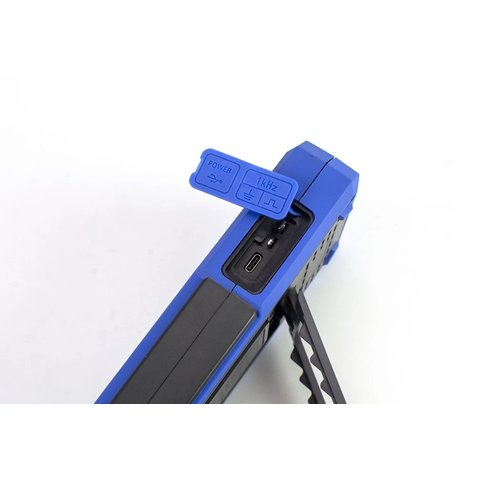

- USB Type-C interface, SCPI command support.
- Self-calibration function.
Technical Specifications
| Oscilloscope | ||
|---|---|---|
| Channels | 2 | |
| Bandwidth | 70 MHz | |
| Sample Rate | 250 MSa/s | |
| Acquisition Mode | Normal, Peak detect | |
| Record Length | 8K | |
| Waveform Refresh Rate | 10,000 wfrms/s | |
| Input Coupling | DC, AC, GND | |
| Input Impedance | 1 MΩ±2%, in parallel with 16pF±10pF | |
| Probe Attenuation Factors | 1X, 10X, 100X, 1000X, 10000X | |
| Max. input Voltage | 400V (DC+AC, PK-PK, 1 MΩ input impedance) (10:1 probe attenuation) | |
| Bandwidth Limit (typical) | 20 MHz | |
| Horizontal Scale | 5 ns/div - 1000 s/div, step by 1 - 2 - 5 | |
| Vertical Sensitivity | 10 mV/div - 10 V/div | |
| Vertical Resolution | 8 bits | |
| Trigger Type | Edge | |
| Trigger Modes | Auto, Normal, Single | |
| Automatic Measurement | Period, Frequency, Mean, PK-PK, Max, Min | |
| Cursor Measurement | ΔV, ΔT, ΔT&ΔV between cursors | |
| Multimeter | ||
| Max. Resolution | 20,000 counts | |
| Testing Mode | DC voltage | 0.01 mV - 1000 V (±0.5% + 5) |
| AC voltage | 0.01 mV - 750 V (±0.8% + 5) | |
| DC current | 10 μA - 10 A (±0.8% + 2) | |
| AC current | 10 μA - 10 A (±1% + 5) | |
| Resistance | 0.01 Ω - 100 MΩ (±0.8% + 3) | |
| Capacitance | 1 pF - 2 mF (±3% + 10) | |
| Diode testing | 0-2 V | |
| Continuity | ||
| Input Impedance | 10 MΩ | |
| Max Input Voltage | AC 750 V, DC 1000 V | |
| Max Input Current | DC: 10 A; AC: 10 A | |
| General Specifications | ||
| Display | 3.5" LCD | |
| Interface | USB Type-C | |
| Dimensions | 196 mm × 96 mm × 38 mm | |
| Weight | 600 g | |
User Manual
Download OWON HDS272 user manual.
Package Contents
- Handheld Digital Oscilloscope OWON HDS272 — 1 pc.
- Oscilloscope Measuring Probes — 1 set
- Multimeter Measuring Probes — 1 set
- USB Cable — 1 pc.
- Power Supply — 1 pc.
- Storage/Carrying Bag — 1 pc.
- User Manual — 1 pc.
