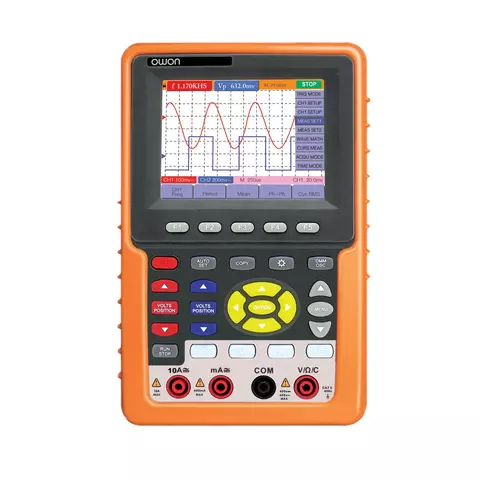

Handheld Digital Oscilloscope OWON HDS3102M-N

id: 856644
3 kg 110, 220 V
Availability in stock: HK
Warranty: 12 month (s)
Dual channel lightweight, handheld oscilloscope with 100 MHz bandwidth, 500 MS/s sample rate and a set of multimeter measurement functions.
USD 730.00
Add to cart
USD 730.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Delivery
Payment
Warranty
Overview

OWON HDS3102M-N is a dual channel lightweight, handheld oscilloscope with 100 MHz bandwidth and 500 MS/s sample rate. OWON HDS3102M-N handheld digital oscilloscope also performs multimeter measuring functions: AC/DC voltage and current, resistance and capacitance.

Features

  • 3.7-inch color LCD
  • Channels - 2
  • Real-time sample rate - 500 MS/s
  • Record length - 6 000 points
  • Manual- and auto-ranging multimeter modes
  • Multimeter functions:
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance
  • Rechargeable li-ion battery
  • USB for data transmission to PC

Technical Specifications

Channels 2
Bandwidth 100 MHz
Rise time ≤ 3.5 ns
Real-time sampling rate 500 MS/s
Vertical sensitivity 5 mV/div ~ 5 V/div
Vertical resolution 8 bit
Record length (max) 6 000 points
Trigger type Edge, Video, Alternate
Waveform storage 4 waveforms
Multimeter
DC voltage 400 mV / 4 V / 400 V: ±(1±1%)
AC voltage 4 V / 40 V / 400 V: ±(1±3%)
DC current 40 mA / 400 mA: ±(1.5%±1) / 10 A: ±(3%±3)
AC current 40 mA: ±(1.5%±3) / 400 mA: ±(2%±1) / 10 A: ±(3%±3)
Resistance 400 Ω: ±(1%±3) / 40 MΩ
Capacitance 51.2 nF - 100 μF: ±(3%±3)
General characteristics
Max.display 4000
LCD size 3.7"
Power power supply 100-240 V AC, 50/60 Hz
battery 7.4 V
Dimensions 180 × 115 × 40 mm
Weight 690 g

Package Contents

  • OWON HDS3102M-N digital oscilloscope module - 1 pc.
  • Probes - 2 pcs.
  • Test lead - 1 pair
  • Rechargeable battery - 1 pc.
  • Power adaptor - 1 pc.
  • Output terminal for testing of 1 kHz/5 V square-wave signal - 1 pc.
  • Small capacitance module - 1 pc.
  • Case - 1 pc.
  • USB cable - 1 pc.
  • Software CD - 1 pc.
  • User manual - 1 pc.
Specifications
Number of channels
  • dual-channel
Bandwidth
  • 100 MHz
Type
  • portable
  • multimeter
Sample Rate
  • 500 MS/s
Storage Capacity
  • 6 kB
Screen Size
  • 3,7" TFT display
