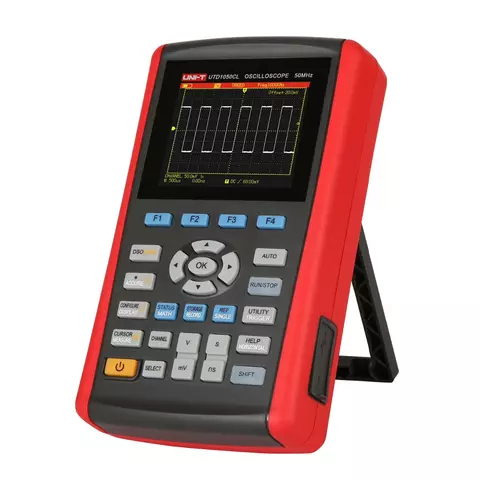

Handheld Digital Oscilloscope UNI-T UTD1050CL

id: 854593
Bestseller
3 kg 110, 220 V
Availability in stock: HK
Warranty: 24 month (s)
Single channel lightweight, handheld oscilloscope with 50 MHz bandwidth, 200 MS/s sample rate and a set of multimeter measurement functions.
USD 328.90
Add to cart
USD 328.90
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

UNI-T UTD1050CL is a single channel lightweight, handheld oscilloscope with 50 MHz bandwidth and 200 MS/s sample rate. UNI-T UTD1050CL handheld digital oscilloscope also performs multimeter measuring functions: AC/DC voltage and current, resistance, capacity, diode and continuity tests.

Features

  • 3.5-inch color LCD (320 × 240)
  • Trigger types: Edge, Pulse, Video, Alternate
  • Multimeter functions:
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance
    • Continuity test
    • Diode test

Technical Specifications

Bandwidth 50 MHz
Rise time ≤ 14 ns
Real-time sampling rate 200 MS/s
Vertical sensitivity 5 mV/div ~ 20 V/div
Record length (max) 12 kpts
Scanning speed 10 ns ~ 50 s/div
Trigger type Edge, Pulse, Video and Alternate
Multimeter
DC voltage 400 mV / 4 V / 40 V / 400 V: ±(1%+5)
AC voltage 400 mV / 4 V / 40 V / 400 V: ±(1.2%+5)
DC current 400 μA / 4000 μA / 40 mA / 4000 mA / 10 A: ±(1.5%+5)
AC current 400 μA / 4000 μA / 40 mA / 4000 mA / 10A: ±(5%+5)
Resistance 400 Ω / 4 KΩ / 40 KΩ / 400 KΩ / 4 MΩ / 40 MΩ: ±(1.5%+5)
Capacitance 51.2 nF / 512 nF / 5.12 μF / 51.2 μF / 100 μF: ±(3%+5)
General characteristics
Max.display 4000
LCD size 3.5"
Power power supply 220 V, 50 Hz
battery 7.4 V, 3600 mAh
Dimensions 199 × 118 × 49 mm
Weight 0.9 kg

Video

Youtube video

Package Contents

  • UNI-T UTD1050CL digital oscilloscope module (1 pc.)
  • Oscilloscope probe (1:1, 10:1) (1 pc.)
  • Test lead 10 A (1 pair.)
  • Power adaptor (1 pc.)
  • Carrying case (1 pc.)
  • USB cable (1 pc.)
  • Software CD (1 pc.)
  • User manual (1 pc.)
Specifications
Number of channels
  • single-channel
Bandwidth
  • 50 MHz
Type
  • portable
  • multimeter
Sample Rate
  • 200 MSa/s
Storage Capacity
  • 12 KB
Screen Size
  • 3.5" TFT LCD
Video
Youtube video
