Handheld Digital Oscilloscope UNI-T UTD1102C

id: 830622

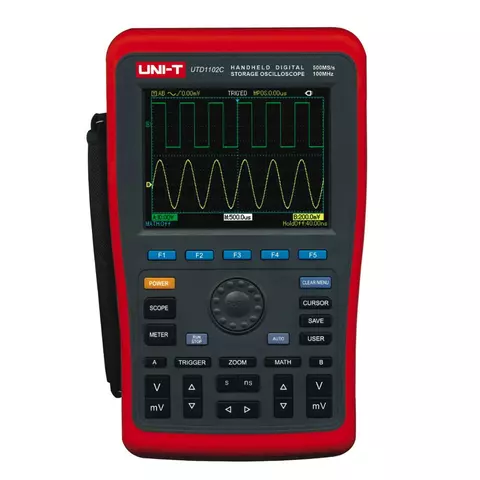

Handheld Digital Oscilloscope UNI-T UTD1102C
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 768.90
Notify
when in stock
Overview
New
5.8 kg 110, 220 V Warranty: 24 months
Dual channel oscilloscope with 100 MHz bandwidth, 500 MS/s sample rate and 2 × 512 K memory length. Performs multimeter functions.
USD 768.90
Notify
when in stock
Add to wishlist
Compare
Compare
USD 768.90
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Handheld Digital Oscilloscope SIGLENT SHS810
Handheld Digital Oscilloscope SIGLENT SHS810
USD 573.00
USD 515.70
Add to cart
100 MHz bandwidth model of the SHS800 series of devices, with 2 channels and three main functions such as oscilloscope, multimeter and waveform recorder.
Shipping cost
ID: 837024 8 kg 110, 220
Description

UNI-T UTD1102C handheld digital oscilloscope is a dual channel oscilloscope with 100 MHz bandwidth, 500 MS/s sample rate and 2 × 512 K memory length. There is USB host for external devices connection. UNI-T UTD1102C digital oscilloscope also performs multimeter functions measuring AC/DC voltage and current, resistance, capacity and performing diode and continuity check.

UNI-T UTD1102C Handheld Digital Oscilloscope Features

  • Dual channel bandwidth 100 MHz
  • Sampling rate 500 MS/s
  • Equivalent sampling rate 25 GS/s
  • 5 mathematic functions: adding, subtraction, multiplying, division, FFT
  • Multimeter functions
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance
  • Continuity buzzer
  • Diode check
  • Internal memory 2 × 512 k
  • Two switchable probes
  • Trend diagram
  • 5.7” color LCD screen
  • Built-in USB host

UNI-T UTD1102C Handheld Digital Oscilloscope Technical Specifications

Bandwidth 100 MHz
Rise time ≤ 3.5 ns
Real-time sampling rate 500 MS/s
Equivalent sampling range 25 GS/s
Vertical sensitivity 5 mV ~ 50 V/div
Record length (max) 2 × 512 k
Scan time base 5 ns ~ 50 s/div
Trigger type Edge, Pulse, Video and Alternate
Automatic waveform measurements 27
Frequency counter 6 digits frequency counter
Maths functions Add, Subtract, Multiply, Divide, FFT
Multimeter
DC voltage 600 mV / 6 V / 60 V / 600 V / 1000 V: ±(1% + 5 digits)
AC voltage
(45 Hz ~ 400 Hz)
600 mV / 6 V / 60 V / 600 V / 700 V:
± (1.2% + 5 digits), frequency: ± (1.5% + 5 digits), frequency: ≥200 Hz
DC current 6 mA / 60 mA / 600 mA: ±(1.2% + 5 digits)
6 A: ±(1.5% + 5 digits)
AC current
(45 Hz ~ 400 Hz)
6 mA / 60 mA / 600 mA: ±(2% + 5 digits)
6 A: ±(2.5% + 5 digits)
Resistance 600 Ω / 6 MΩ / 60 MΩ : ±(1.5% + 5 digits)
6 kΩ / 60 kΩ / 600 kΩ : ±(1.2% + 5 digits)
Capacitance 6 nF / 6 mF: ±(5% + 10 digits)
60 nF / 600 nF / 6 μF / 60 μF / 600 μF: ±(4% + 5 digits)
General characteristics
Max.display 5999
LCD size 5.7"
Ports USB host
Power 100 - 240 V, 50/60 Hz, 1.5 A
Dimensions 268 × 168 × 60 mm
Weight 1.8 kg

UNI-T UTD1102C Handheld Digital Oscilloscope Package

  • Digital oscilloscope UNI-T UTD1102C (1 pc.)
  • Probe (2 pcs.)
    • 10×
  • Current voltage convertor (2 pcs.)
    • UT-M03
    • UT-M04
  • Power cord (1 pc.)
  • Test lead (1 pc.)
  • DC adaptor (1 pc.)
  • User manual (1 pc.)
  • Carrying bag (1 pc.)
Read more
Description

UNI-T UTD1102C handheld digital oscilloscope is a dual channel oscilloscope with 100 MHz bandwidth, 500 MS/s sample rate and 2 × 512 K memory length. There is USB host for external devices connection. UNI-T UTD1102C digital oscilloscope also performs multimeter functions measuring AC/DC voltage and current, resistance, capacity and performing diode and continuity check.

UNI-T UTD1102C Handheld Digital Oscilloscope Features

  • Dual channel bandwidth 100 MHz
  • Sampling rate 500 MS/s
  • Equivalent sampling rate 25 GS/s
  • 5 mathematic functions: adding, subtraction, multiplying, division, FFT
  • Multimeter functions
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance
  • Continuity buzzer
  • Diode check
  • Internal memory 2 × 512 k
  • Two switchable probes
  • Trend diagram
  • 5.7” color LCD screen
  • Built-in USB host

UNI-T UTD1102C Handheld Digital Oscilloscope Technical Specifications

Bandwidth 100 MHz
Rise time ≤ 3.5 ns
Real-time sampling rate 500 MS/s
Equivalent sampling range 25 GS/s
Vertical sensitivity 5 mV ~ 50 V/div
Record length (max) 2 × 512 k
Scan time base 5 ns ~ 50 s/div
Trigger type Edge, Pulse, Video and Alternate
Automatic waveform measurements 27
Frequency counter 6 digits frequency counter
Maths functions Add, Subtract, Multiply, Divide, FFT
Multimeter
DC voltage 600 mV / 6 V / 60 V / 600 V / 1000 V: ±(1% + 5 digits)
AC voltage
(45 Hz ~ 400 Hz)
600 mV / 6 V / 60 V / 600 V / 700 V:
± (1.2% + 5 digits), frequency: <200 Hz
± (1.5% + 5 digits), frequency: ≥200 Hz
DC current 6 mA / 60 mA / 600 mA: ±(1.2% + 5 digits)
6 A: ±(1.5% + 5 digits)
AC current
(45 Hz ~ 400 Hz)
6 mA / 60 mA / 600 mA: ±(2% + 5 digits)
6 A: ±(2.5% + 5 digits)
Resistance 600 Ω / 6 MΩ / 60 MΩ : ±(1.5% + 5 digits)
6 kΩ / 60 kΩ / 600 kΩ : ±(1.2% + 5 digits)
Capacitance 6 nF / 6 mF: ±(5% + 10 digits)
60 nF / 600 nF / 6 μF / 60 μF / 600 μF: ±(4% + 5 digits)
General characteristics
Max.display 5999
LCD size 5.7"
Ports USB host
Power 100 - 240 V, 50/60 Hz, 1.5 A
Dimensions 268 × 168 × 60 mm
Weight 1.8 kg

UNI-T UTD1102C Handheld Digital Oscilloscope Package

  • Digital oscilloscope UNI-T UTD1102C (1 pc.)
  • Probe (2 pcs.)
    • 10×
  • Current voltage convertor (2 pcs.)
    • UT-M03
    • UT-M04
  • Power cord (1 pc.)
  • Test lead (1 pc.)
  • DC adaptor (1 pc.)
  • User manual (1 pc.)
  • Carrying bag (1 pc.)
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
Storage Capacity
  • 1 MB
Bandwidth
  • 100 MHz
Type
  • portable
  • multimeter
Sample Rate
  • 500 MS/s
