Handheld Fusion Splicer Jilong KL-500E

id: 894445
8 kg
Availability in stock: HK
Warranty: 12 month (s)
9 seconds splice time and 30 seconds heat time. Core-core or clad-clad alignment, PAS technology. Designed for splicing SM, MM, NZDS optical fibers.
USD 1300.00
Add to cart
USD 1300.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Delivery
Payment
Warranty
Overview

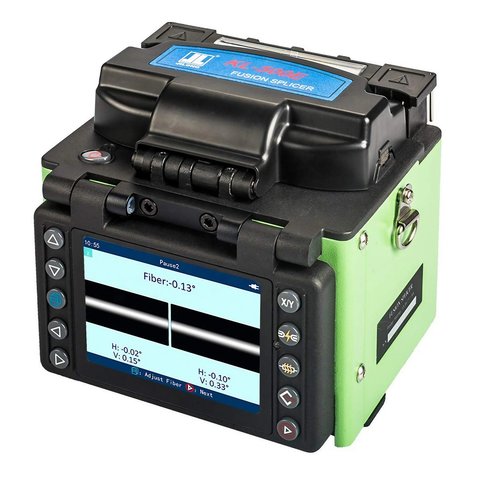

Jilong KL-500E is a handheld and portable fusion splicer. Splicing time: 9 seconds; heating time: 30 seconds. Core-Core or Clad-Clad Alignment. Applicable fibers are SM, MM, DS, NZDS.

Features

  • Core-Core or Clad-Clad Alignment.
  • Core-to-core alignment by PAS Technology (PAS: Profile Alignment System).
  • Single view & simultaneous view of X or Y axes.
  • Display: fiber cleaved angle, fiber offset angle, inside temperature, ambient temperature, heater temperature, air pressure and battery voltage.
  • Image turn over.
  • Auto power off.
  • Device's weight is only 1.2 kg (without battery).
  • 3.5 inch color LCD.
  • Clear fiber core displaying.
  • Splicing time: 9 seconds; heating time: 30 seconds.
  • Intuitive interface and smart menu.
  • SOC and 3-in-one fiber clamp available.
  • Software upgrade via USB interface.

Technical Specifications

Applicable fibers SM, MM, DS, NZDS
Fiber diameter Cladding diameter: 80-150 μm
Fiber count Single
Fiber cleaved length 12~16 mm (coating diameter: 250 µm)
Average splice loss 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS)
Typical splicing time Typical 9 sec (standard SM fiber)
Return loss >60 dB
Splicing mode Auto, Calibrate, Normal, Special
Fiber aligning method Meticulous, Core, Clad, Manual
Splicing program 53 (templet), 40 (user)
Tube heating program 9 (templet), 24 (user)
Tube typical heating time Typical 30 sec
Applicable sleeves 60 mm, 40 mm
Storage of splice result 4000 results, 20 parameter per result
Fiber image magnification 120X (X or Y view),60X  (X and Y view)
Battery capacity typical 300 cycles (splicing and heating)
Display 3.5 inch color LCD
Tension test 2 N
Electrode life 2500 splicing cycles
Interface USB
Power supply AC 100-240V with AC adapter
Inner Li-battery (5200 mAh)  DC 13.5 V
Operating condition 0 ~ 5000 m above sea level; –10 ~ 50°C; max wind velocity of 15 m/s
Dimensions 125 mm × 105 mm × 113 mm
Weight 1.3 kg with battery

Package Contents

  • Handheld Fusion Splicer Jilong KL-500E — 1 pc.
  • Fiber Cleaver — 1 pc.
  • Fiber Stripper — 1 pc.
  • Carrying Case — 1 pc.
  • Spare Electrodes — 2 pcs.
  • Cooling Tray — 1 pc.
  • Cleaning Tools — 1 set
  • Power Module — 1 pc.
  • Manual — 1 pc.
  • Power Supply Cord — 1 pc.
  • USB Cable — 1 pc.
