Handheld Fusion Splicer Jilong KL-510

id: 894446
Handheld Fusion Splicer Jilong KL-510
Overview
Description
Delivery
Payment
Warranty
USD 839.00

Overview

8 kg
Availability in stock: HK
Warranty: 12 months
Compact device weighing 1.1 kg. 9 seconds splice time and 30 seconds heat time. Core-core or clad-clad alignment Designed for splicing SM, MM, NZDS optical fibers. Read more
USD 839.00
USD 839.00
Impossible to estimate the shipping cost
Note! This item is shipped within 10 working days.

Description

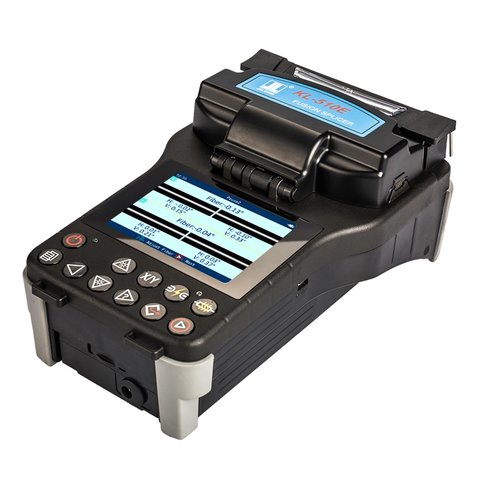

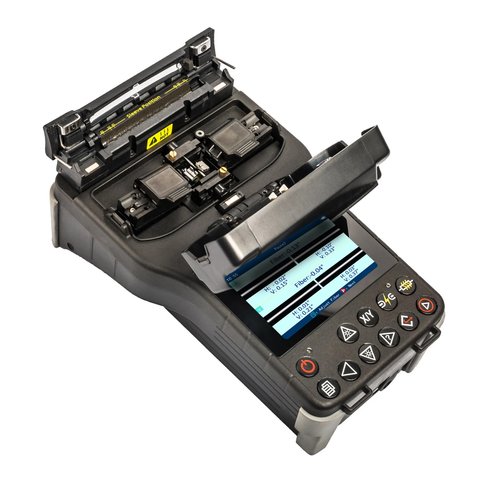

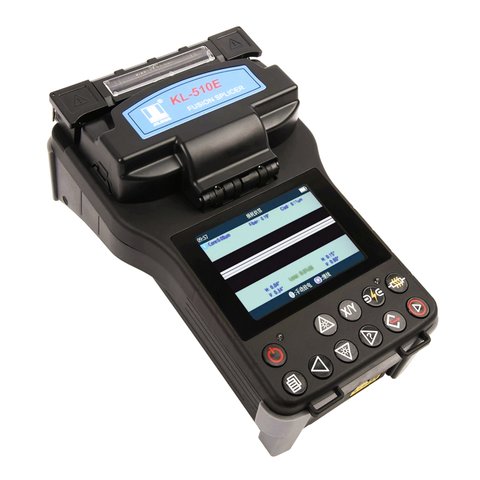

Jilong KL-510is a handheld and portable fusion splicer. The weight of the device is only 1.1 kg, dimensions 193 mm × 125 mm × 85 mm. Splicing time: 9 seconds; heating time: 30 seconds. Core-Core or Clad-Clad Alignment. Applicable fibers are SM, MM, DS, NZDS.

Features

  • Core-Core or Clad-Clad Alignment.
  • Core-to-core alignment by PAS Technology (PAS: Profile Alignment System).
  • Single view & simultaneous view of X or Y axes.
  • Display: fiber cleaved angle, fiber offset angle, inside temperature, ambient temperature, heater temperature, air pressure and battery voltage.
  • Auto power off.
  • Device's weight is only 1.1 kg (with battery).
  • 3.5 inch color LCD.
  • Splicing time: 9 seconds; heating time: 30 seconds.
  • SOC and 3-in-one fiber clamp available.
  • Software upgrade via USB interface.

Technical Specifications

Applicable fibers SM, MM, DS, NZDS
Fiber diameter Cladding diameter: 80-150 μm
Fiber count Single
Fiber cleaved length 12~16 mm (coating diameter: 250 µm)
Average splice loss 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS)
Typical splicing time Typical 9 sec (standard SM fiber)
Return loss >60 dB
Splicing mode Auto, Calibrate, Normal, Special
Fiber aligning method Meticulous, Core, Clad, Manual
Splicing program 53 (templet), 40 (user)
Tube heating program 9 (templet), 24 (user)
Tube typical heating time Typical 30 sec
Applicable sleeves 60 mm, 40 mm
Storage of splice result 4000 results, 20 parameter per result
Fiber image magnification 120X (X or Y view),60X  (X and Y view)
Battery capacity typical 150 cycles (splicing and heating)
Display 3.5 inch color LCD
Tension test 2 N
Electrode life 2500 splicing cycles
Interface USB
Power supply AC 100-240V with AC adapter
Inner Li-battery (2600 mAh)  DC 13.5 V
Operating condition 0 ~ 5000 m above sea level; –10 ~ 50°C; max wind velocity of 15 m/s
Dimensions 193 mm × 125 mm × 85 mm
Weight 1.1 kg with battery

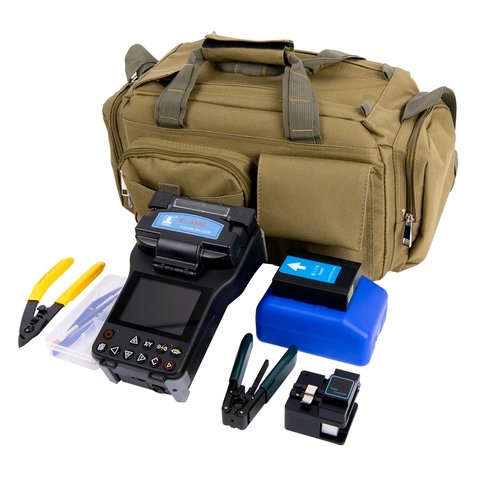

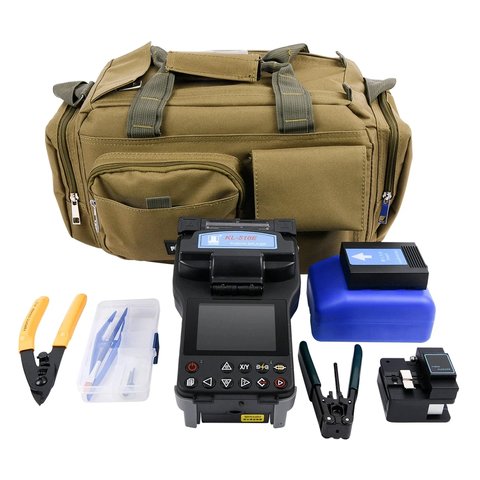

Package Contents

  • Handheld Fusion Splicer Jilong KL-510 — 1 pc.
  • Fiber Cleaver — 1 pc.
  • Fiber Stripper — 1 pc.
  • Carrying Case — 1 pc.
  • Spare Electrodes — 2 pcs.
  • Cooling Tray — 1 pc.
  • Cleaning Tools — 1 set
  • Power Module — 1 pc.
  • AC Adapter — 1 pc.
  • Manual — 1 pc.
  • Power Supply Cord — 1 pc.
