Description

UNI-T UT505A Handheld Insulation Resistance Tester with high accuracy, stable performance and a wide range of functions.

Features

  • Handheld, portable design with large-size screen
  • Easy to use
  • True RMS
  • Backlight
  • Measure insulation resistance up to 20.0GΩ
  • Selectable test voltages: 50V, 100V, 250V, 500V and 1000V
  • PASS/FAIL compare function
  • DAR and polarisation index function

Video

Youtube video

Technical Specifications

Function Range Best Accuracy
Insulation Resistance (Ω) Test Voltage 50V/100V/250V/500V/1000V 0%~10%
50 V 0.1 MΩ ~ 50.0 MΩ ±(3%+5)
100 V 0.1 MΩ ~ 100.0 MΩ ±(3%+5)
250 V 0.01 MΩ ~ 200.0 MΩ ±(1.5%+5)
500 V 0.01 MΩ ~ 500 MΩ ±(1.5%+5)
1000 V 0.1 MΩ ~ 2000 MΩ ±(1.5%+5)
2.0 GΩ ~ 9.9 GΩ ±(10%+3)
10.0 GΩ ~ 20.0 GΩ ±(20%+10)
Load Current 50 V (R = 50 KΩ) 1 mA 0%~10%
100 V (R = 100 KΩ) 1 mA 0%~10%
250 V (R = 250 KΩ) 1 mA 0%~10%
500 V (R = 500 KΩ) 1 mA 0%~10%
1000 V (R = 1 MΩ) 1 mA 0%~10%
Short Circuit Current   <2mA
Low Resistance (Ω) 0.01 Ω ~ 20.00 KΩ (about 5.0V/>200mA) ±(1.5%+3)
DC Voltage (V) 0.0 V ~ 600.0 V ±(2%+3)
AC Voltage (V) 0.0 V ~ 600.0 V (45 Hz ~ 1 KHz) ±(2%+3)
General Characteristics
Power 1.5 V Batteries (LR6) × 6
LCD Size 78 mm x 59 mm
Product Net Weight 630 g
Product Size 103 mm x 225 mm x 59 mm

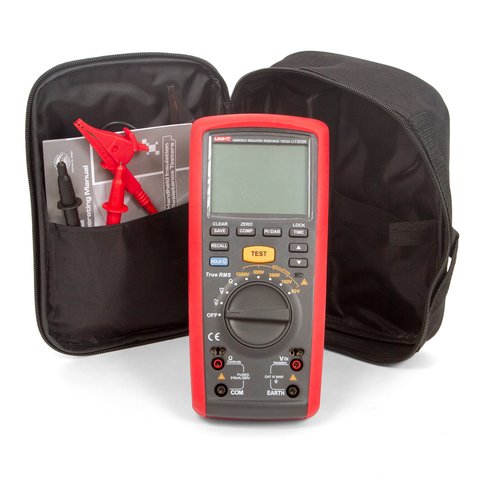

Package Contents

  • UNI-T UT505A Insulation Tester — 1 pc.
  • Test Lead — 2 pcs.
  • Alligator Clip — 2 pcs.
  • Test Probe — 2 pcs.
  • 1.5V AA Alkaline Battery — 6 pc.
  • User Manual — 1 pc.
  • Carrying Case — 1 pc.
Specifications
Type
  • digital
Max. voltage
  • 1000 V
Max. measurable resistance
  • 20 000 MΩ
