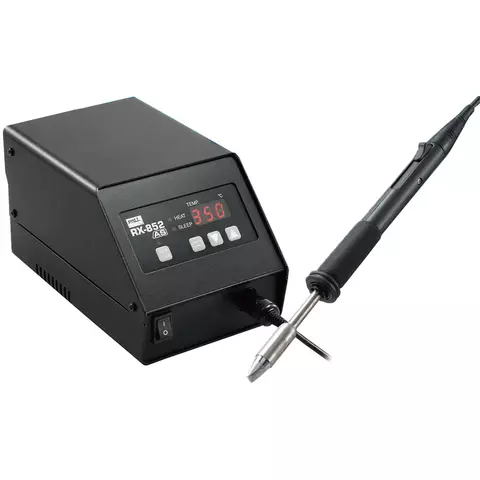

High-Power Lead-Free Soldering Station GOOT RX-852AS
id: 10592
High-Power Lead-Free Soldering Station GOOT RX-852AS
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview

Made in Japan
6.7 kg 220 V Warranty: 12 months
Temperature controlled soldering station Goot RX-852AS is perfect high-power tool for heavy load work.
You may also like
Description
Temperature controlled soldering station Goot RX-852AS is a perfect high-power tool for heavy load work.
Features
- Excellent heat recovery. Excellent heat recovery is achieved by the combination of a 150w-compacthigh-output-heater and a high-sensitivity-sensor.
- Fastest in its class. Reaches 350 °C in 14 seconds. When using the RX-80HRT tip, 350 °C is reached in 6 seconds.
- Easy-change tip (PAT.P). Slide–change tip. No tools or heat resistant pads are needed.
- Thick iron plating for lead-free soldering. Complete lineup of tips with thick iron plating to prevent erosion. RX80HRT tips can also be used. 35 different shapes of tips are available, including the 27 optional tips for the RX-802AS.
- Sleep function (PAT.). Automatically lowers the tip temperature when inactive for a preset period of time, preventing any overheating. The preset period of time is user definable. The shutdown function can also be used at the same time.
- Exiting the sleep function (PAT.P). The sleep function is exited by thermal fluctuation of the tip, for example, when the tip comes into contact with the cleaner/sponge.
- Replacement Tip with Integrated Heater.
-
Keylock function (PAT.). Keylock by PIN (personal identification number). No need for tools or cards. The RX-852AS series tips are interchangeable with the RX-802AS series, providing a
wide variety. - Shutdown function. Automatically switches off when inactive for a preset period of time.The shutdown function assures that the station is turned off even if you forget to turn off the power switch. This function can be used in conjunction with the sleep function.
Technical specifications
Read more
Description
Temperature controlled soldering station Goot RX-852AS is a perfect high-power tool for heavy load work.
Features
- Excellent heat recovery. Excellent heat recovery is achieved by the combination of a 150w-compacthigh-output-heater and a high-sensitivity-sensor.
- Fastest in its class. Reaches 350 °C in 14 seconds. When using the RX-80HRT tip, 350 °C is reached in 6 seconds.
- Easy-change tip (PAT.P). Slide–change tip. No tools or heat resistant pads are needed.
- Thick iron plating for lead-free soldering. Complete lineup of tips with thick iron plating to prevent erosion. RX80HRT tips can also be used. 35 different shapes of tips are available, including the 27 optional tips for the RX-802AS.
- Sleep function (PAT.). Automatically lowers the tip temperature when inactive for a preset period of time, preventing any overheating. The preset period of time is user definable. The shutdown function can also be used at the same time.
- Exiting the sleep function (PAT.P). The sleep function is exited by thermal fluctuation of the tip, for example, when the tip comes into contact with the cleaner/sponge.
- Replacement Tip with Integrated Heater.
- Keylock function (PAT.). Keylock by PIN (personal identification number). No need for tools or cards. The RX-852AS series tips are interchangeable with the RX-802AS series, providing a
wide variety. - Shutdown function. Automatically switches off when inactive for a preset period of time.The shutdown function assures that the station is turned off even if you forget to turn off the power switch. This function can be used in conjunction with the sleep function.
Technical specifications
Voltage | 220 V AC 50/60Hz | |
Power Consumption | 160 W | |
Soldering Unit Voltage/ Consumption | 24 V AC / 150 W | |
Temperature Setting Range | 50–450 °C | |
Insulation Resistance | 100M Ohm and above | |
Dimensions | Soldering Unit | 174 mm ( w/o cord bushing ) |
Control Unit | 194(L) × 116(W) × 105(H) mm | |
Weight | Soldering Unit | Approx. 39 g ( w/o cord ) |
Control Unit | Approx. 4.8 kg ( w/o cord ) | |
Leak Voltage | 2 mV and below | |
Ground Resistance | 2 Ohm and below | |
Control Unit to Soldering Unit Cord Length | 1.5 m datachable cord, 3 core cable | |
Power Cord Length | 1.5 m | |
Accessory | Stand (ST-20), Standard tip (5D), Tip stand |
