Hot Air Rework Station AOYUE 852A++ with Vacuum Pick-up

id: 8407
Hot Air Rework Station AOYUE 852A++ with Vacuum Pick-up
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 99.00
Notify
when in stock
Overview
5.5 kg 220 V Warranty: 12 months
Antistatic performance. "Stand-by" mode. Temperature and airflow sensor control. Power: 500 W.
USD 99.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 99.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Hot Air Rework Station Accta 301
Bestseller
Add to wishlist
Hot Air Rework Station Accta 301
USD 129.00
Add to wishlist
Add to cart
Compact design, temperature display, hot air gun auto switch-off, 50 W soldering iron, 350 W hot air gun, soldering iron and hot air gun temperature range: 80-480°C.
Bestseller
Made in Ukraine
Availability in stock: HK
Shipping cost
ID: 4060 3.2 kg 220
Hot Air Rework Station Accta 401
Bestseller
Add to wishlist
Hot Air Rework Station Accta 401
USD 169.00
Add to wishlist
Add to cart
Soldering station for operation with soldering tips of Hakko T12 standard. Soldering iron power: 70 W, heat gun power: 350 W. The package includes one original Hakko tip.
Bestseller
Made in Ukraine
Availability in stock: HK
Shipping cost
ID: 4040 3 kg 220

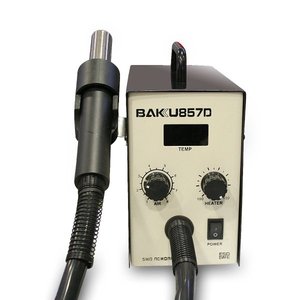

Hot Air Rework Station BAKU BK 857D
Hot Air Rework Station BAKU BK-857D
USD 47.00
Add to cart
Powerfull and compact ESD-safe hot air rework station. Designed for reworking of the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC, BGA, etc). Temperature range 100 - 450 ºC.
Availability in stock: HK
Shipping cost
ID: 832621 3 kg 220
Description

Soldering station AOYUE-852A++  has a built-in vacuum pickup (extractor). Fine flow force  adjustment for work with different components. Built-in temperature sensor controls temperature stability.

Features

  • Airflow and temperature sensor control. Manometer used for quick installation of hot air gun airflow pressure. Digital temperature and airflow pressure indication.
  • If hot air gun is in no activity during 15 minutes the station starts stand-by mode. Station starts working with the previous settings when hot air gun is removed from the holder.
  • Discrete temperature adjustment AOYUE-852A++ allows one to set required temperature very quickly and accurate within 1°C.
  • Reset push button allows resetting adjusted parameters.
  • Reliable diaphragm pump.
  • Automatic cooling is provided for protection of the heating element after station switches off.
  • 4 replaceable nozzles are included into base set (1124, 1130 and 1197).
  • Antistatic station performance enables to work with static-sensitive components.
  • 5A cutout fuse located on the back panel.

Technical Specifications

Main unit

Temperature range

100 - 480 °C

Temperature control

Sensory, discrete

Airflow control

Sensory, discrete

Power Consumption

500 W (max.)

Operating voltage

220 V

Airflow

24 L /min (max)

Pump

803 (diaphragm)

Dimensions 131 × 121 × 192 mm

Nozzles

1124, 1130, 1197
Hot Air Gun
Heating element

10094 (4-pin, with nichrome concertina wire)

Nozzle diameter

21,5 mm

Airflow

Straight

Package includes

  • Hot Air Soldering Station Aoyue-852A++ – 1pc.
  • Hot air gun holder – 1pc.
  • Nozzles – 3pcs.
  • Power cord, 1 m – 1pc.
  • Manual – 1pc.
  • Foam frame package box – 1pc.
Read more
Description

Soldering station AOYUE-852A++  has a built-in vacuum pickup (extractor). Fine flow force  adjustment for work with different components. Built-in temperature sensor controls temperature stability.

Features

  • Airflow and temperature sensor control. Manometer used for quick installation of hot air gun airflow pressure. Digital temperature and airflow pressure indication.
  • If hot air gun is in no activity during 15 minutes the station starts stand-by mode. Station starts working with the previous settings when hot air gun is removed from the holder.
  • Discrete temperature adjustment AOYUE-852A++ allows one to set required temperature very quickly and accurate within 1°C.
  • Reset push button allows resetting adjusted parameters.
  • Reliable diaphragm pump.
  • Automatic cooling is provided for protection of the heating element after station switches off.
  • 4 replaceable nozzles are included into base set (1124, 1130 and 1197).
  • Antistatic station performance enables to work with static-sensitive components.
  • 5A cutout fuse located on the back panel.

Technical Specifications

Main unit

Temperature range

100 - 480 °C

Temperature control

Sensory, discrete

Airflow control

Sensory, discrete

Power Consumption

500 W (max.)

Operating voltage

220 V

Airflow

24 L /min (max)

Pump

803 (diaphragm)

Dimensions 131 × 121 × 192 mm

Nozzles

1124, 1130, 1197
Hot Air Gun
Heating element

10094 (4-pin, with nichrome concertina wire)

Nozzle diameter

21,5 mm

Airflow

Straight

Package includes

  • Hot Air Soldering Station Aoyue-852A++ – 1pc.
  • Hot air gun holder – 1pc.
  • Nozzles – 3pcs.
  • Power cord, 1 m – 1pc.
  • Manual – 1pc.
  • Foam frame package box – 1pc.
Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Soldering Iron Power
  • No soldering iron
Hot Air Gun Power
  • 500 W
Desoldering Gun
  • Non-available
