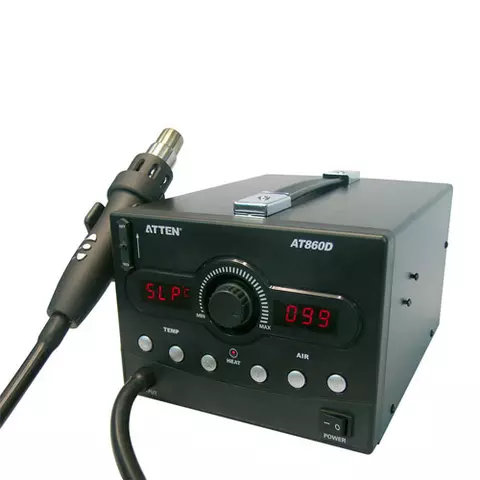

Hot Air Rework Station ATTEN AT860D
id: 818801
Hot Air Rework Station ATTEN AT860D
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 158.00
Overview
7.2 kg 220 V Warranty: 6 months
A hot air rework station with output power of 800 W (max) and temperature range within 100 to 500ºC. Read more
USD 158.00
Buy wholesale and save
You may also like
Soldering station for operation with soldering tips of Hakko T12 standard. Soldering iron power: 70 W, heat gun power: 350 W. The package includes one original Hakko tip.
Made in Ukraine
Availability in stock:
HK
ID: 4040 3.5 kg 220
Description
A hot air rework station with output power of 800 W (max) and temperature range within 100 to 500ºC.
User Manual
Download ATTEN AT860D hot air rework station user manualFeatures
- Dual window digital display with temperature, wing flux and parameter setup
- 800W high power heating element
- High flux pump for better power efficient
- Display temperature value in ºC or ºF
- Card type device management in order to avoid accidental changing of setting parameters by the user
- Automatic dormancy function to ensure reduced energy consumption by the equipment, extending the life of the heating element
- Automatic power off
- Malfunction alert function
Technical Specifications
| Input Voltage Range | 220 V AC ± 10% 50 Hz / 110 V AC ± 10% 60 Hz |
| Output power | 800 W (max) |
| Temperature range | 150ºC - 500ºC (302ºF - 932ºF) |
| Temperature accuracy | ±10ºC |
| Temperature correction | ±50ºC (-58ºF ~ 122ºF) |
| Air volume range | 020 - 099 |
| Malfunction alert | If it shows "H-E", the hot core may be damaged If it shows "S-E", sensors or devices may be damaged |
| Sleep mode | If temperature is lower than 100ºC/ 212ºF, machine automatically cuts off power supply and the temperature display shows "SLP" |
Specifications
| Pump type |
|
| Design type |
|
| Vacuum pick-up tool |
|
| Desoldering Pump |
|
| Power Supply |
|
| Soldering Iron Power |
|
| Hot Air Gun Power |
|
| Desoldering Gun |
|
