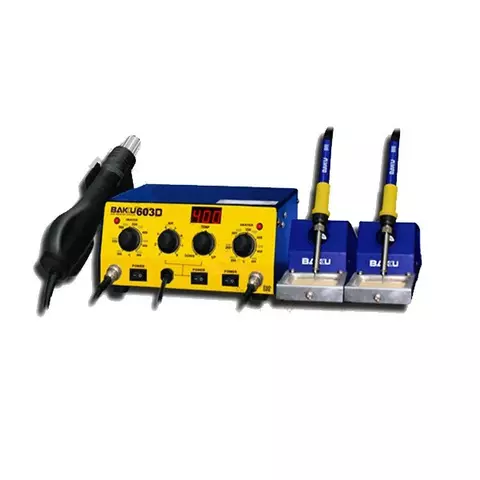

BAKU BK-603D is a powerfull ESD-safe microprocessor controlled rework station which can be used in medium and large scale service centers. BAKU BK-603D is suitable for soldering and desoldering components, such as SOIC, PLCC, BGA, etc. (especially for flat cables and cable connectors). BAKU BK-603D rework station temperature range is 150 - 500 ºC.
Features
- 3-digit LCD display.
- Antistatic construction of the station module, soldering iron and hot air gun.
- Accurate temperature control (±1 °C).
- LED indicator.
Application
- Complete range of rework applications in medium and large scale service centers.
- Mobile and radio systems devices repair.
- Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair.
- LAN, network nodes, and military communications systems equipment repair.
Technical Specifications
| Power Input |
220 V / 50 Hz |
| Power Consumption |
550 W |
| Soldering Iron Temperature Range |
200 °C ~ 480 °C |
| Hot Air Gun Temperature Range |
150 °C ~ 500 °C |
| Air Flow |
120 L/min (max) |
| Temperature Stability |
±1 °C |
| Dimensions |
120 x 220 x 260 mm |
| Weight |
2.06 kg |
Package Contents
- BAKU BK-603D rework station module — 1 pc.
- Soldering iron — 2 pcs.
- Hot air gun — 1 pc.
- Stand for soldering iron — 2 pc.
- Power cord — 1 pc.
- User manual — 1 pc.
