Hot Air Rework Station with IR Preheater AOYUE Int866 (110 V)

id: 850607
7.5 kg 110 V Warranty: 12 month (s)
Powerful hot air rework station that combines functionality of hot air gun (400 W), soldering iron (60 W) and IR preheater (400 W).
USD 156.00
Notify
when in stock
USD 156.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

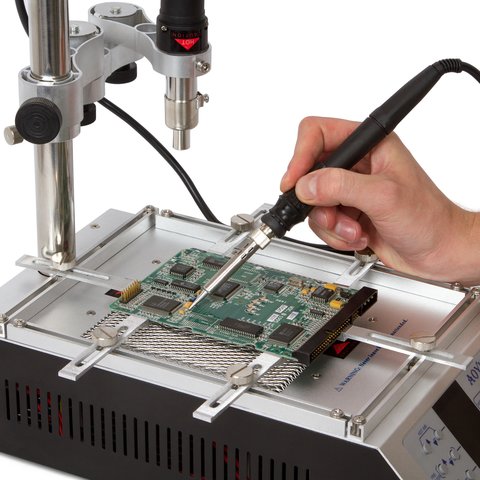

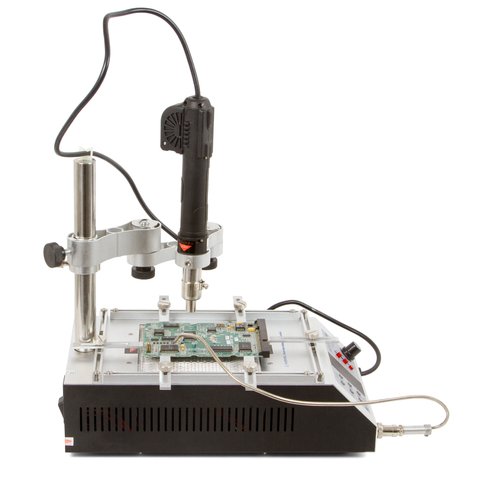

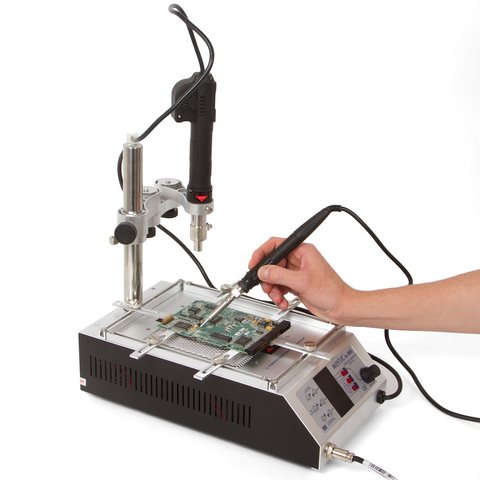

AOYUE Int866 is a powerful hot air rework station that combines functionality of hot air gun (400 W), soldering iron (60 W) and IR preheater (400 W). AOYUE Int866 can be used for recovering CBGA, CCGA, CSP, QFN, MLF, PGA and other BGA components, as well as replacement of specific components.

Features

  • Microprocessor-controlled rework station.
  • Comes with hot air gun with stand, soldering iron, IR preheater and temperature probe.
  • Digital control and display of temperature.
  • Built-in auto-cooling.
  • Built-in auto-sleep mode for soldering iron.
  • Compatibility with air nozzles of various types.
  • Compatibility with different kind of soldering iron tips.

Technical Specifications

Main station
Voltage 110 V
Station dimensions, W × H × D 192 × 100 × 325 mm
Weight 6.58 kg
Soldering iron
Power consumption 60 W
Temperature range 200 °C - 480 °C / 392 °F - 896 °F
Heating element ceramic heater
Output voltage 24 V
Hot air gun
Power consumption 400 W
Temperature range 100 °C - 480 °C / 212 °F - 896 °F
Heating element metal heating core
Pump/motor type sirocco fan
Preheater
Power consumption 400 W
Temperature range 100 °C - 480 °C / 212 °F - 896 °F
Heating element quartz crystal

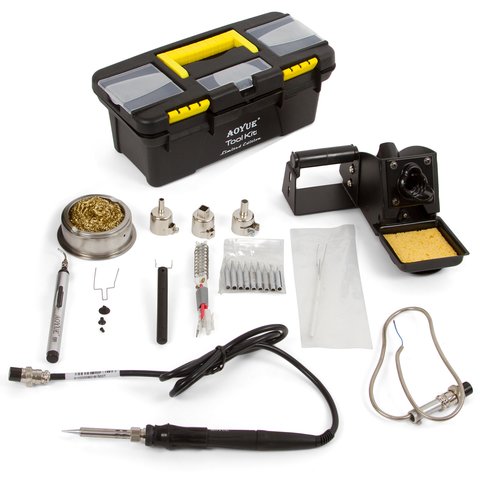

Package Contents

  • AOYUE Int866 Hot Air Rework Station (1 pc.)
  • Replacement hot air gun heating element (1 pc.)
  • Temperature probe (1 pc.)
  • Hot air gun stand (1 pc.)
  • 3-segment arm holder (1 pc.)
  • PCB holder (6 pcs.)
  • AT-9 hot air nozzle set (T1194, T1195, T1198, BGA-S)
  • B016 soldering iron with soldering iron tip (1 pc.)
  • Replacement soldering iron heating element (1 pc.)
  • Soldering iron tips (T-0.5C, T-0.8C, T-0.8D, T-1C, T-1.2D, T-1.6D, T-2.4D, T-B, T-LB, T-I)
  • 2663 soldering iron stand (1 pc.)
  • Vacuum pen with 3 vacuum caps (1 set)
  • Tool box (1 pc.)
  • G001 IC pick-up tool (1 pc.)
  • User manual (1 pc.)
  • Power cord (1 pc.)
Specifications
Bottom heater size
  • 12x12 cm
Total power
  • 1000 W
Control type
  • manual
Upper heater type
  • hot air
Bottom heater type
  • quartz
Upper heater power
  • 400 W
