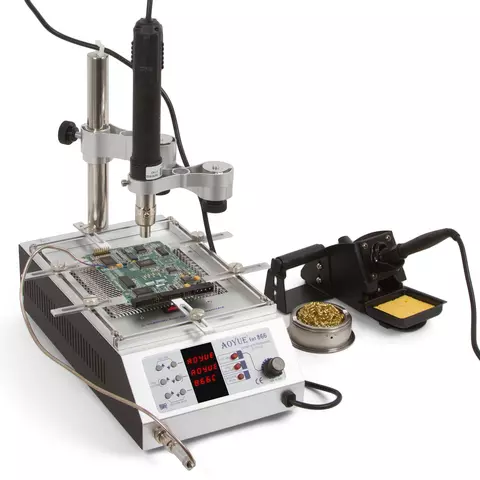

Hot Air Rework Station with IR Preheater AOYUE Int866

No results found for your request.
ID: 847458 10 kg
Out of stock
Warranty: 12 month (s)

USD 156.00

Powerful hot air rework station that combines functionality of hot air gun (400 W), soldering iron (60 W) and IR preheater (400 W).
  • Overview
  • Specifications
  • Video
  • Delivery
  • Payment
  • Warranty

Overview

AOYUE Int866 is a powerful hot air rework station that combines functionality of hot air gun (400 W), soldering iron (60 W) and IR preheater (400 W). AOYUE Int866 can be used for recovering CBGA, CCGA, CSP, QFN, MLF, PGA and other BGA components, as well as replacement of specific components.

Features

  • Microprocessor-controlled rework station.
  • Comes with hot air gun with stand, soldering iron, IR preheater and temperature probe.
  • Digital control and display of temperature.
  • Built-in auto-cooling.
  • Built-in auto-sleep mode for soldering iron.
  • Compatibility with air nozzles of various types.
  • Compatibility with different kind of soldering iron tips.

Technical Specifications

Main station
Voltage 220 V
Station dimensions, W × H × D 192 × 100 × 325 mm
Weight 6.58 kg
Soldering iron
Power consumption 60 W
Temperature range 200 °C - 480 °C / 392 °F - 896 °F
Heating element ceramic heater
Output voltage 24 V
Hot air gun
Power consumption 400 W
Temperature range 100 °C - 480 °C / 212 °F - 896 °F
Heating element metal heating core
Pump/motor type sirocco fan
Preheater
Power consumption 400 W
Temperature range 100 °C - 480 °C / 212 °F - 896 °F
Heating element quartz crystal

Video

Package Contents

  • AOYUE Int866 Hot Air Rework Station (1 pc.)
  • Replacement hot air gun heating element (1 pc.)
  • Temperature probe (1 pc.)
  • Hot air gun stand (1 pc.)
  • 3-segment arm holder (1 pc.)
  • PCB holder (6 pcs.)
  • AT-9 hot air nozzle set (T1194, T1195, T1198, BGA-S)
  • B016 soldering iron with soldering iron tip (1 pc.)
  • Replacement soldering iron heating element (1 pc.)
  • Soldering iron tips (T-0.5C, T-0.8C, T-0.8D, T-1C, T-1.2D, T-1.6D, T-2.4D, T-B, T-LB, T-I)
  • 2663 soldering iron stand (1 pc.)
  • Vacuum pen with 3 vacuum caps (1 set)
  • Tool box (1 pc.)
  • G001 IC pick-up tool (1 pc.)
  • User manual (1 pc.)
  • Power cord (1 pc.)

Specifications

Total power
  • 1000 W
Upper heater power
  • 400 W
Upper heater type
  • hot air
Bottom heater type
  • quartz
Bottom heater size
  • 12x12 cm
Control type
  • manual
