Hot Air Rework System QUICK 713 ESD
id: 838074
Hot Air Rework System QUICK 713 ESD
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 555.00
Overview
11.5 kg 220 V Warranty: 6 months
Hot air rework system for soldering and desoldering with a hot air gun and a built-in vacuum pump. Read more
Buy wholesale and save
Description

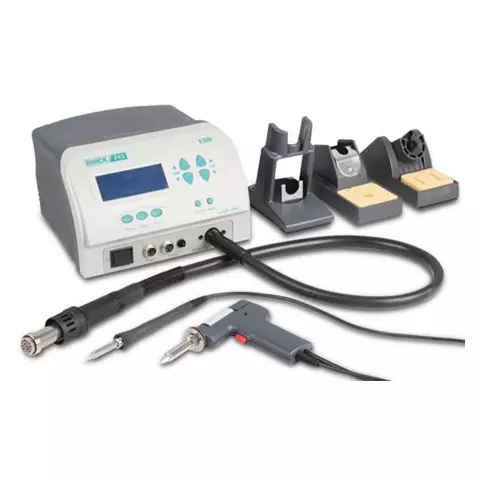

QUICK 713 ESD is a hot air rework system for soldering and desoldering with a hot air gun and a built-in vacuum pump.
Features
- Password locking function.
- Temperature adjusted by buttons, with auto sleeping and shut-off function.
- Digital temperature calibration, easy operation.
- Suction pen inside hot air handle.
- Brushless fan, adjustable, stepless and wide range of air volume, suitable for various occasions.
- Large air volume cooling function, long lifetime heating element. The hot air handle is protected.
- Built-in vacuum pump, powerful suction, no need for an external vacuum system.
- Closed loop of sensor, precise temperature.
Technical Specifications
| Soldering | |
|---|---|
| Power consumption | 60 W |
| Temperature range | 200℃ – 480℃ |
| Sleeping temperature range | 50℃ – 250℃ |
| Sleeping time range | 1-150 min |
| Temperature stability | ±2℃ (stationary air, no load) |
| Ambient temperature (Max) | 40℃ |
| Tip to ground resistance | < 2 Ω |
| Desoldering | |
| Heating power | 90 W |
| Nozzle temperature | 200℃ – 480℃ |
| Pump | Diaphragm |
| Vacuum pressure | 600 mm HG |
| Sleeping time range | 1 – 150 min |
| Hot Air | |
| Power consumption | 1000 W |
| Temperature range | 100℃ – 500℃ |
| Air volume | 1–120 L/min |
| Ambient temperature (Max) | 40℃ |
| Temperature stability | ±2℃ (stationary air, no load) |
Package Contents
- Soldering station QUICK 713 ESD — 1 pc.
- Soldering iron — 1 pc.
- Desoldering pump — 1 pc.
- Hot air gun — 1 pc.
- Soldering iron holder — 1 pc.
- Desoldering pump holder — 1 pc.
- Hot air gun holder — 1 pc.
- Soldering tip cleaning sponge — 1 pc.
- Heat-resistant lining for changing soldering tip — 1 pc.
- Cable for additional grounding — 1 pc.
- Air nozzles (4.4 mm, 6.4 mm, 8.4 mm) — 3 pcs.
- Power cord — 1 pc.
- Ceramic filters — 1 set
- Desoldering nozzles — 1 set
- Rubber seals — 1 set
- User manual — 1 pc.
Compatible Soldering Tips
Specifications
| Pump type |
|
| Design type |
|
| Vacuum pick-up tool |
|
| Desoldering Pump |
|
| Power Supply |
|
| Hot Air Gun Power |
|
| Desoldering Gun |
|
| Soldering Iron Power |
|
