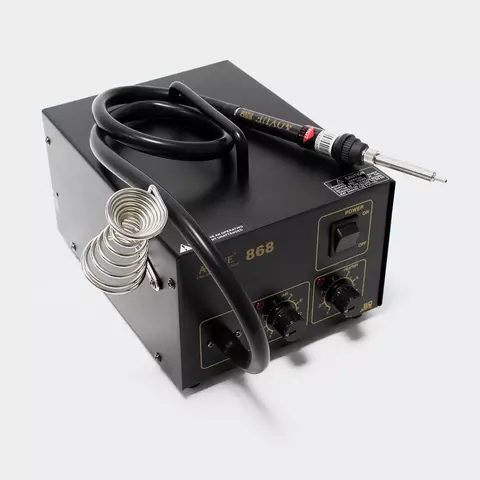

Hot Air Soldering Station AOYUE 868 (110 V)

id: 814124
4 kg 110 V Warranty: 12 month (s)
Thin hot air gun handle for precise SMD soldering. Antistatic performance. Automatic cooling. PTC heating element.
USD 78.00
Notify
when in stock
USD 78.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

Hot Air Soldering Station AOYUE-868 is perfect for SMD precise soldering. Special hot air gun with thin nozzle made for complex combination contactfree soldering and other high-precision working. Package includes 3 nozzles for hot air gun. Accessible design of hot air gun handle. PTC (positive temperature coefficient) advantages – fast heating and durability. Automatic cold air for cooling of heating element after usage. The best to work with integral IC.

   Features:

  • Temperature and airflow analog control.
  • Reliable diaphragm pump.
  • Automatic cool mode (after shutdown) protects heating element.
  • Antistatic performance enables device working with static sensitive components.
  • Soldering station is packed into cardboard box with foam protective frame.
  • Soft rubber legs located on the bottom panel provide equipment steadiness on worktable.
  • There is 5 A fuse on the back panel of the main unit.
Hot Air Gun AOYUE-868 Specifications:
Temperature range 100 °C – 480 °C
Temperature adjustment Analog, smooth
Airflow adjustment Analog, smooth
Power consumption 120W (max.)
Operating voltage 110V
Airflow 23 l/min (max.)
Pump 868 (diaphragm)
Dimensions 245(L) × 188(W) ×128(H) mm
Nozzles S, M, L
Heating element 10092 (2-pins, with nichrome concertina wire)
Nozzle diameter 2,5 mm
Airflow Linear

Package includes:
1.  Hot air soldering station AOYUE - 868 – 1pc.
2.  Hot air gun holder – 1 pc.
3.  Power cable, 1 m – 1 pc.
4.  Nozzles - 3 pcs.
5.  Manual – 1 pc.
6.  Box with foam protective frame – 1 pc.
Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Soldering Iron Power
  • No soldering iron
Desoldering Gun
  • Non-available
Hot Air Gun Power
  • 120 W
