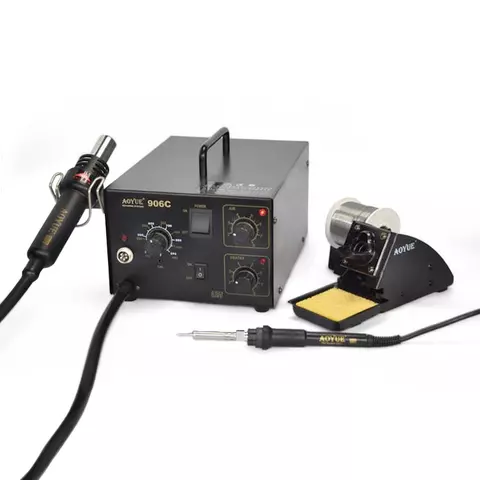

Hot Air Soldering Station AOYUE 906C + Soldering Iron
id: 7120
Hot Air Soldering Station AOYUE 906C + Soldering Iron
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview

5.5 kg 220 V Warranty: 12 months
Antistatic performance. Diaphragm compressor. Temperature: 100-500°C. Ceramic heating element.
You may also like
Description
AOYUE-906 is a hot air soldering station which is equipped with a hot air gun and a soldering iron without smoke absorber. Analog control of hot air gun temperature and airflow, as well as soldering iron temperature adjustment. Package includes 4 hot air gun nozzles.
Features
- Adjustment with handles located on front panel.
- Built-in sensor maintains permanent and accurate temperature settings.
- Soldering iron with antistatic function, fast heating.
- Station is designed for assembling and disassembling of electronic components.
- Compact size body saves space on worktable.
- ESD design with grounding provisions.
- Soldering iron and hot air gun can be adjusted independently of each other.
- Station is equipped with a safe diaphragm pump.
- Automatic cooling activated after station shutdown to provide heating element protection.
- Base package includes 4 replaceable hot air nozzles (1124, 1130, 1196, 1197).
- Antistatic station performance for handling static-sensitive components.
- Soft rubber legs on the bottom panel ensure station stability during operating.
- 3 A Fuse on the back panel of the station.
Technical Specifications
Read more
Description
AOYUE-906 is a hot air soldering station which is equipped with a hot air gun and a soldering iron without smoke absorber. Analog control of hot air gun temperature and airflow, as well as soldering iron temperature adjustment. Package includes 4 hot air gun nozzles.
Features
- Adjustment with handles located on front panel.
- Built-in sensor maintains permanent and accurate temperature settings.
- Soldering iron with antistatic function, fast heating.
- Station is designed for assembling and disassembling of electronic components.
- Compact size body saves space on worktable.
- ESD design with grounding provisions.
- Soldering iron and hot air gun can be adjusted independently of each other.
- Station is equipped with a safe diaphragm pump.
- Automatic cooling activated after station shutdown to provide heating element protection.
- Base package includes 4 replaceable hot air nozzles (1124, 1130, 1196, 1197).
- Antistatic station performance for handling static-sensitive components.
- Soft rubber legs on the bottom panel ensure station stability during operating.
- 3 A Fuse on the back panel of the station.
Technical Specifications
Station | |
---|---|
Temperature range | 100°C – 500°C |
Power consumption | 250 W (max.) |
Dimensions | 190 x122 x245 mm |
Temperature range | 100°C - 500°C |
Soldering iron temperature control | Analog, smooth |
Hot air gun temperature control | Analog, smooth |
Airflow control | Analog, smooth |
Power consumption | 250 W (max.) |
Operating voltage | 220 V |
Air capacity | 24 l/min. (max.) |
Pump | 803 (diaphragm) |
Dimensions | 190 (L)x 122(W) x 245(H) mm |
Soldering iron plug | 5-pins |
Nozzles | 1124, 1130, 1196, 1197 |
Hot air gun | |
Heating element | 10093 (2-pins, with nichrome concertina wire) |
Nozzle diameter | 21,5 mm |
Airflow | Linear |
Temperature range | 100°C - 500°C |
Compressor type | diaphragm |
Power consumption | 450 V |
Soldering iron | |
Temperature range | 200°C - 480°C |
Tip to ground resistance | 2 Ω |
Power consumption | 35 W |
Tip to ground potential | 2 mV |
Heating element | C001 (4-pins, ceramic) |
Packed with standard bit | Aoyue -I |
Total length (without cable) | 190 mm |
Weight | 65 g |
Package Contents
- AOYUE 906C soldering station — 1 pc.
- Hot air gun holder — 1 pc.
- Soldering iron stand — 1 pc.
- IC disassembling tool — 1 pc.
- Nozzles — 4 pcs.
- Power cable, 1 m — 1 pc.
- Manual — 1 pc.
- Packing box with foam protective frame — 1 pc.
Compatible Soldering Tips
Conical Soldering Tips | ||
---|---|---|
![]() AOYUE T-0.5C |
![]() AOYUE T-0.8C |
![]() AOYUE T-B |
![]() AOYUE T-I |
![]() AOYUE T-LB |
![]() AOYUE T-S4 |
![]() AOYUE T-S8 |
![]() AOYUE T-SB |
![]() AOYUE T-SI |
Bevel Type Soldering Tips | ||
![]() AOYUE T-1C |
![]() AOYUE T-1.5CF |
![]() AOYUE T-1.5CM |
![]() AOYUE T-2C |
![]() AOYUE T-2CF |
![]() AOYUE T-2CM |
![]() AOYUE T-3C |
![]() AOYUE T-3CF |
![]() AOYUE T-3CM |
![]() AOYUE T-4C |
![]() AOYUE T-4CF |
![]() AOYUE T-4CM |
![]() AOYUE T-S6 |
![]() AOYUE T-S7 |
|
Chisel Type Soldering Tips | ||
![]() AOYUE T-0.8D |
![]() AOYUE T-1.2D |
![]() AOYUE T-1.2LD |
![]() AOYUE T-1.6D |
![]() AOYUE T-2LD |
![]() AOYUE T-2.4D |
![]() AOYUE T-3.2D |
![]() AOYUE T-3.2LD |
![]() AOYUE T-S3 |
![]() AOYUE T-S9 |
||
Bent Type Soldering Tips | ||
![]() AOYUE T-0.2RB |
![]() AOYUE T-1.8H |
![]() AOYUE T-H |
Knife Type Soldering Tips | ||
![]() AOYUE T-K |
||
Soldering Tips for SMD | ||
![]() AOYUE T-R |
![]() AOYUE T-RT |
