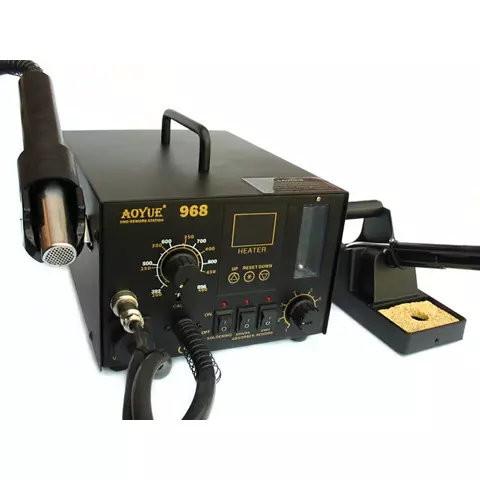

Hot Air Soldering Station AOYUE 968 with Soldering Iron and Smoke Absorber (110 V)

id: 814129
Hot Air Soldering Station AOYUE 968 with Soldering Iron and Smoke Absorber (110 V)
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 110.00
Notify
when in stock
Overview
6.5 kg 110 V Warranty: 12 months
Multifunction hot air soldering station combines hot air gun, soldering iron and smoke absorber functions. This station can be used to rework the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC, BGA, etc).
USD 110.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 110.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Hot Air Rework Station Accta 301A 110 V
Add to wishlist
Hot Air Rework Station Accta 301A (110 V)
USD 129.00
Add to wishlist
Add to cart
Accta 301 offers compact design, temperature display, hot air gun auto switch-off, 50 W soldering iron, 350 W hot air gun, soldering iron and hot air gun temperature range: 80-480°C.
Availability in stock: HK
Shipping cost
ID: 4061 2.75 kg 110
Description

AOYUE 968 is a multifunction hot air soldering station which combines hot air gun, soldering iron and smoke absorber functions. The monitoring system alerts in case the heating element doesn't work.
This station can be used to rework the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC, BGA, etc).

Features

  • Microprocessor controlled ESD safe unit.
  • Environment-friendly repairing system ( hot air gun, soldering iron and smoke absorber).
  • Auto-cool off function: increase the reliable operation of the station and its components.
  • Compatibility with different AOYUE air nozzles.
  • Compatibility with AOYUE T-series tips and other HAKKO-compatible tips.

Application

Read more
Description

AOYUE 968 is a multifunction hot air soldering station which combines hot air gun, soldering iron and smoke absorber functions. The monitoring system alerts in case the heating element doesn't work.
This station can be used to rework the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC, BGA, etc).

Features

  • Microprocessor controlled ESD safe unit.
  • Environment-friendly repairing system ( hot air gun, soldering iron and smoke absorber).
  • Auto-cool off function: increase the reliable operation of the station and its components.
  • Compatibility with different AOYUE air nozzles.
  • Compatibility with AOYUE T-series tips and other HAKKO-compatible tips.

Application

  • Complete range of rework applications in medium and large scale service centers.
  • Mobile and radio systems devices repair.
  • Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair.
  • LAN, network nodes, and military communications systems equipment repair.
  • BGA reballing.

Technical Specifications

Main station
Power input 110 V
Dimensions, mm 188 × 126 × 250
Weight, kg 5.25
Soldering Iron
Power consumption 35 W
Temperature range 200 °C to 480 °C
Heating element Ceramic Heater
Output voltage 24 V
Hot Air Gun
Power consumption 550 W
Temperature range 100 °C to 480 °C
Heating element Metal heating core
Pump type Diaphrag pump
Air capacity 23 l/min (max)
Smoke absorber
Vacuum pressure 600 mm Hg

User Manual

PDF  Download AOYUE 968 User Manual.

Package Contents

  • Main station — 1 pc.
  • Hot air gun — 1 pc.
  • Hot air gun holder — 1 pc.
  • Soldering iron with smoke absorber — 1 pc.
  • Soldering iron holder — 1 pc.
  • Air nozzles (1124, 1130, 1197, 1313) — 4 pc.
  • Filter pads — 1 set.
  • Power cord (1 m) — 1 pc.
  • User manual — 1 pc.
Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Available
Power Supply
  • Non-available
Soldering Iron Power
  • 35 W
Hot Air Gun Power
  • 550 W
Desoldering Gun
  • Non-available
