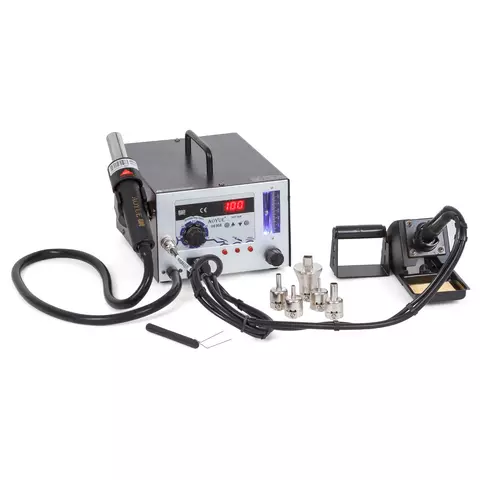

Hot Air Soldering Station AOYUE 968 with Soldering Iron and Smoke Absorber (220 V)

id: 7125
Hot Air Soldering Station AOYUE 968 with Soldering Iron and Smoke Absorber (220 V)
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 110.00
Notify
when in stock
Overview
Rate product
6 kg 220 V Warranty: 12 months
Multifunction hot air soldering station combines hot air gun, soldering iron and smoke absorber functions. Read more
USD 110.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 110.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Hot Air Rework Station Accta 301
Bestseller
Add to wishlist
ID: 4060
Hot Air Rework Station Accta 301
5 (7)
USD 122.00
Add to wishlist
Add to cart
50 W soldering iron, 350 W hot air gun, soldering iron and hot air gun temperature range: 80-480°C, compact design, temperature display, hot air gun auto switch-off.
Made in Ukraine
Availability in stock: HK
Shipping cost
ID: 4060 3.2 kg 220
Hot Air Rework Station Accta 401
Bestseller
Add to wishlist
ID: 4040
Hot Air Rework Station Accta 401
4.6 (5)
USD 187.50
Add to wishlist
Add to cart
Soldering station for operation with soldering tips of Hakko T12 standard. Soldering iron power: 70 W, heat gun power: 350 W. The package includes one original Hakko tip.
Made in Ukraine
Availability in stock: HK
Shipping cost
ID: 4040 3.5 kg 220
Description

An ideal combination of essential tools for the workbench. The most practical workstation in the world. Has built-in smoke extractor that absorbs the fumes created at the source. Eliminates the space hindering smoke absorbing units yet allowing a healthy environment. Microprocessor precisely controls temperature and airflow. Digital display of hot air set and actual temperature as well as its airflow. Microprocessor controlled with self-testing hot air heating core system which warns user when ageing or breakdown of heating core occurs.

SPECIFICATIONS

AOYUE 968
Power Input 220V
Station Dimensions 188(w) x 126(h) x 250(d) mm
hSOLDERING IRONh
Power Consumption 35 W
Temperature Range 200 - 480°C
Heating Element with Tip Ceramic Heater
Output Voltage 24V
Tip to Ground Resistance Below 2 ohms
Tip to Ground Potential Below 2mV
HOT AIR
Power Consumption 550W
Temperature Range 100 - 480°C
Heating Element Metal Heating Core
Nozzle to Ground Resistance Below 2 ohms
Pump/Motor Type Diaphragm Pump
Air Capacity 23 L /min (max)
Automatic Reworking Time 20-9999 seconds
SMOKE ABSORBER
Vacuum pressure 600mm Hg

Package Contents

  • Aoyue 968 Station with hot air gun (1 pc.)
  • Air nozzles (1124, 1130, 1197, 1313)
  • B003 Soldering iron (1 pc.)
  • 2630 Soldering iron holder (1 pc.)
  • Z003 Hot air gun holder (1 pc.)
  • G001 IC Popper (1 pc.)
  • Filter pads (2 pcs.)
  • Power cord (1 pc.)

Compatible Soldering Tips

Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Available
Power Supply
  • Non-available
Soldering Iron Power
  • 35 W
Hot Air Gun Power
  • 550 W
Desoldering Gun
  • Non-available
