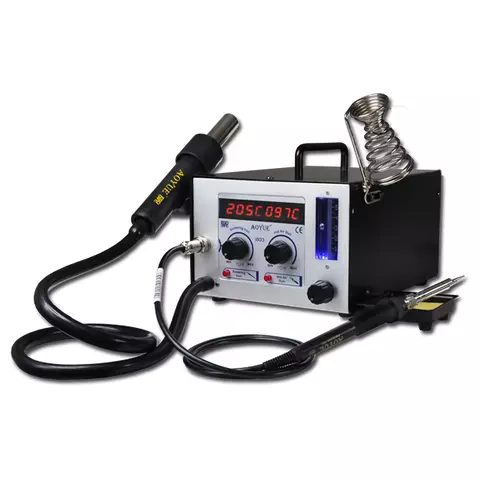

Hot Air Soldering Station AOYUE i803
id: 872405
4.5 kg 220 V Warranty: 12 months
Compact soldering station with adjustable thermostat, digital indication of temperature, and ceramic heater. Temperature range 100 - 480°C. Read more
You may also like
AOYUE i803 compact hot air soldering station with ceramic heater.
Features
- 2-in-1 repairing system combining hot air gun and soldering iron.
- 100% ESD safe.
- Portable control unit with carrying handle.
- Digital control and display of hot air temperature, soldering iron temperature, air pressure with knob type controls for easy use.
- Built-in auto-cooling process that protects the system from excessive heat.
- User configurable sleep mode for additional device protection and power saving.
Technical Specifications
Hot Air Gun | |
---|---|
Power Consumption | 500 W |
Temperature Range | 100 - 480°C |
Heating Element | Metal spiral |
Pump Type | Diaphragm pump |
Air Capacity | 23 L/min (max) |
Soldering Iron | |
Power Consumption | 30 W |
Output Voltage | 24 V |
Temperature Range | 200 - 480°C |
Heating Element | Ceramic Heater |
Tip to Ground Resistance | < 2 Ω |
Tip to Ground Potential | < 2 mV |
General Specifications | |
Power Input | 220 V |
Dimensions | 188 × 250 ×126 mm |
Weight | 5.6 kg |
Package Contents
- Soldering station AOYUE i803 – 1 pc.
- Hot air gun – 1 pc.
- Soldering iron – 1 pc.
- AOYUE 1124 Air nozzle – 1 pc.
- AOYUE 1197 Air nozzle (ø9 mm) – 1 pc.
- IC popper – 1 pc.
- Sponge tray – 1 pc.
- Power cord – 1 pc.
- User manual – 1 pc.
Compatible Soldering Tips
Conical Soldering Tips | ||
---|---|---|
AOYUE T-0.5C |
AOYUE T-0.8C |
AOYUE T-B |
AOYUE T-I |
AOYUE T-LB |
AOYUE T-S4 |
AOYUE T-S8 |
AOYUE T-SB |
AOYUE T-SI |
Bevel Type Soldering Tips | ||
AOYUE T-1C |
AOYUE T-1.5CF |
AOYUE T-1.5CM |
AOYUE T-2C |
AOYUE T-2CF |
AOYUE T-2CM |
AOYUE T-3C |
AOYUE T-3CF |
AOYUE T-3CM |
AOYUE T-4C |
AOYUE T-4CF |
AOYUE T-4CM |
AOYUE T-S6 |
AOYUE T-S7 |
|
Chisel Type Soldering Tips | ||
AOYUE T-0.8D |
AOYUE T-1.2D |
AOYUE T-1.2LD |
AOYUE T-1.6D |
AOYUE T-2LD |
AOYUE T-2.4D |
AOYUE T-3.2D |
AOYUE T-3.2LD |
AOYUE T-S3 |
AOYUE T-S9 |
||
Bent Type Soldering Tips | ||
AOYUE T-0.2RB |
AOYUE T-1.8H |
AOYUE T-H |
Knife Type Soldering Tips | ||
AOYUE T-K |
||
Soldering Tips for SMD | ||
AOYUE T-R |
AOYUE T-RT |
