Hot Air Soldering Station AOYUE Int968A+ (110 V)

id: 845361
7 kg 110 V Warranty: 12 month (s)
Microprocessor-controlled hot air repairing system: Hot Air Gun + Soldering Iron + Smoke Absorber. Input voltage: 110 V.
USD 136.00
Notify
when in stock
USD 136.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

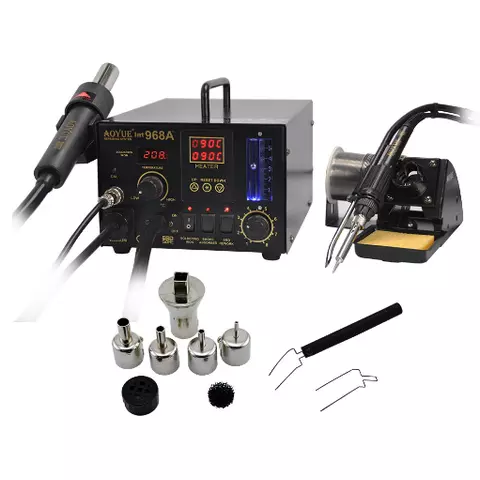

AOYUE Int 968A+ is a microprocessor-controlled environment-friendly repairing system that integrates a Hot Air Gun, a Soldering Iron, and a Smoke Absorber in one unit. Input voltage – 110 V.

Features

  • Microprocessor controlled.
  • Electro-static discharge (ESD) safe unit.
  • Digital Hot Air Gun control display.
  • Knob type Soldering Iron temperature control.
  • Digital control and display of Soldering Iron temperature.
  • Built-in smoke extractor.
  • Solder Iron digital calibration.
  • Sleep mode for soldering iron.
  • Auto-cooling function.
  • Compatibility with various types of air nozzles.
  • Compatibility with different kinds of soldering iron tips.

Technical Specifications

Input voltage 110 V
Main unit dimensions 188 × 126 × 250 mm
Weight 5.25 Kg
SOLDERING IRON
Power Consumption 70 W
Temperature Range 200°C – 480°C
Heating Element Ceramic Heater
Output Voltage 24 V
Tip to Ground Resistance Below 2 Ω
Tip to Ground Potential Below 2 mV
HOT AIR
Power Consumption 550 W
Temperature Range 100°C – 480°C
Heating Element Ceramic / Metal Heating Core
Nozzle to Ground Resistance Below 2 Ω
Pump/Motor Type Diaphragm Pump
Air Capacity 23 L/min
SMOKE ABSORBER
Vacuum Pressure 600 mm Hg

User Manual

Download AOYUE Int968A+ User Manual.

Package Contents

  • Hot Air Soldering Station unit — 1 pc.
  • Soldering Iron with Smoke Absorber — 1 pc.
  • Soldering Iron Holder with Solder Wire Stand — 1 pc.
  • Hot Air Gun and Hot Air Gun Holder — 1 pc.
  • Power Cord — 1 pc.
  • Filter Vacuum Cap — 1 pc.
  • Suction Vacuum Cap — 1 pc.
  • Black Filter Pad (round) — 1 pc.
  • AOYUE 1124 Air Nozzle — 1 pc.
  • AOYUE 1130 Air Nozzle — 1 pc.
  • AOYUE 1196 Air Nozzle — 1 pc.
  • AOYUE 1313 Air Nozzle — 1 pc.
  • AOYUE 1197 Air Nozzle — 1 pc.
  • AOYUE G001 IC Popper — 1 pc.
  • Instruction Manual — 1 pc.
  • Soldering Iron Assembly Guide — 1 pc.
Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Available
Power Supply
  • Non-available
Soldering Iron Power
  • 70 W
Hot Air Gun Power
  • 550 W
Desoldering Gun
  • Non-available
