Hot Air Soldering Station AOYUE Int968A+
id: 845362
Hot Air Soldering Station AOYUE Int968A+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 136.00
Overview
7 kg 220 V Warranty: 12 months
Microprocessor-controlled hot air repairing system: Hot Air Gun + Soldering Iron + Smoke Absorber. Input voltage: 220 V. Read more
USD 136.00
Buy wholesale and save
Description
AOYUE Int 968A+ is a microprocessor-controlled environment-friendly repairing system that integrates a Hot Air Gun, a Soldering Iron, and a Smoke Absorber in one unit. Input voltage – 220 V.
Features
- Microprocessor controlled.
- Electro-static discharge (ESD) safe unit.
- Digital Hot Air Gun control display.
- Knob type Soldering Iron temperature control.
- Digital control and display of Soldering Iron temperature.
- Built-in smoke extractor.
- Solder Iron digital calibration.
- Sleep mode for soldering iron.
- Auto-cooling function.
- Compatibility with various types of air nozzles.
- Compatibility with different kinds of soldering iron tips.
Technical Specifications
| Input voltage | 220 V |
| Main unit dimensions | 188 × 126 × 250 mm |
| Weight | 5.25 Kg |
| SOLDERING IRON | |
|---|---|
| Power Consumption | 70 W |
| Temperature Range | 200°C – 480°C |
| Heating Element | Ceramic Heater |
| Output Voltage | 24 V |
| Tip to Ground Resistance | Below 2 Ω |
| Tip to Ground Potential | Below 2 mV |
| HOT AIR | |
| Power Consumption | 550 W |
| Temperature Range | 100°C – 480°C |
| Heating Element | Ceramic / Metal Heating Core |
| Nozzle to Ground Resistance | Below 2 Ω |
| Pump/Motor Type | Diaphragm Pump |
| Air Capacity | 23 L/min |
| SMOKE ABSORBER | |
| Vacuum Pressure | 600 mm Hg |
User Manual
Download AOYUE Int968A+ User Manual.

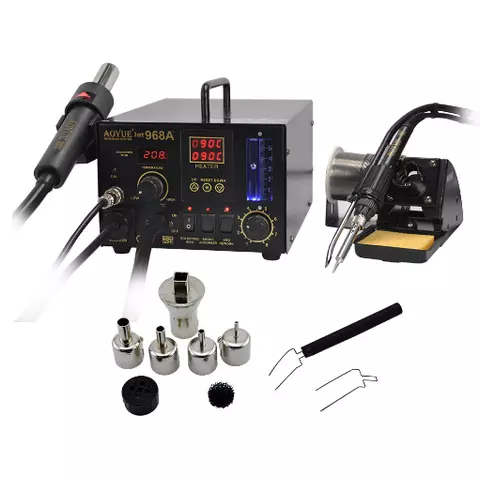

Package Contents
- Hot Air Soldering Station unit — 1 pc.
- Soldering Iron with Smoke Absorber — 1 pc.
- Soldering Iron Holder with Solder Wire Stand — 1 pc.
- Hot Air Gun and Hot Air Gun Holder — 1 pc.
- Power Cord — 1 pc.
- Filter Vacuum Cap — 1 pc.
- Suction Vacuum Cap — 1 pc.
- Black Filter Pad (round) — 1 pc.
- AOYUE 1124 Air Nozzle — 1 pc.
- AOYUE 1130 Air Nozzle — 1 pc.
- AOYUE 1196 Air Nozzle — 1 pc.
- AOYUE 1313 Air Nozzle — 1 pc.
- AOYUE 1197 Air Nozzle — 1 pc.
- AOYUE G001 IC Popper — 1 pc.
- Instruction Manual — 1 pc.
- Soldering Iron Assembly Guide — 1 pc.
Specifications
| Pump type |
|
| Design type |
|
| Vacuum pick-up tool |
|
| Desoldering Pump |
|
| Power Supply |
|
| Soldering Iron Power |
|
| Hot Air Gun Power |
|
| Desoldering Gun |
|
