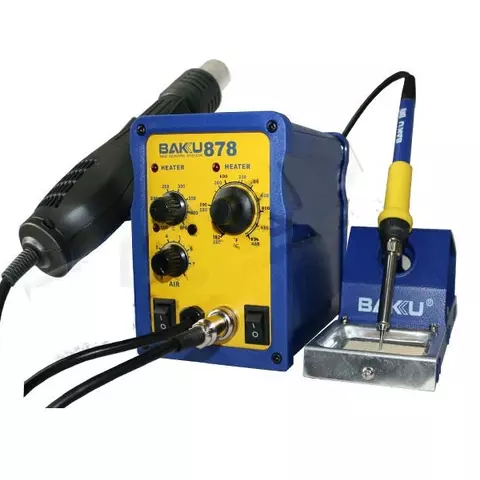

Hot Air Soldering Station BAKU BK-878 (110 V)

id: 844825
2.5 kg 110 V Warranty: 6 month (s)
Powerfull ESD-safe microprocessor controlled hot air soldering station suitable for soldering and desoldering the full range of SMD components. Temperature range 100 - 450 ºC.
USD 43.00
Notify
when in stock
USD 43.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

BAKU BK-878 is a powerfull ESD-safe hot air soldering station that is designed for soldering and desoldering operations with the full range of SMD components, including DIP, SOIC, CHIP, QFP, BLCC, BGA, etc. BAKU BK-878 hot air soldering station temperature range is 100 - 450 ºC.

Features

  • Fast heating
  • Built-in thermal protection
  • Antistatic construction of the station module, hot air gun and soldering iron
  • A wide range of operating temperatures and air flow levels
  • Compatible with AOYUE replacement air nozzles
  • LED-indicators

Technical Specifications

Power Input 110 V /  50 Hz
Power Consumption 400 W
Air Pump Type diaphragm
Temperature Range 100 ºC - 450 ºC
Air Flow 120 L/min (max)
Temperature Stability ±1 °C
Dimensions 138 x 100 x 150 mm

Application

  • Complete range of rework applications in medium and large scale service centers
  • Mobile and radio systems devices repair
  • Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair
  • BGA-reballing

Package Contents

  • BAKU BK-878 soldering station module (1 pc.)
  • Hot air gun (1 pc.)
  • Soldering iron (1 pc.)
  • Stand for soldering iron (1 pc.)
  • Power cord (1 pc.)
  • User manual (1 pc.)
Specifications
Pump type
  • turbine
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Soldering Iron Power
  • 50 W
Hot Air Gun Power
  • 350 W
Desoldering Gun
  • Non-available
