Hot Air Soldering Station Pro'sKit SS-989A (110 V)

id: 833061
Hot Air Soldering Station Pro'sKit SS-989A (110 V)
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
Rate product
5.5 kg 110 V Warranty: 6 months
Multifunction hot air soldering station combines hot air gun and soldering iron. Can be used to rework the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC etc). Read more
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Hot Air Rework Station Accta 301A 110 V
Add to wishlist
ID: 4061
Hot Air Rework Station Accta 301A (110 V)
5 (1)
USD 122.00
Add to wishlist
Add to cart
Accta 301 offers compact design, temperature display, hot air gun auto switch-off, 50 W soldering iron, 350 W hot air gun, soldering iron and hot air gun temperature range: 80-480°C.
Availability in stock: HK
Shipping cost
ID: 4061 2.75 kg 110
Description

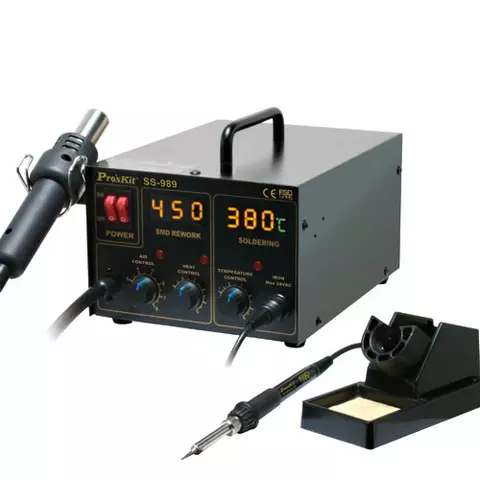

Pro'sKit SS-989A multifunction hot air soldering station combines hot air gun and soldering iron functions. Pro'sKit SS-989A hot air soldering station can be used to rework the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC, etc).

Pro'sKit SS-989A Hot Air Soldering Station User Manual

Download Pro'sKit SS-989A hot air soldering station user manual

Pro'sKit SS-989A Hot Air Soldering Station Features

  • Microprocessor controlled and anti-static implementation.
  • The automatic cooling increases the uptime of the station and its components.
  • Digital indicated temperature of the hot air gun and soldering iron.
  • Compatible with T series soldering iron tips from AOYUE and other HAKKO-compatible tips.
  • Compatible with Replacement Air Nozzles from AOYUE.

Pro'sKit SS-989A Hot Air Soldering Station Technical Specifications

Power Input 110 V /  50 Hz
Power Consumption 700 W
Soldering Power 60 W
Temperature Range 200 °C ~ 480 °C
Desoldering Temperature Range 100 °C ~ 420 °C
Heating Element Metal heating spiral
Pump Type Diaphragm pump
Air Capacity 24 L/min (max)
Temperature Display LED
Dimensions 330 x 275 x 195 mm
Weight 3.70 kg

Pro'sKit SS-989A Hot Air Soldering Station Application

  • Complete range of rework applications in medium and large scale service centers
  • Mobile and radio systems devices repair
  • Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair
  • LAN, network nodes, and military communications systems equipment repair

Pro'sKit SS-989A Hot Air Soldering Station Package Contents

  • Pro'sKit SS-989A hot air soldering station module (1 pc.)
  • Pro'sKit 9SS-900-SI soldering iron (1 pc.)
  • Soldering iron stand (1 pc.)
  • Heat gun holder (1 pc.)
  • Air nozzles (3 pcs.)
  • User manual (1 pc.)
Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Desoldering Gun
  • Non-available
Soldering Iron Power
  • 60 W
Hot Air Gun Power
  • 640 W
