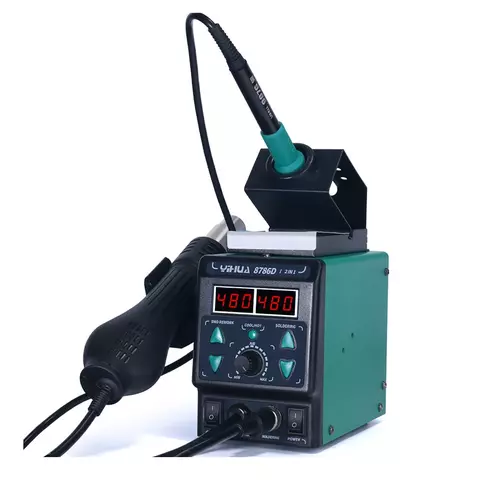

Hot Air Soldering Station YIHUA 8786D-I

id: 901979
Hot Air Soldering Station YIHUA 8786D-I
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
3 kg Warranty: 6 months
Compact hot air soldering station: the hot air gun with 100°C-480°C temperature range, the soldering iron with a 40 W power, and a 200°C-480°C temperature range.
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost
Description

YIHUA 8786D-I is a compact hot air soldering station with an double LCD. It consists of a hot air gun and a soldering iron. An air supply turbine and a heating element are installed inside the hot air gun. The 50 W soldering iron comes with a stand, tip cleaning sponge, metal shavings, and rosin. The soldering iron temperature adjustment range is 100°C-480°C, and the stability is ±2°C.

The soldering station is designed for soldering SOIC, CHIP, QFP, PLCC and SMD.

Features

  • Durable ergonomic metal body.
  • The soldering iron stand may be attached directly to the soldering station to save space on the working table.
  • Cold/hot air conversion at the flip of a button. Cold air is used to cool heated elements.
  • Digital temperature correction function.
  • Sleep function.
  • Celsius/Fahrenheit temperature display function.
  • PID temperature controller.
  • Temperature calibration.
  • ESD safe.
Read more
Description

YIHUA 8786D-I is a compact hot air soldering station with an double LCD. It consists of a hot air gun and a soldering iron. An air supply turbine and a heating element are installed inside the hot air gun. The 50 W soldering iron comes with a stand, tip cleaning sponge, metal shavings, and rosin. The soldering iron temperature adjustment range is 100°C-480°C, and the stability is ±2°C.

The soldering station is designed for soldering SOIC, CHIP, QFP, PLCC and SMD.

Features

  • Durable ergonomic metal body.
  • The soldering iron stand may be attached directly to the soldering station to save space on the working table.
  • Cold/hot air conversion at the flip of a button. Cold air is used to cool heated elements.
  • Digital temperature correction function.
  • Sleep function.
  • Celsius/Fahrenheit temperature display function.
  • PID temperature controller.
  • Temperature calibration.
  • ESD safe.

Technical Specifications

power
Power consumption 700 W
Hot air gun temperature range 100°C-480°C
Temperature stability ±2ºC
Air flow type brushless fan gentle wind
Fan air flow 120 l/min
Soldering iron power50 W
Hot air gun power ~650 W
Soldering iron temperature range 200°C-480°C
Working temperature 0~40ºC
Storage temperature/humidity -20~80ºC/35%~45%ºC
Display mode double digital LED
Dimensions 148 mm × 99 mm × 134 mm
Weight 2.5 kg

Package Contents

  • Hot Air Soldering Station YIHUA 8786D-I — 1 pc.
  • Hot Air Gun — 1 pc.
  • Hot Air Gun Nozzles (5 mm, 8 mm, 10 mm, 13 mm) — 4 pcs.
  • Soldering Iron — 1 pc.
  • Soldering Iron Stand — 1 pc.
  • Soldering Tip Cleaning Sponge — 1 pc.
  • Power Cord — 1 pc.
Specifications
Pump type
  • turbine
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Soldering Iron Power
  • 45 W
Desoldering Gun
  • Non-available
Hot Air Gun Power
  • 700 W
