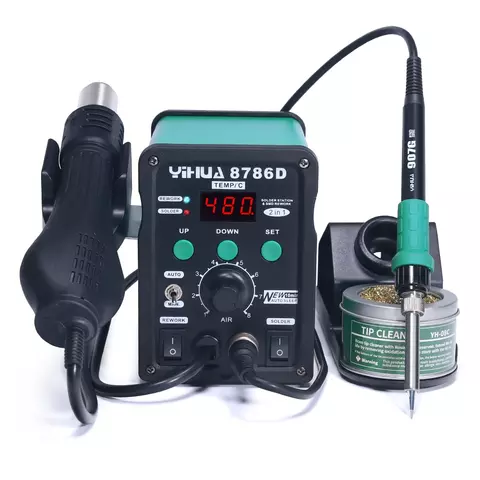

Hot Air Soldering Station YIHUA 8786D

id: 901980
3 kg Warranty: 6 month (s)
Compact turbine hot air soldering station equipped with a hot air gun, soldering iron, and digital LCD. Power: 700 W.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

YIHUA 8786D is a compact turbine hot air soldering station equipped with a hot air gun, a soldering iron, and a digital LCD. The station has a PID controller for real-time temperature adjusting and monitoring. Besides, the automatic temperature correction function provides instant temperature compensation and minimal deviations.

Features

  • Microcomputer control, warming-up quickly.
  • Airflow adjustment function.
  • Temperature PID controller.
  • Three hot air gun nozzles included.
  • The ESD-safe design prevents static electricity and current leakage.
  • Sleep mode (enabled after 10 minutes of inactivity and at temperatures below 200 °C).
  • Celsius/Fahrenheit temperature display.
  • Cold/hot air conversion function.

Technical Specifications

power
Power consumption 700 W
Soldering iron power 50 W
Hot air gun power 650 W
Hot air gun temperature range 100°C-480°C
Temperature stability ±2ºC
Air flow type brushless fan gentle wind
Fan air flow 120 l/min
Soldering iron power40 W
Soldering iron temperature range 200°C-480°C
Working temperature 0~40ºC
Storage temperature/humidity -20~80ºC/35%~45%ºC
Display mode double digital LED
Dimensions 148 mm × 99 mm × 134 mm
Weight 2.5 kg

Package Contents

  • Hot Air Soldering Station YIHUA 8786D — 1 pc.
  • Hot Air Gun — 1 pc.
  • Power Cord — 1 pc.
  • Soldering Iron — 1 pc.
  • Hot Air Gun Nozzles — 3 pcs.
  • Soldering Iron Stand — 1 pc.
  • Soldering Tip Cleaning Sponge — 1 pc.
  • User Manual — 1 pc.
Specifications
Pump type
  • turbine
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Soldering Iron Power
  • 45 W
Desoldering Gun
  • Non-available
Hot Air Gun Power
  • 700 W
