Overview
9.2 kg 220 V Warranty: 12 months

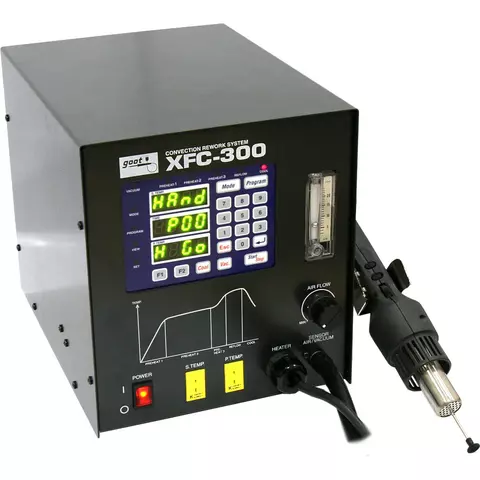

Goot XFC-300 hot air station allows easy mounting and removal of SMD components including BGA and CSP. 19 programmable operating profiles with 5 temperature and time zones each. 3 operating modes (Standard, Auto and Manual).
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

Goot XFC-300 - hot air station allows easy mounting and removal of SMD components including BGA and CSP. For higher operating efficiency use Goot XPR-600 preheater.

Features

  • Easy to use and ergonomic soldering station.
  • Compatible with various types of nozzles (not included in the package).
  • Air flowmeter.
  • Built-in vacuum tweezers.
  • ESD safe.
  • Compatible with Goot XFS-1 foot switch (not included in the package).
  • 19 programmable operating profiles with 5 temperature and time zones each.
  • 3 operating modes (Standard, Auto and Manual).
  • Instant cooling down of any zone by pressing the "COOL" key.

Technical Specification

Main Unit
Power supply 220 V
Dimensions, mm 265 × 200 × 230
Weight 7.6 kg
Hot Air Gun
Power consumption 400 to 450 W
Temperature range 50 to 550 °C
Air flow speed 5 to 25 l/min (max)

Application

  • Mounting and removal of SMD components (BGA,CSP).

Package Content

  • Goot XFC-300 main unit
  • Hot air gun with built-in vacuum twezers
  • Power cord (1.2 m)
  • User manual
Read more
Description

Goot XFC-300 - hot air station allows easy mounting and removal of SMD components including BGA and CSP. For higher operating efficiency use Goot XPR-600 preheater.

Features

  • Easy to use and ergonomic soldering station.
  • Compatible with various types of nozzles (not included in the package).
  • Air flowmeter.
  • Built-in vacuum tweezers.
  • ESD safe.
  • Compatible with Goot XFS-1 foot switch (not included in the package).
  • 19 programmable operating profiles with 5 temperature and time zones each.
  • 3 operating modes (Standard, Auto and Manual).
  • Instant cooling down of any zone by pressing the "COOL" key.

Technical Specification

Main Unit
Power supply 220 V
Dimensions, mm 265 × 200 × 230
Weight 7.6 kg
Hot Air Gun
Power consumption 400 to 450 W
Temperature range 50 to 550 °C
Air flow speed 5 to 25 l/min (max)

Application

  • Mounting and removal of SMD components (BGA,CSP).

Package Content

  • Goot XFC-300 main unit
  • Hot air gun with built-in vacuum twezers
  • Power cord (1.2 m)
  • User manual
Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Soldering Iron Power
  • No soldering iron
Hot Air Gun Power
  • 450 W
Desoldering Gun
  • Non-available
