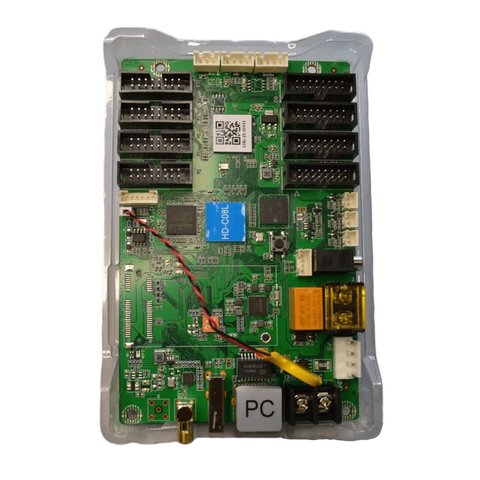

Huidu HD-C08L LED Display Module Control Card (640×320, 8×HUB75E, with Wi-Fi Module)
Overview
Description
Huidu HD-C08L is a powerful LED module control card designed to run full-color LED displays in asynchronous mode. Built-in memory and 8 network interfaces ensure easy and stable operation with LED screens. It is a perfect solution for medium-sized modules requiring reliable data transmission.
Connectivity with the LED screen is via LAN/Wi-Fi. The controller supports the display of video (up to 2 channels of 1080P simultaneously), images in various formats, GIF animations, text, WPS documents, tables, clocks, timers, and other content. Connecting USB drives can provide a virtually unlimited storage capacity.
Intuitive software makes it easy to set up and control the screen, even for users without technical expertise. With the Huidu HD-C08L LED display module contol card, you can launch your advertising in minutes. Access to the XiaoHui Cloud platform ensures an effortless remote cluster management via the Internet.
Huidu HD-C08L is especially suitable for use in the commercial sector: LED screens for indoor advertising, announcement boards for shopping malls, banks, clinics, offices, or transportation, high-resolution advertising and podium signs, LED displays for sale outlets.
Benefits
- Asynchronous control system, which means doesn'o't require a constant connection to a PC as a video signal source
- Wi-Fi connectivity supporting wireless control via the LedArt mobile app, including Wi-Fi AP / Wi-Fi STA
- A built-in internal memory enabling content storage and smooth playback
- Flexible scanning: from static mode to 1/64
- Testing function to check image quality and backlight uniformity
- Ability to upload files from a flash drive
- Compatibility with a wide range of HD multimedia players and video processors
- Best choice for most LED modules thanks to 8 HUB75E connectors
- A warranty perod of 1 year
Download Huidu HD-C08L Technical Data Sheet
Download Huidu HD-C08L User Manual
Technical Specificatons
Controllable LED area |
640 × 320 pixels |
| Type | Internal/external (only if adequately protected) |
Built-in memory |
4 GB (2 GB available) |
Supported modules |
Full-color |
Supported formats |
Video: AVI, WMV, MPG, RM/RMVB, VOB, MP4, FLV. etc. |
| Images: BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM, etc. | |
| Text: single/multi-line, static, word animations, WPS | |
| Audio | MPEG-1 Layer III, AAC, etc. |
| Number of HUB ports | 8 × HUB75E |
Connectivity |
LAN / Wi-Fi / USB |
Voltage |
5 V DC |
Power consumption |
8 W |
Storage/operating temperature |
-40°C ~ +80°C |
Relative humidity |
0% ~ 80% (non-condensing) |
| Dimensions | 142 × 91.2 mm |
| Weight | 0.14 kg |
Package Contents
- Huidu HD-C08L LED display module control card — 1 pc.
- Wi-Fi antenna — 1 pc.
