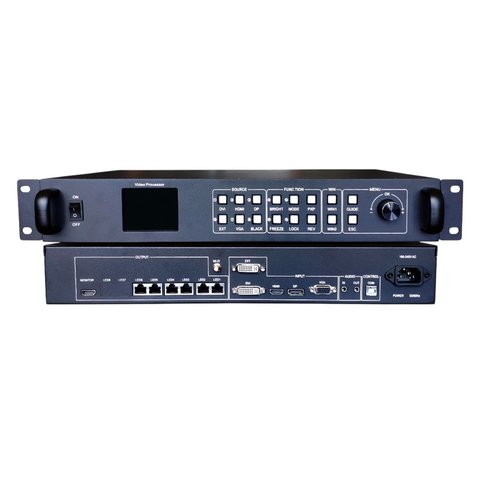

Huidu HD-VP620, DVI HDMI VGA Video Processor for LED Screens
id: 897770
Huidu HD-VP620, DVI HDMI VGA Video Processor for LED Screens
Overview
Description
Delivery
Payment
Warranty
USD 500.00
Overview
New
2.5 kg
Availability in stock:
CN
Warranty: 12 months 2-in-1 video processor with 4K video signal support, 5 inputs (HDMI, DP, DVI, VGA, EXT), 6 outputs, PIP/POP support. Max. screen dimensions: width 8000 pixels, height 3840 pixels. Read more
USD 500.00
Buy wholesale and save
Note! This item is shipped within 7 working days.
Description
Huidu HD-VP620 is a powerful two-in-one LED video processor combining the functionality of a single-picture video processor and a sending card. The device supports 4K input signals, has a high load capacity, and allows a double-window (PIP/POP) video display.
Features
- An integrated solution: the device combines video processing and sending card features
- Load capacity: 6 GB network port output, with a total resolution up to 3.9 million points
- Maximum screen dimensions: width up to 8000 pixels, height up to 3840 pixels
- Multi-channel input: 5 high-definition digital and analog video inputs, supporting resolutions up to 4K (3840×2160 pixels) at a refresh rate of 60 Hz on each channel
- Display modes: PIP (picture-in-picture) and POP (picture-out-of-picture) support
- Quick switching between any input channels
- PC-free setup: the connection setting feature allows connection parameters to be configured directly via buttons on the front panel
- Convenient control via panel buttons, USB, or Wi-Fi (in mobile app)
Technical Specifications
Input Interfaces |
||
|---|---|---|
| DVI | Interface form: DVI-I socket Signal standard: DVI 1.0 Resolution: VESA standard, PC to 1920×1080, HD to 1080p |
|
| HDMI | Interface form: HDMI-A Signal standard: HDMI 2.0 (backward compatible) Resolution: VESA standard, ≤3840×2160 at 60 Hz |
|
| DP | Interface form: DP Signal standard: DP 1.2 (backward compatible) Resolution: VESA standard, ≤3840×2160 at 60 Hz |
|
| VGA | Interface form: DB15 Signal standard: R, G, B, Hsync, Vsync: 0–1 Vpp ± 3 dB Resolution: VESA standard, ≤1920×1080p at 60 Hz |
|
| EXT | DVI or SDI (default DVI) | |
| AUDIO IN | Input x1, 3.5 mm audio port | |
| Output Interfaces | ||
| Network outputs | 6-channel output (RJ45) for connection to receiver cards Total resolution: 5.2 mil pixels Max. width: 8000 pixels, max. height: 3840 pixels |
|
| MONITOR | HDMI interface for synchronous monitoring on an external LCD display (1920×1080 at 60 Hz) | |
| AUDIO OUT | Output x1, 3.5 mm audio port | |
| Controls & Power Supply | ||
| USB (Type B) port | PC connection, debugging the parameters of the sending and receiving cards, program upgrades through HDSet software | |
| Wi-Fi | Support of mobile app for sending card, receiving card parameter debugging, program upgrade, etc. (in development) | |
| Power interface | 100–240 V ~ 50/60 HZ | |
| Total power | ≤ 75 W | |
| Physical Specifications | ||
| Weight | ≤ 3.6 kg | |
| Dimensions | Unit dimensions: 482 mm (length) × 302.8 mm (width) × 65.5 mm (height) | |
| Case type | 1.5U standard industrial chassis | |
Downloads
Download Huidu HD-VP620 User's Manual
