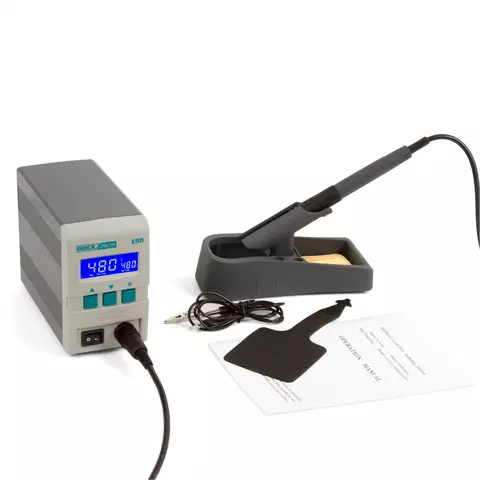

Induction Lead-Free Soldering Station QUICK 202D ESD

No results found for your request.
ID: 838063 3 kg
Availability in stock: HK
Warranty: 6 month (s)
Bestseller

USD 122.00
In stock
Add to cart
+ Gift

Powerful (90 W) ESD safe soldering station with LCD display, temperature adjustment from 80 °C to 480 °C and temperature stability of ±2 °C.
  • Overview
  • Specifications
  • Delivery
  • Payment
  • Warranty

Overview

QUICK 202D ESD ESD is a powerful 90 W induction soldering station for lead-free soldering, designed for mounting and dismounting of SMD components, and soldering of electronic components using refractory lead-free solders. The station is equipped with an LCD display, which allows for the temperature adjustment in the range from 80 °C to 480 °C, and features a temperature stabilization function with temperature deviation of only ± 2 °C.

QUICK 202D is a professional soldering station for all kinds of soldering work and can be used in both, electronics or home appliance repair centers and manufacturing or industry.

Unlike the traditional soldering stations, QUICK 202D is based on a reliable induction heating technology. It does not have a regular heating element. The electromagnetic field created by the inductor generates eddy currents that heat the surface of the soldering tip. Due to this, the soldering tips of the station can reach the set temperature almost immediately.

Safety comes first! The QUICK 202D soldering station features antistatic protection, allowing you to work with electrostatic-sensitive elements, as well as the protection from overheating and overvoltage. This makes the station not only convenient but also safe to use.

If you are a real professional in what you do, the QUICK 202D soldering station will become your favorite instrument and increase the efficiency and quality of your work. If you are a newbie, this powerful and effective soldering device will provide excellent opportunities for development, and become your reliable assistant.

Features

  • Switching power supply which can prevent the damaging of the unit.
  • PID temperature control.
  • Fast heating and rapid thermal recovery.
  • Temperature locking function.
  • Manual temperature calibration.
  • Auto sleeping and auto shut-off time.
  • Compatible with various types of soldering iron tips.
  • ESD safe design.

Technical Specifications

Power consumption 90 W
Output voltage DC 48 V, 400 KHz
Temperature range 80 °C - 480 °C
Auto sleeping time 0-99 min (adjustable)
Auto shut-off time 0-99 min (adjustable)
Sleeping temperature range 50 °C - 250 °C
Ambient temperature (max) 40 °C
Temperature stability ±2 °C (stationary air, no load)
Soldering iron power consumption 80 W
Heating element electromagnetic element
Dimensions 155 × 78 × 120 mm
Weight (without power cord) 1.0 kg

Package Contents

  • QUICK 202D ESD soldering station main unit (1 pc.)
  • Soldering iron (1 pc.)
  • Soldering iron stand (1 pc.)
  • Power cord (1 pc.)

Compatible soldering tips

Quick 303-1C Quick 303-1C
Quick 303-2C Quick 303-2C
Quick 303-3C Quick 303-3C
Quick 303-1.2D Quick 303-1.2D
Quick 303-1.6D Quick 303-1.6D
Quick 303-2.4D Quick 303-2.4D
Quick 303-3.2D Quick 303-3.2D
Quick 303-B Quick 303-B
Quick 303-2B Quick 303-2B
Quick 303-I Quick 303-I
Quick 303-K Quick 303-K
Quick 303-SK Quick 303-SK

Specifications

Heater type
  • induction
Control type
  • digital
Soldering iron voltage
  • 48 V
Power
  • 90 W
