Overview
Description

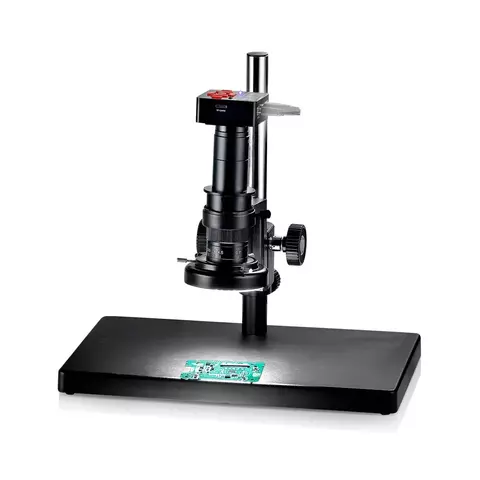

Supereyes T006 is an industrial USB desktop microscope with an HDMI/USB module included. Equipped with a parfocal continuous zoom with stereoscopic optical lens barrel. Magnification is up to 640X, upper LED backlight. Comes with a metal adjustable stand.
Features
- HDMI/USB module included.
- Magnification up to 640X, 16 MP sensor.
- Continuous zoom adjustment.
- Photos and videos recording support.
- TF card support.
- Infrared remote control.
- Easy to use software.
- LED upper backlit.
- Full metallic stand, which can be adjusted up and down with precision.
Technical Specifications
| Magnification | 7-640X |
| Sensor | 16 Mp |
| Backlight | upper adjustable LED ring |
| Image resolution | 1920 × 1080 |
| Power supply | 12 V |
| Frame rate | 60 f/s |
| Video output | HDMI/USB |
| Color model | RGB, adjustable |
| Contrast/White Balance | manual |
| Exposition | auto/manual |
| Image capture and video recording | support |
| Remote control | support |
| TF card storage | support |
| Sensor dimensions | 11 mm |
| Module dimensions | 68 × 68 × 40 mm |
| Stand dimensions | 255 × 375 × 18 mm, total height 240 mm |
| Zoom | |
|---|---|
| Eyepiece | 0.5X multiplicity |
| Objective lens | 0.7-4.5X multiplicity | C port diameter | 25 mm |
| Maximum diameter | 50 mm |
| Length | 168 mm |
Package Contents
- Industrial USB Microscope Supereyes T006 — 1 pc.
- Metal Stand — 1 pc.
- HDMI/USB Module — 1 pc.
- Infrared Remote Control — 1 pc.
- User Manual — 1 pc.
