Multi-function semi-automatic infrared BGA rework system with PC synchronization and ceramic emitter for repairing PCBs of Xbox, PS3, laptops, PC motherboards, etc.
Availability in stock:
HK
ID: 841539 21 kg 220
Infrared BGA Rework Station ACHI IR-6500 + Reballing Accessories Kit
id: 846595
Infrared BGA Rework Station ACHI IR-6500 + Reballing Accessories Kit
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 690.00
Overview
19 kg 220 V Warranty: 6 months

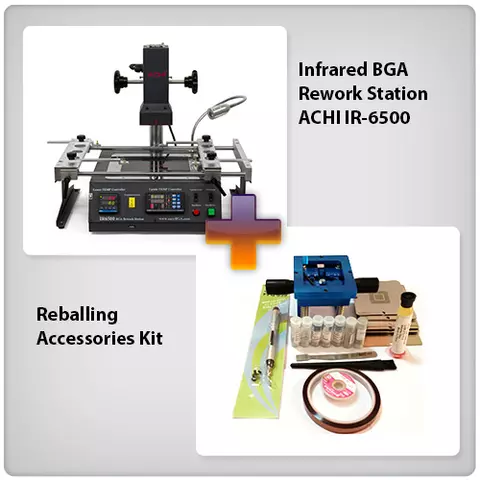

Multi-function semi-automatic infrared BGA rework system with PC synchronization and ceramic emitter for repairing PCBs of Xbox, PS3, laptops, PC motherboards, etc. + reballing accessories kit including a reballing station, 10 BGA stencils and solder balls. Read more
You may also like
Description
ACHI IR-6500 is a multi-function semi-automatic infrared soldering system with PC synchronization and ceramic emitter for reworking CBGA, CCGA, CSP, QFN, MLF, PGA and all the green epoxy type μBGA. Different temperature profiles give the opportunity to choose necessary soldering mode for different solders, including the lead-free ones.
Features
- Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
- Perfect for soldering and reworking of CBGA, CCGA, CSP, QFN, MLF, PGA and all the green epoxy type μBGA.
- Applicable for both lead-containing and lead-free soldering.
- Uses advanced dark infrared technology.
- Uses advanced OMEGA K-type thermocouple and the temperature detection is much more accurate.
- Technology of closed-loop temperature control ensures accurate temperature process and even heat distribution.
- Desoldering process lasts for about 5 minutes.
- The max temperature is up to 400 °C.
- Can be connected to a computer or notebook with USB interface and can be controlled by the IRSOFT software.
- Can set up 8 rising temperature segments and 8 constant temperature segments to control.
- Can store 10 groups of temperature profiles at one time.
- Comes with manual and video demonstration CD.
Manuals
Download ACHI IR-6500 User Guide
Technical Specifications
| Heating | |
|---|---|
| Upper heater type | IR |
| Upper heater size | 80 mm × 80 mm |
| Upper heater consumption | 400 W |
| Bottom heater type | IR |
| Bottom heater size | 180 mm × 180 mm |
| Bottom heater consumption | 800 W |
| Total power | 1200 W |
| Upper heater temperature control | Independent temperature control, high-precision closed-loop control, precision ± 0.5%, Alarm |
| Bottom heater temperature control | Independent temperature control, high-precision closed-loop control, precision ± 0.5%, NO Alarm |
| Size of applicable chips | ≤ 70 mm ×70 mm |
| Size of applicable PCBs | ≤ 400 mm × 305 mm |
| Environmental Requirements | |
| Operation temperature | 15 ~ 45 °C |
| Operation humidity | 5% to 95%, non-condensing |
| Storage temperature | –20 ~ 70 °C |
| Storage humidity | 5% to 95%, non-condensing |
| General | |
| Power supply | 220 V AC |
| Interface | USB |
| Dimensions | 475 × 480 × 420 mm |
| Weight | 15 kg |
Package Contents
ACHI IR-6500 BGA Rework Station
- ACHI IR-6500 Soldering Station – 1 pc.
- PCB table – 1 pc.
- Thermocouple with mounting – 1 pc.
- USB data cable – 1 pc.
- User manual – 1 pc.
- CD with software and demo video – 1 pc.
Reballing Accessories Kit
- Reballing station — 1 pc.
- Amtech soldering flux — 1 pc.
- Solder balls (2500 pcs/pack)
- 0.3 mm — 1 pc.
- 0.35 mm — 1 pc.
- 0.4 mm — 1 pc.
- 0.45 mm — 1 pc.
- 0.5 mm — 1 pc.
- 0.55 mm — 1 pc.
- 0.6 mm — 1 pc.
- 0.76 mm — 1 pc.
- Vacuum pick-up tool — 1 pc.
- Kapton tape — 1 pc.
- Goot CP-2015 desoldering wick — 1 pc.
- Brush — 1 pc.
- Scraper — 1 pc.
- BGA stencils — 10 pcs.
- Universal 0.3 mm
- Universal 0.35 mm
- Universal 0.4 mm
- Universal 0.45 mm
- Universal 0.5 mm
- Universal 0.55 mm
- Universal 0.6 (pitch = 1.0 mm)
- Universal 0.6 (pitch = 0.9 mm)
- Universal 0.6 (pitch = 1.1 mm)
- Universal 0.76 (pitch = 1.27 mm)
