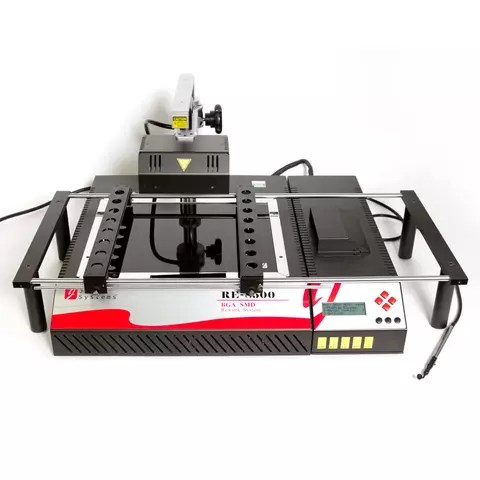

Infrared BGA Rework Station Jovy Systems RE-8500 for Repairing PS3, PS4, Xbox 360

id: 859517
220 V Warranty: 12 month (s)
All-purpose repair kit, designed specially for recovery of huge circuit plates such as motherboards of Sony PlayStation 3, Sony PlayStation 4, Xbox 360. Two lower preheaters.
USD 1480.00
Notify
when in stock
USD 1480.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

Jovy Systems RE-8500 infrared BGA rework station uses the dark medium infrared technology for lead free soldering and desoldering of any PCB component.

Features

  • Lead-free and lead compatible soldering tool
  • Safe heating for all kinds of components like SMD, BGA, CBGA, CCGA, CSP, QFN, MLF, PGA and all epoxy non-defiled µBGA etc.
  • 50 thermal settings storage
  • Large lower preheater
  • Positioning during rework process performed by means of the laser pointer on PCB
  • Reflectors for facilitating of the focusing on the upper heater heating area
  • Guaranteed even heat distribution
  • Password data protection
  • Vacuum pick-up pen
  • Dynamic PCB holder with movable axis to suit different PCB shapes
  • PC control, WINDOWS XP, VISTA and WINDOWS 7 compatible

Video Review

Youtube video

Applications

  • Complete range of rework applications in medium and large scale service centers
  • Game consoles:
    • Sony PlayStation 3
    • Sony PlayStation 4
    • Xbox 360
  • Mobile and radio systems devices repairment
  • Cellular phones, PDAs, handhelds, laptops, notebooks & motherboards repairment
  • LAN devices, network nodes and military communication equipment repairment
  • Portable medical equipment repairment

Technical Specifications

Heating power, W 3600
Maximum components size, mm 120 × 60
Top heater size, mm 60 × 120
Bottom heater size, mm 350 × 280 (two separate heating zones)
Top heater distance to PCB, mm 60
Bottom heater distance to PCB, mm 35
Temperature sensor channels 5 × K-type thermocouple (potential free)
Voltage 230 V AC
Frequency 50/60 Hz
Dimensions, mm 480 × 580 × 360

Package Contents

  • Jovy Systems RE-8500 Infrared BGA Rework Station unit (1 pc.)
  • Control box (1 pc.)
  • K-type thermo-couple (2 pcs.)
  • X-Y table (1 pc.)
  • Upper heater reflectors (4 pcs.)
  • USB cable (1 pc.)
  • Operation Manual (1 pc.)
  • CD (1 pc.)
    • Jovy® PC Suite.
    • RE-8500 Driver.
    • Microsoft .NET Framework 3.5 Redistributable Package.
    • Microsoft Visual C++ Runtime Redistributable.
    • Softcopy of the User's Manual.
    • Adobe Acrobat Reader.

Auxiliary equipment

Jovy Systems JV-PMC Soldering Process Monitoring Camera Soldering-Process-Monitoring-Camera-Jovy-Systems-JV-PMC
ACHI LP-56 BGA Reballing Kit BGA-Reballing-Kit-ACHI-LP-56
Specifications
Heater Type
  • with ceramic emitter
Upper Heater Size
  • 6x12 cm
Bottom heater size
  • 35x28 cm
Total power
  • 3600 W
Control type
  • microcontroller / PC synchronization
Upper heater type
  • ceramic
Bottom heater type
  • ceramic
Upper heater power
  • 600 W
