Infrared Preheater AOYUE Int 863
id: 844263
Infrared Preheater AOYUE Int 863
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 217.00
Overview
5.5 kg 220 V Warranty: 12 months

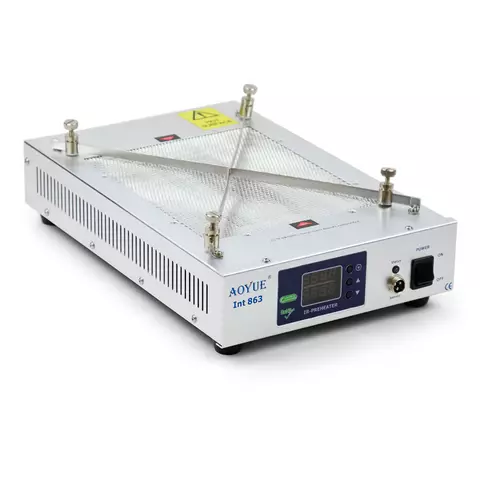

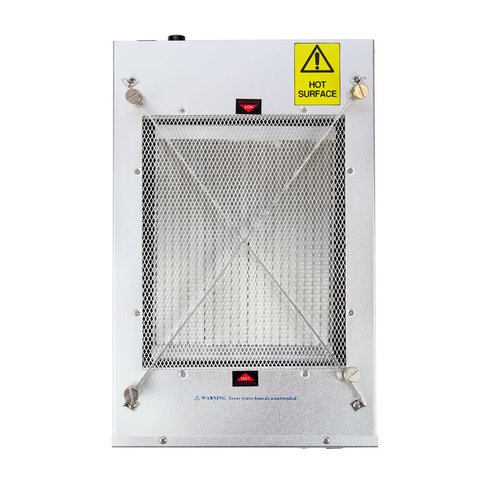

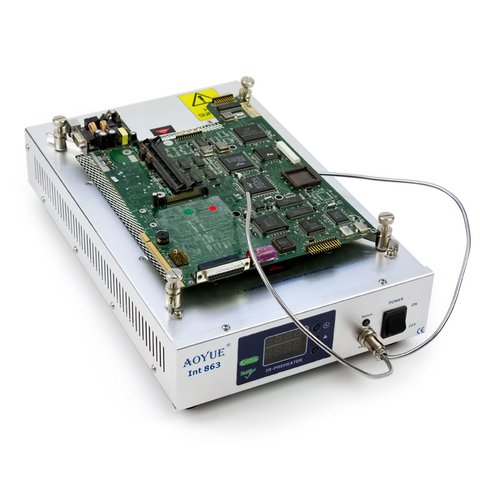

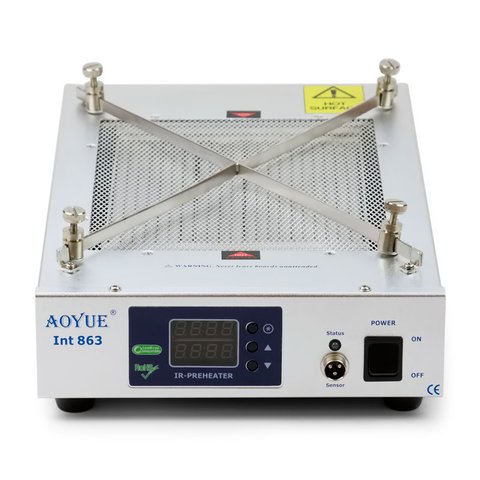

AOYUE Int 863 Infrared Preheater is designed for lead free hot air and infrared soldering, ensuring precise and safe soldering process. Read more
USD 217.00
Buy wholesale and save
Description
AOYUE Int 863 Infrared Preheater is designed for lead free hot air and infrared soldering. This infrared preheater uses advanced functions to control temperature and ensure precise and safe soldering process.
Manuals
Download AOYUE Int 863 Infrared Preheater user manual
Features
- Closed loop temperature control allows accurate temperature feedback
- Enhanced preheating area prevents warping on larger boards
- High power heating element reduces waiting time for the necessary working temeperature
- The top and bottom pre-heaters are equipped with three sensors for monitoring the temperature
- The advanced board holder fits various types of the boards
- Safe digital control system guarantees maximum performance
- The duration and temperature can be stored in six programmable reworking profiles
- The preheater is hot air and infrared top heating compatible
- Built-in overheat protection
Technical Specifications
| Model | Int 863 | Int 883 |
|---|---|---|
| Voltage input | 220 V | |
| Power consumption | 850 W | 1500 W |
| Heater type | Infrared heating | |
| Effective preheating area | 250 × 200 mm | 310 × 310 mm |
| Temperature setting | 50–400 ºC | |
| Dimensions | 450 × 260 × 80 mm | 520 × 370 × 100 mm |
| Weight | 3 kg | 5 kg |
Package ContentS
- AOYUE Int 863 Infrared Preheater
- Temperature sensor
- Power cord
- Instruction manual
Specifications
| Type |
|
| Heating area |
|
