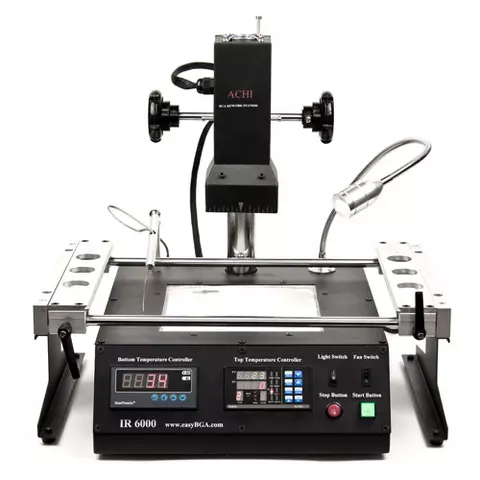

Infrared Soldering Station ACHI IR-6000

id: 822581
18.6 kg 220 V Warranty: 6 month (s)
All-purpose repair kit, designed specially for recovery of middle-sized circuit plates such as laptop motherboards.
USD 650.00
Contact
sales team
USD 650.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

ACHI IR-6000 infrared soldering station is designed for middle-sized circuit plate rework. Solder is heated with infrared radiating which lets easy soldering and desoldering of different printed board types: BGA, QFP and other. 180×180 mm bottom heater can heat a substantial area on a circuit board, thus preventing distortion from local heater. Eight different temperature profiles give the opportunity to choose necessary soldering mode for different solders, also for lead-free ones.

Features

  • Folding table with moving holders enables plate mounting and stable fixation.
  • Upper heater can be moved vertically and horizontally.
  • Soldering spot is illuminated with LED lamp incorporated in the station frame
  • Working area temperature sensor can be fixed on a stand and pointed to the desired spot with the help of flexible conductor.
  • Upper and bottom heater temperature control is performed with two contact thermocouples.
  • Sound alarm for upper heater when reaching the programmed temperature level.
  • Soldering process takes place according to programmable temperature profile.
  • ACHI IR-6000 establishes PC connection through RS-232 serial port.
  • Precise closed loop control ensures correct heating.

Technical Specifications

Heater type ceramic
Power 220 V
Upper heater type IR
Upper heater size 80 × 80 mm
Upper heater power 400 W
Bottom heater type IR
Bottom heater size 180 × 180 mm
Bottom heater power 800 W
Total power 1350 W
Upper heater temperature control independent temperature control with alarm
accuracy ±0.5%
Bottom heater temperature control independent temperature control without alarm
accuracy ±0.5%
Applicable chip size (max.) ≤ 70 × 70 mm
Applicable PCB size (max.) ≤ 400 × 305 mm
Maximum heating temperature 400 °C
Dimensions 475 × 480 × 420 mm
Weight 15 kg

Articles & Reviews

Infrared Rework Stations: Technological Benefits and ACHI Brand Review

Package Contents

  • ACHI IR-6000 Soldering Station
  • DATA-cable
  • Thermocouple with mounting
  • User manual
  • CD with software
Specifications
Upper Heater Size
  • 8x8 cm
Bottom heater size
  • 18x18 cm
Heater Type
  • with ceramic emitter
Control type
  • microcontroller / PC synchronization
Upper heater type
  • ceramic
Bottom heater type
  • ceramic
Upper heater power
  • 400 W
Total power
  • 1350 W
