Infrared Soldering Station ACHI IR-PRO-SC

No results found for your request.
ID: 820237 39.4 kg
Availability in stock: HK
Warranty: 12 month (s)
PromoBestseller

USD 1049.00
USD 830.00
You save USD 219.00
In stock
Add to cart
+ Gift

Multipurpose repair kit designed specially for recovery of huge circuit boards such as motherboards. Power: 2500 W.
  • Overview
  • Specifications
  • Video
  • Delivery
  • Payment
  • Warranty

Overview

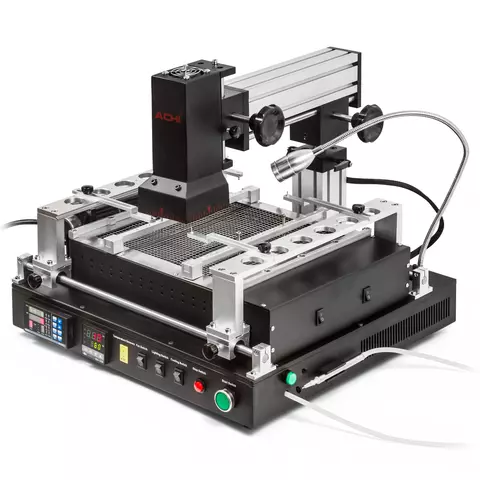

ACHI IR-PRO-SC Infrared Soldering Station

ACHI IR-PRO-SC Infrared Soldering Station - all-purpose repair kit, designed specially for recovery of huge circuit plates such as motherboards. ACHI IR-PRO-SC easily manages to (un)install chipsets on laptop motherboards, even difficult to repair ACER ones. "Three Rings of Death" - XBOX-360 problem - can be also solved with the help of ACHI IR-PRO-SC.

This infrared soldering station is used for recovering CBGA, CCGA, CSP, QFN, MLF, PGA components and other BGA-chips, as well as replacement of specific components (protective metal shield and plastic connectors).

Features

ACHI IR-PRO-SC Infrared Soldering Station Upper Heater

Upper heater level is adjustable with rotating handle. Big upper infrared heater is used for BGA-chips sized 70 mm × 70 mm.

ACHI IR-PRO-SC Infrared Soldering Station Lower Heater

Big lower infrared preheater (260 mm × 245 mm) heats circuit plate equally to prevent its thermal distortion.

The linear guide-type bracket of ACHI IR-PRO-SC Infrared Soldering Station

The linear guide-type bracket can be adjusted by rotating handle and fixes the circuit plate, preventing its destortion.

ACHI IR-PRO-SC Infrared Soldering Station Cooling Fan

Cooling fan can rapidly cool the plate.

Temperature Sensors  of ACHI IR-PRO-SC Infrared Soldering Station

Independent temperature sensors for upper and lower heaters and automatic temperature stabilization system with feedback and PID-control.

ACHI IR-PRO-SC Infrared Soldering Station PC Connection

IR-PRO-SC can be connected to PC through RS232 serial port. The soldering station can be programmed and controlled via software included in package. 10 temperature curves can be stored at the same time.

Technical Specifications

Circuit Plates Dimensions, mm 65 × 65
Lower Preheater Dimensions, mm 260 × 245
Power Consumption 2500W
Power Input 220V 50/60Hz
Dimensions, mm 475 × 480 × 420
Weight, kg 20

Video

You'll find even more video reviews in the Video tab. Go and check it out!

Articles and Reviews

Infrared Rework Stations: Technological Benefits and ACHI Brand Review

Package Contents

  • ACHI IR-PRO-SC Infrared Soldering Station
  • Data cable
  • Adhesive reflective foil
  • Vacuum pick-up tool
  • Spare heating elements
  • User manual
  • CD with demonstration video

Specifications

Total power
  • 2500 W
Upper heater power
  • 400 W
Upper heater type
  • ceramic
Bottom heater type
  • ceramic
Bottom heater size
  • 26x24 cm
Control type
  • microcontroller / PC synchronization
