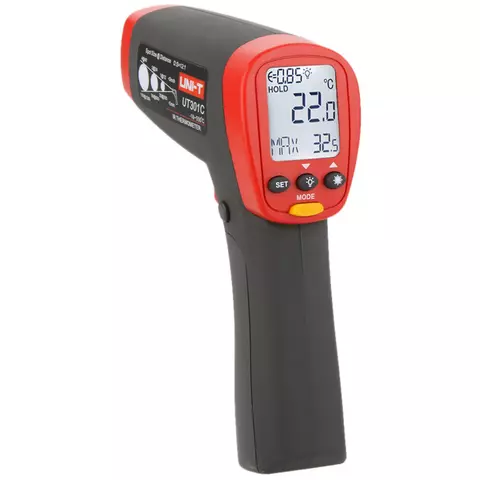

Infrared Thermometer UNI-T UT301C

id: 845473
1.95 kg Warranty: 24 month (s)
Infrared pyrometer for surface temperature measurements within the range from –18ºC to 550ºC. Data Hold, Max/Min/Dif/Avg, ºC/ºF selection.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

UNI-T UT301C infrared thermometer for non-contact temperature measurements is fast, efficient and easy to use when checking starters, fuses, enclosed relays, bearings, belts and sheaves. IR pyrometer is capable of measuring temperatures from -18 °C to 550 °C.

This infrared ihermometer is NOT a medical device. However, you can use it to measure a person’s body temperature. To do this, you need to select empirically and set the emission factor in the settings (it's in the range 0.6-0.9 for the human body).

You should always maintain safety and security while working:

  • make sure the laser beam don't get into your eyes;
  • don't let children play with the device;
  • don't use the device near surfaces that could reflect the laser beam into anyone's eyes.

Features

  • Temperature range –18 ºC ~ 550 ºC.
  • Electricity cut off memory.
  • Laser switch.
  • Search option.
  • Temperature Data Hold function.
  • ºC/ºF selection.
  • Max/Min measurements.
  • Dif/Avg measurements.
  • Tripod mount.
  • Sleep mode.
  • Low battery indication.

Technical Specifications

Display LCD with backlight, 32 × 29 mm
Temperature range –18 ºC ~ 550 ºC
accuracy ±1.8ºC or ±2%
resolution 0.1
Repeatability ±0.5˚C or ±0.5%
Distance to spot size 12:1
Laser power wavelength 630-670 nm
Power 9 V battery (6F22)
Dimensions (H × W × D) 169 × 138 × 53 mm
Weight 270 g

Package Contents

  • Thermometer UNI-T UT301C — 1 pc.
  • Battery — 1 pc.
  • Manual — 1 pc.
Specifications
Max. temperature
  • up to 550 °C
Optical resolution
  • D:S 12:1
Regulated compensation factor
  • yes
Min. temperature
  • from -18 °C
